Engine Coolant Temperature Sensor: Removal

Disconnect the ground cable from battery.

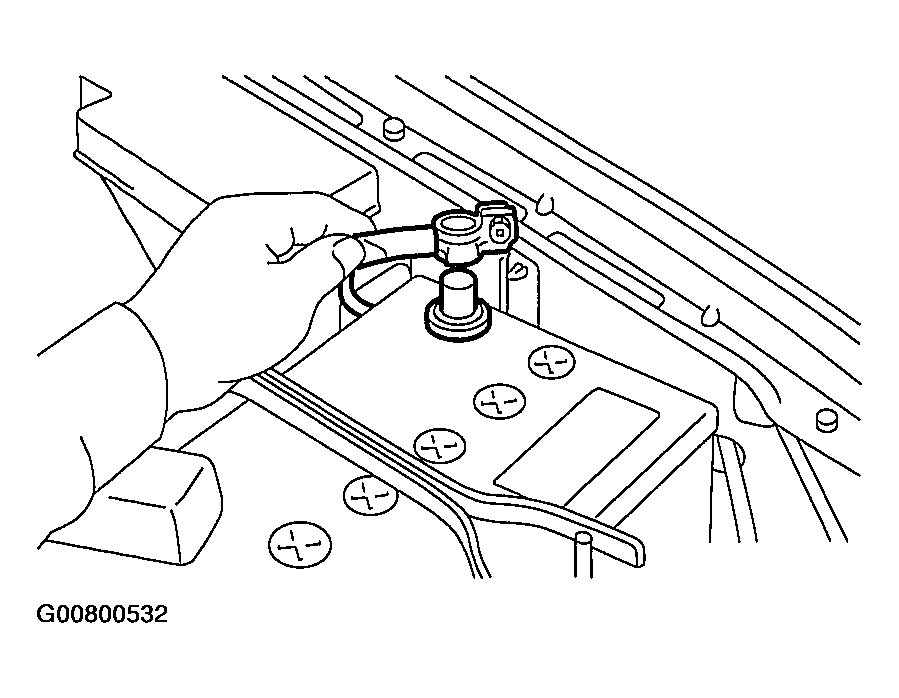

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct and air cleaner assembly.
< Ref. to REMOVAL , Air Intake Duct. >

< Ref. to REMOVAL , Air Cleaner Case. >
Disconnect the connector from engine coolant temperature sensor.

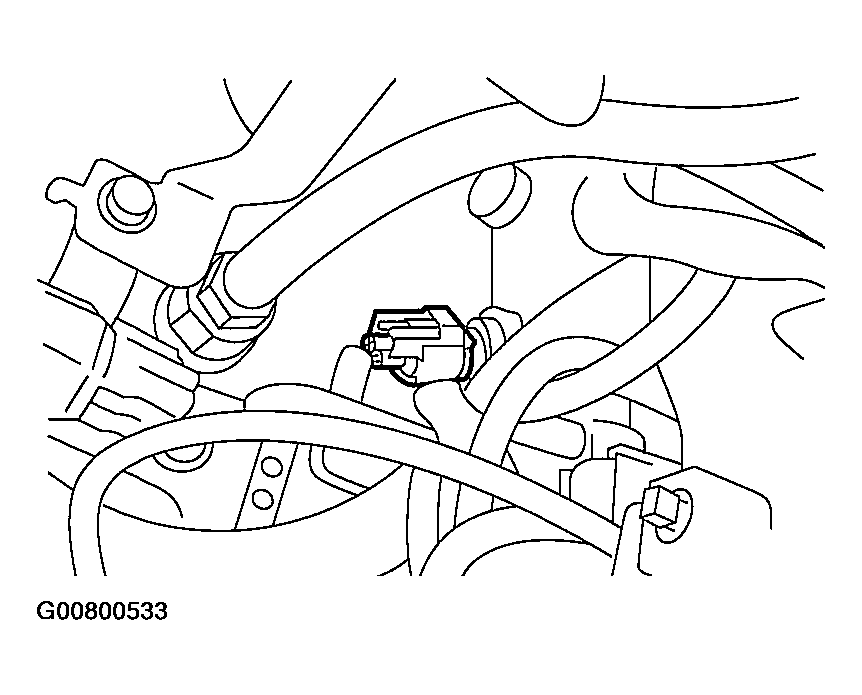

Fig 2: Disconnecting Connector From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine coolant temperature sensor.
