Lateral G Sensor: Removal

  1. Disconnect the ground cable from battery.

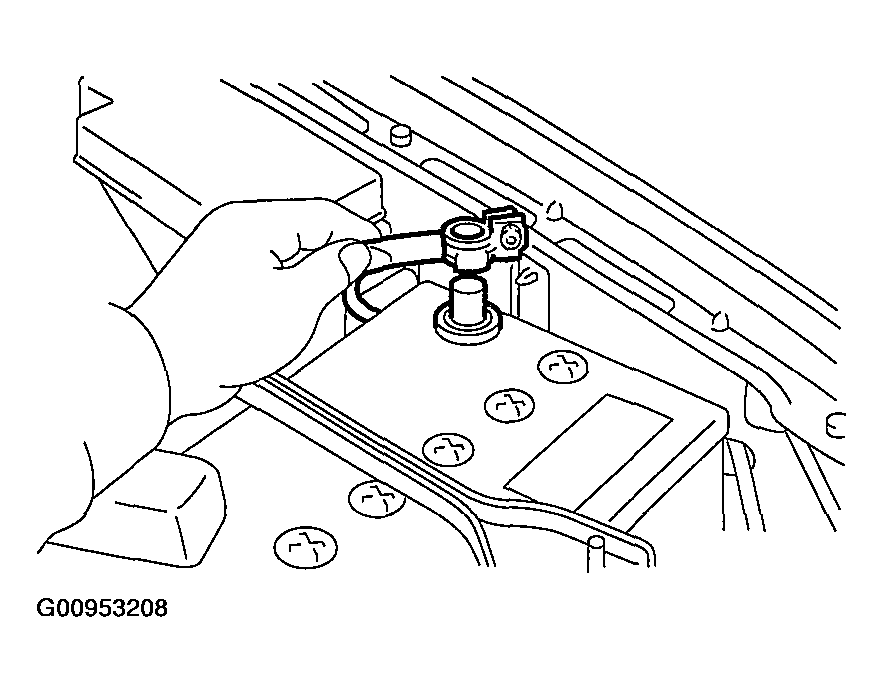

    Fig 1: Disconnecting Ground Cable From Battery
    G00953208Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the console cover.

    < Ref. to REMOVAL .>

  3. Disconnect the connector from lateral G sensor.
  4. Remove the lateral G sensor from vehicle.
CAUTION: Do not drop or bump the lateral G sensor.
Fig 2: Removing Lateral G Sensor
G00953209Courtesy of SUBARU OF AMERICA, INC.
