ABS Control Module and Hydraulic Control Unit (ABS CM & H/U): Inspection: Notes

  1. Check the connected and fixed condition of connector.
  2. Check specifications of the mark with ABSCM&H/U.
    Fig 1: Mark Specifications Chart
    G00953179Courtesy of SUBARU OF AMERICA, INC.

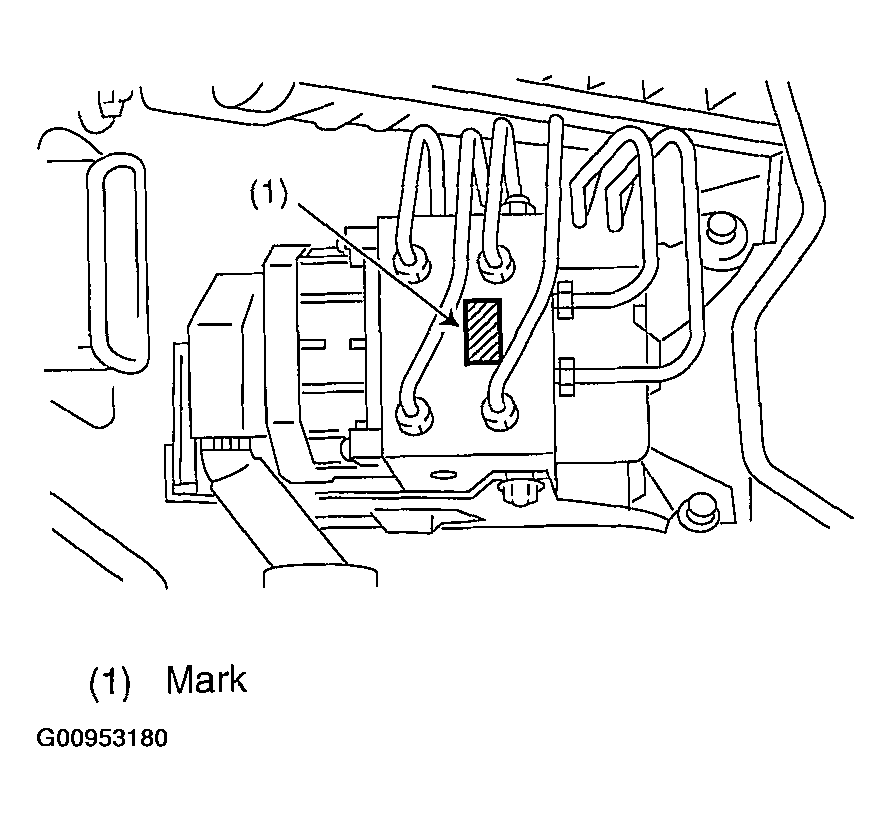

    Fig 2: Locating Mark On Bracket
    G00953180Courtesy of SUBARU OF AMERICA, INC.
