Center Differential Carrier: Installation

  1. Install the center differential assembly with the shim(s).
    NOTE: Insert the center differential assembly and shim(s) completely into the bearing shoulder bottom.

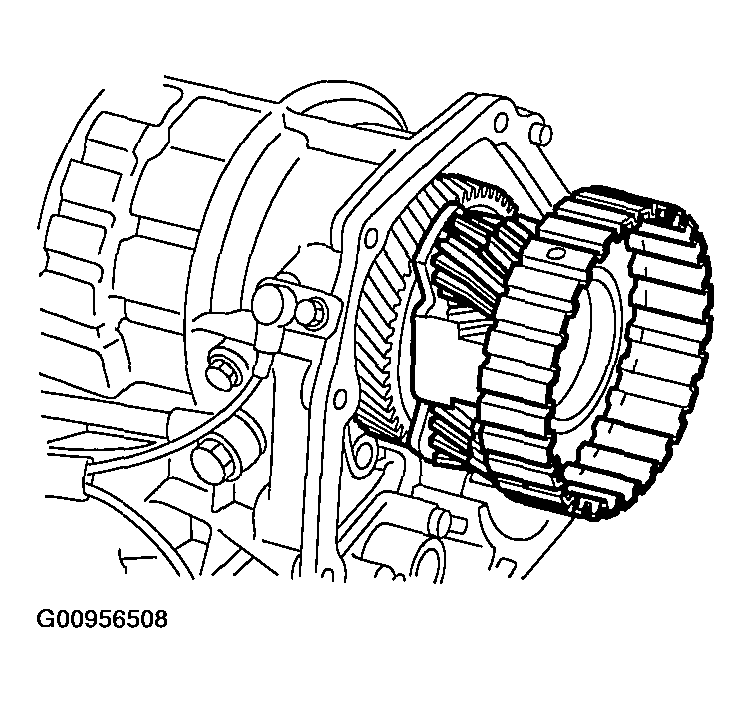

    Fig 1: Installing Center Differential Assembly With Shim
    G00956508Courtesy of SUBARU OF AMERICA, INC.
  2. Insert the rear driveshaft. < Ref. to INSTALLATION <-- , Rear Drive Shaft -->.>
  3. Connect the transmission case and extension case, and install the rear wheel speed sensor. < Ref. to INSTALLATION <-- , Extension Case -->.>
  4. Install the transmission assembly onto vehicle.

    < Ref. to INSTALLATION <-- , Automatic Transmission Assembly -->.>
