Transmission Case Assembly

Drive pinion shim adjustment

1. Hypoid gear backlash: 0.13 - 0.18 mm (0.0051 - 0.0071 in)

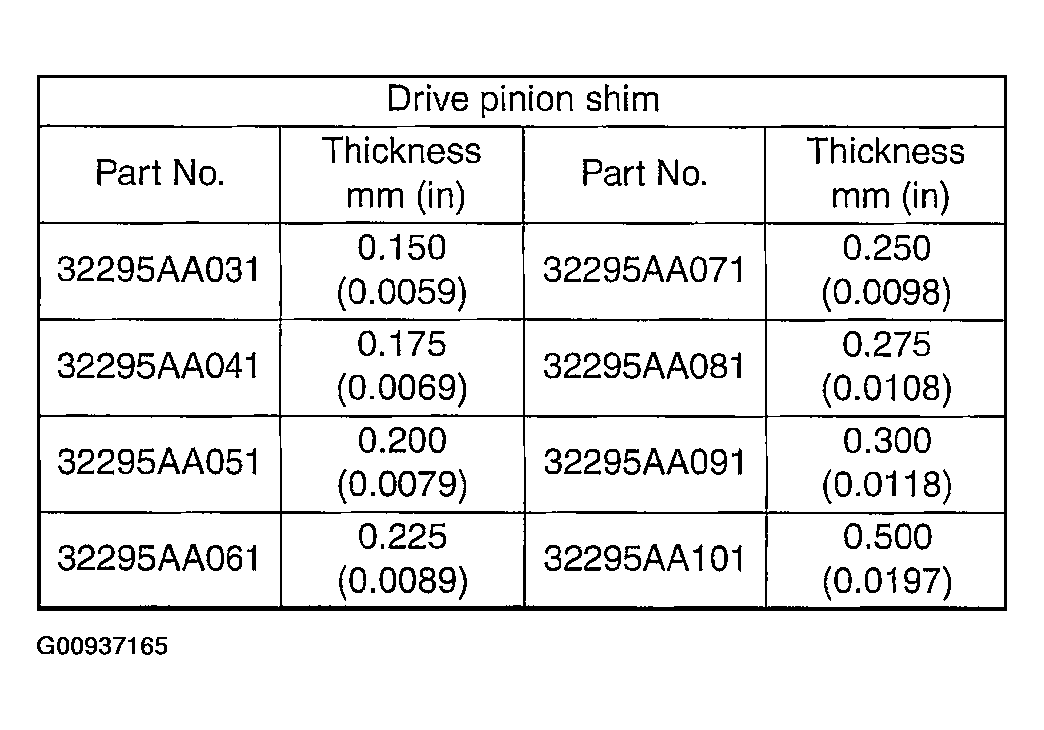

Fig 1: Drive Pinion Shim Reference Chart

Courtesy of SUBARU OF AMERICA, INC.

Selection of main shaft rear plate

Fig 2: Main Shaft Rear Plate Reference

Courtesy of SUBARU OF AMERICA, INC.
