Front Differential
Front Differential
Bevel gear to pinion backlash: 0.13 - 0.18 mm (0.0051 - 0.0071 in)

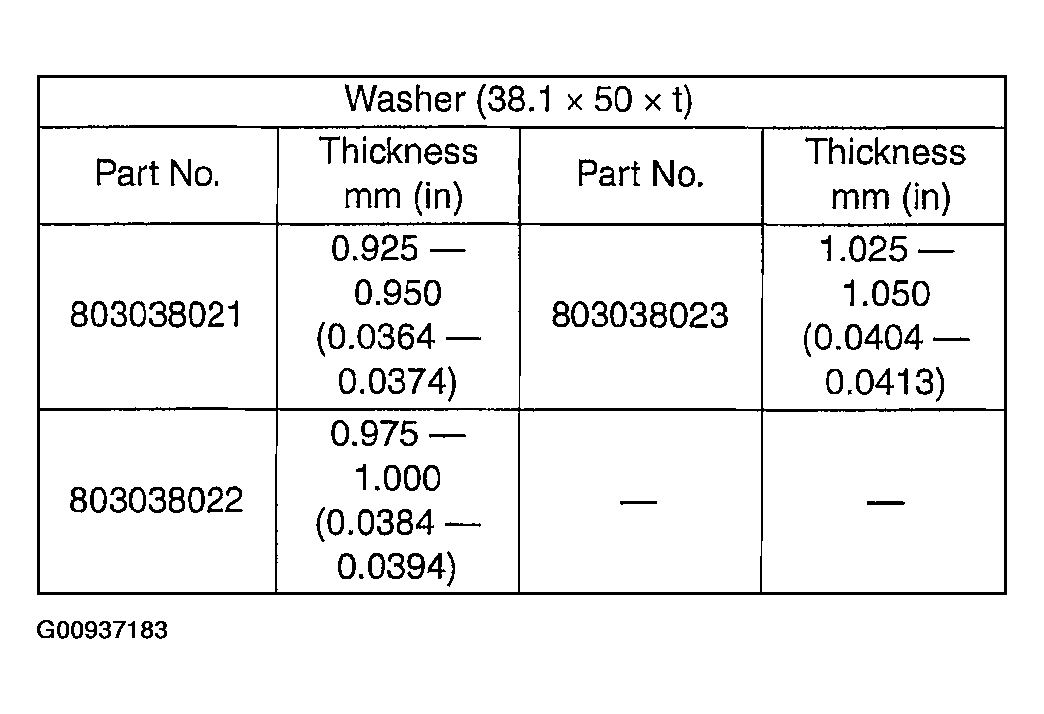

Fig 1: Washer Reference Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
