Extension Assembly

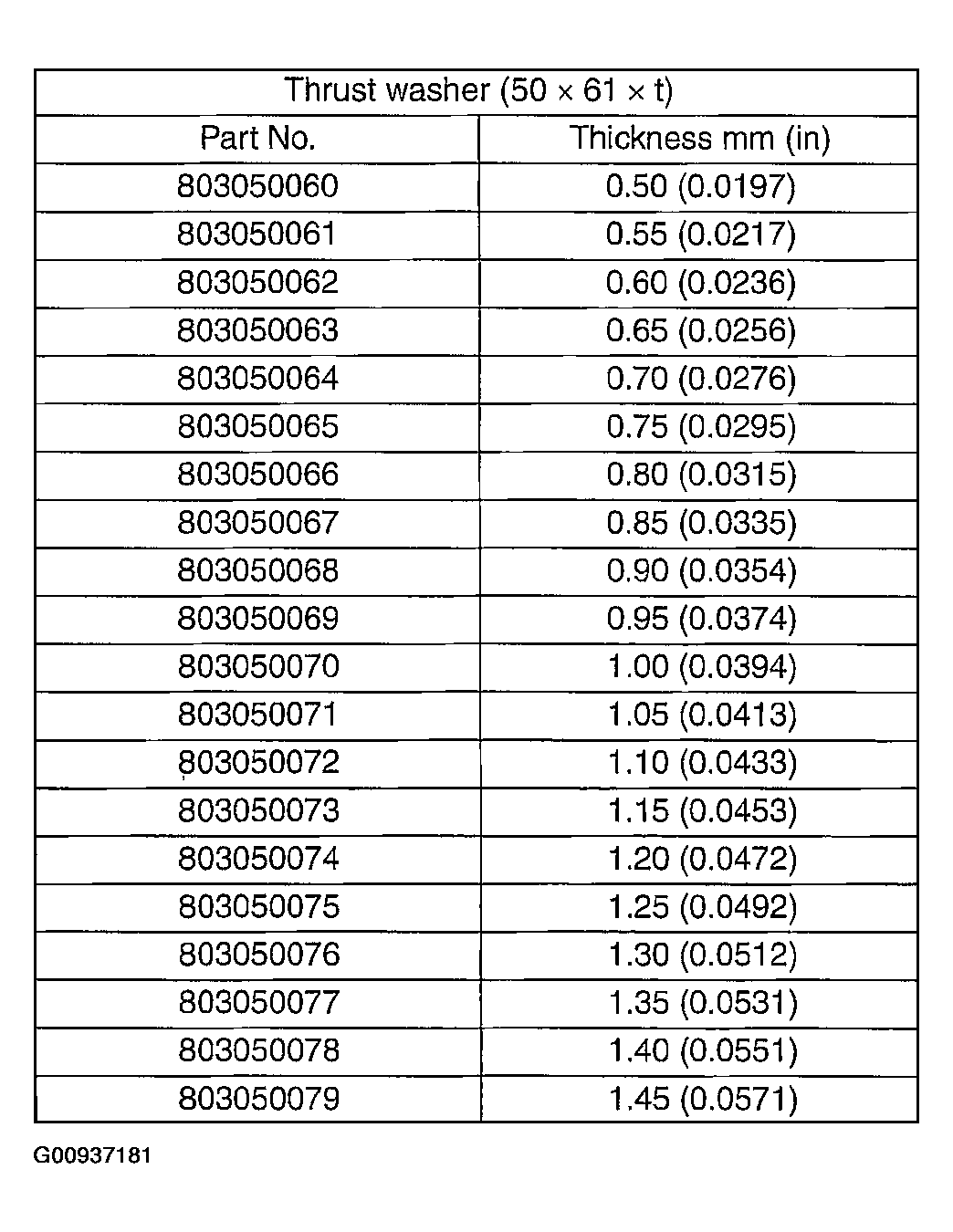

Thrust washer (50 x 61 x t) to taper roller bearing table outer race side clearance: 0.2 - 0.3 mm (0.0008 - 0.012 in)

Fig 1: Thrust Washer Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

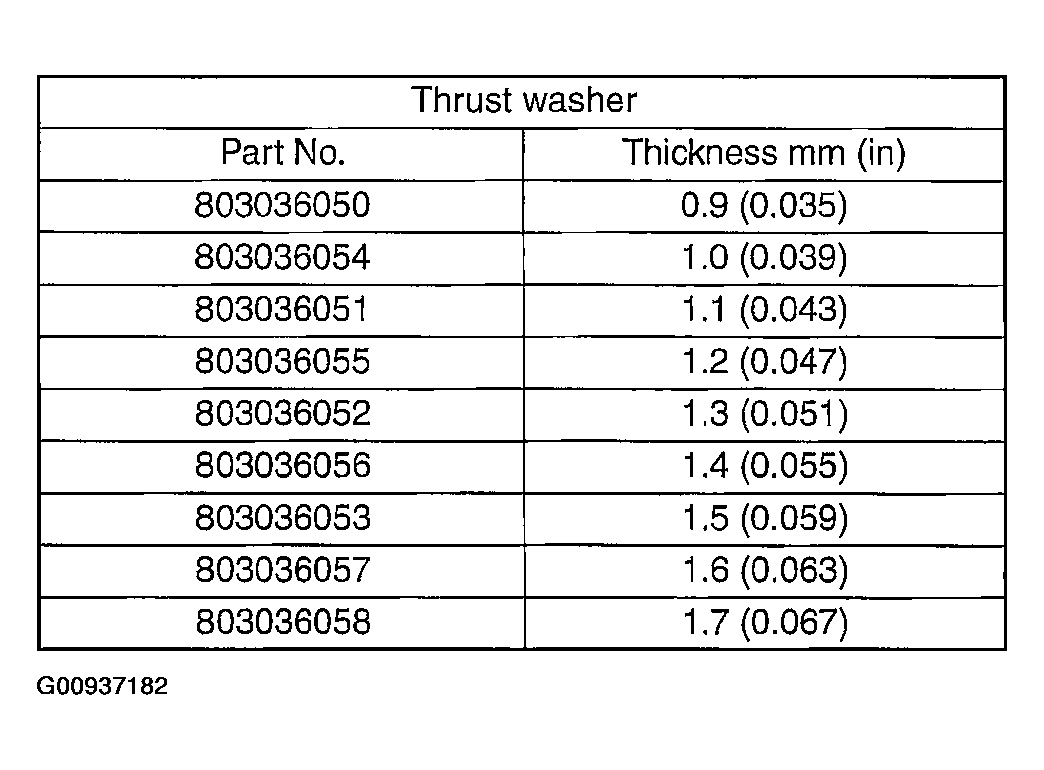

Thrust washer to center differential side clearance: 0.15 - 0.35 mm (0.0059 - 0.0138 in)

Fig 2: Thrust Washer Specification Chart

Courtesy of SUBARU OF AMERICA, INC.
