Transmission Case
Transmission Case

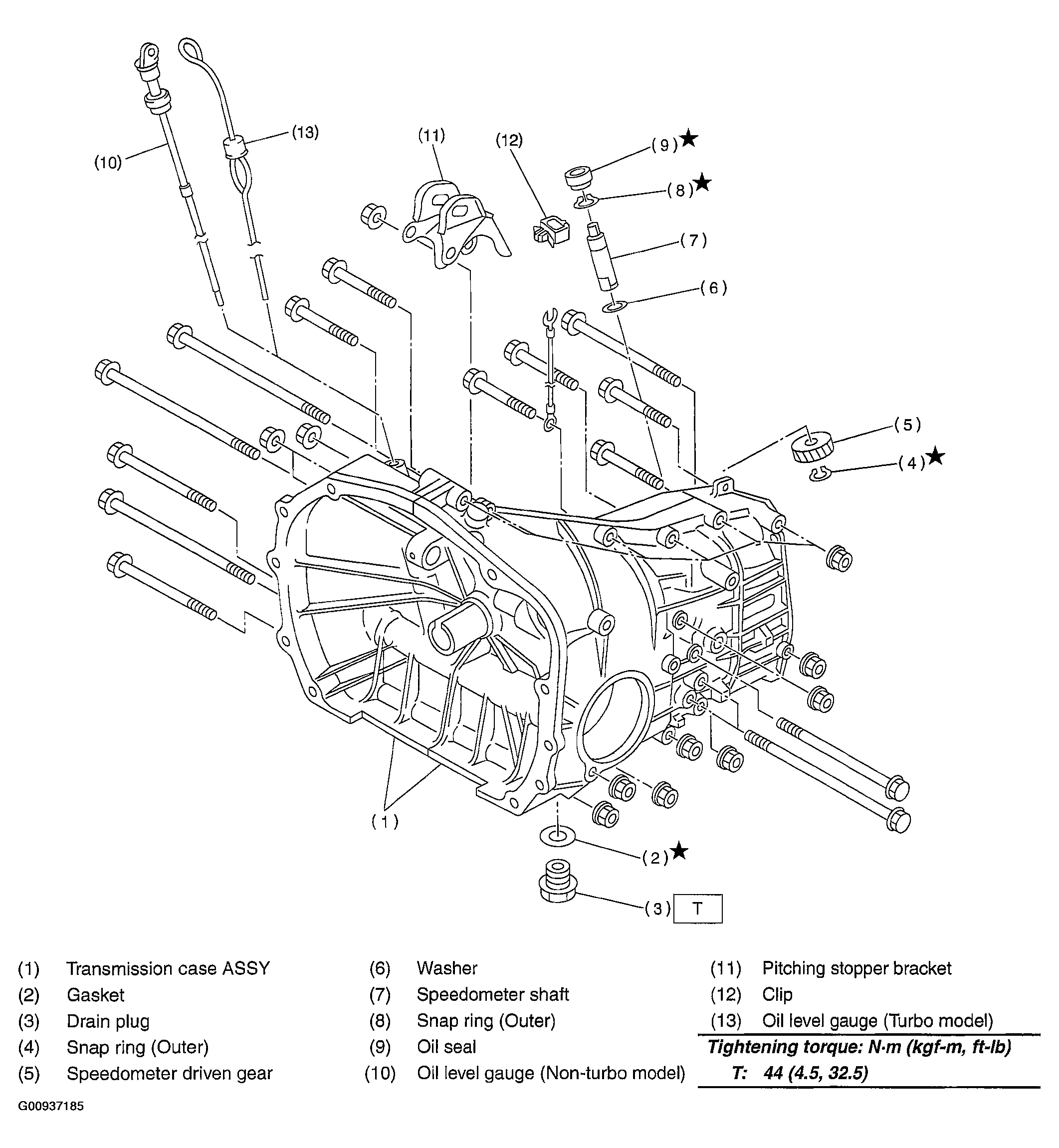

Fig 1: Exploded View Of Transmission Case Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Transmission case tightening torque

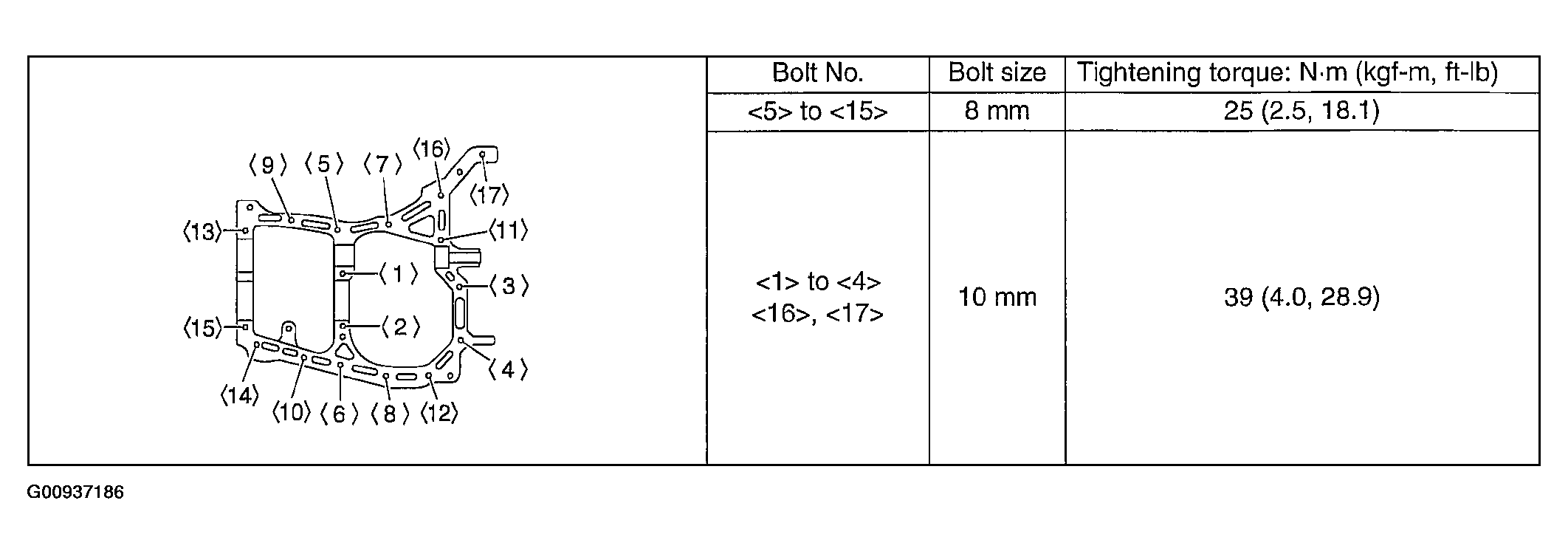

Fig 2: Transmission Case Bolt Tightening Torque Specification Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
