Manual Transmission And Differential
>>
General Description
>>
Components
>>
Drive Pinion Assembly
Drive Pinion Assembly

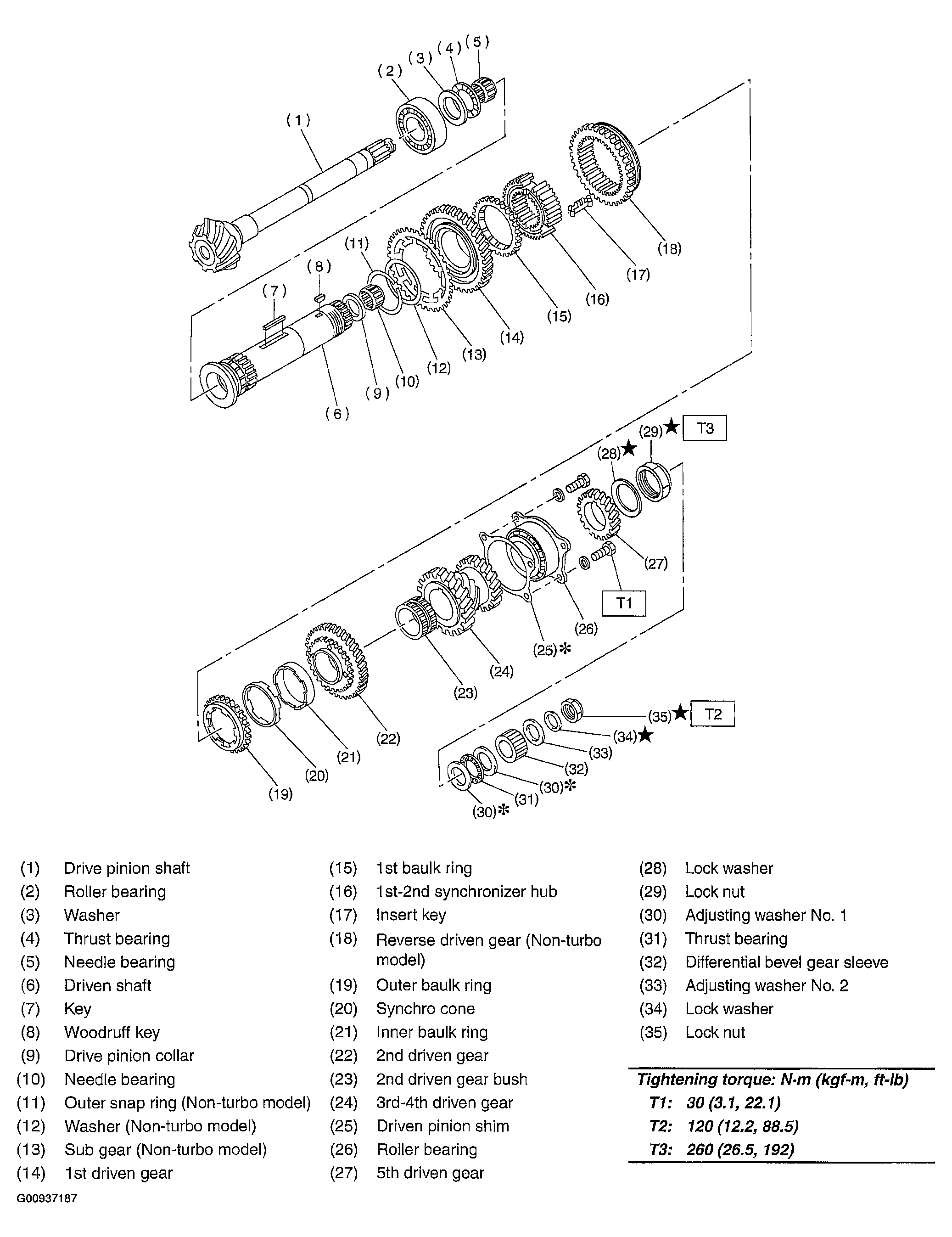

Fig 1: Exploded View Of Drive Pinion Assembly Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
