Side Retainer

NOTE: Replace the oil seal and O-ring after adjustment of drive pinion gear backlash and tooth contact.
  1. Remove the O-ring.
    Fig 1: Identifying O-Ring
    G00937378Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the oil seal.
NOTE:
  • Remove the oil seal using a flat tip screwdriver
  • Do not reuse the oil seal. Prepare a new oil seal.

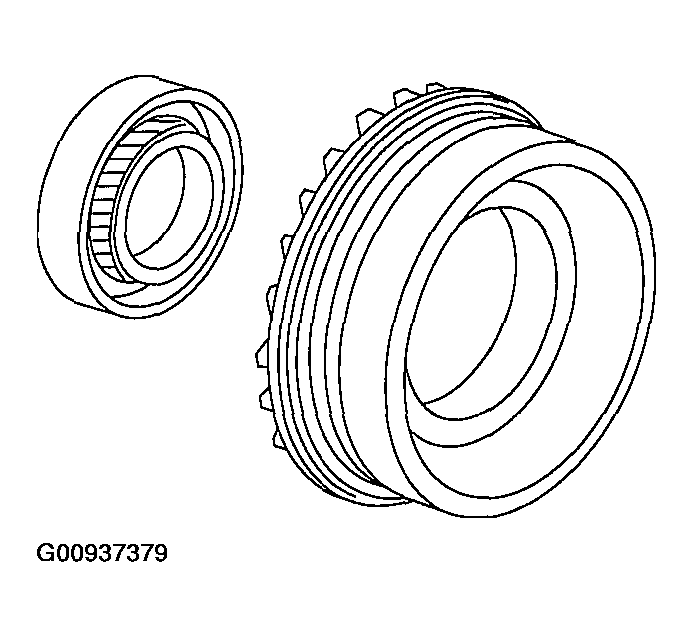

Fig 2: Identifying Oil Seal
G00937379Courtesy of SUBARU OF AMERICA, INC.
