Universal Joint: Installation

Align the cutout at serrated section of the steering shaft and yoke, and then insert the universal joint into steering shaft.

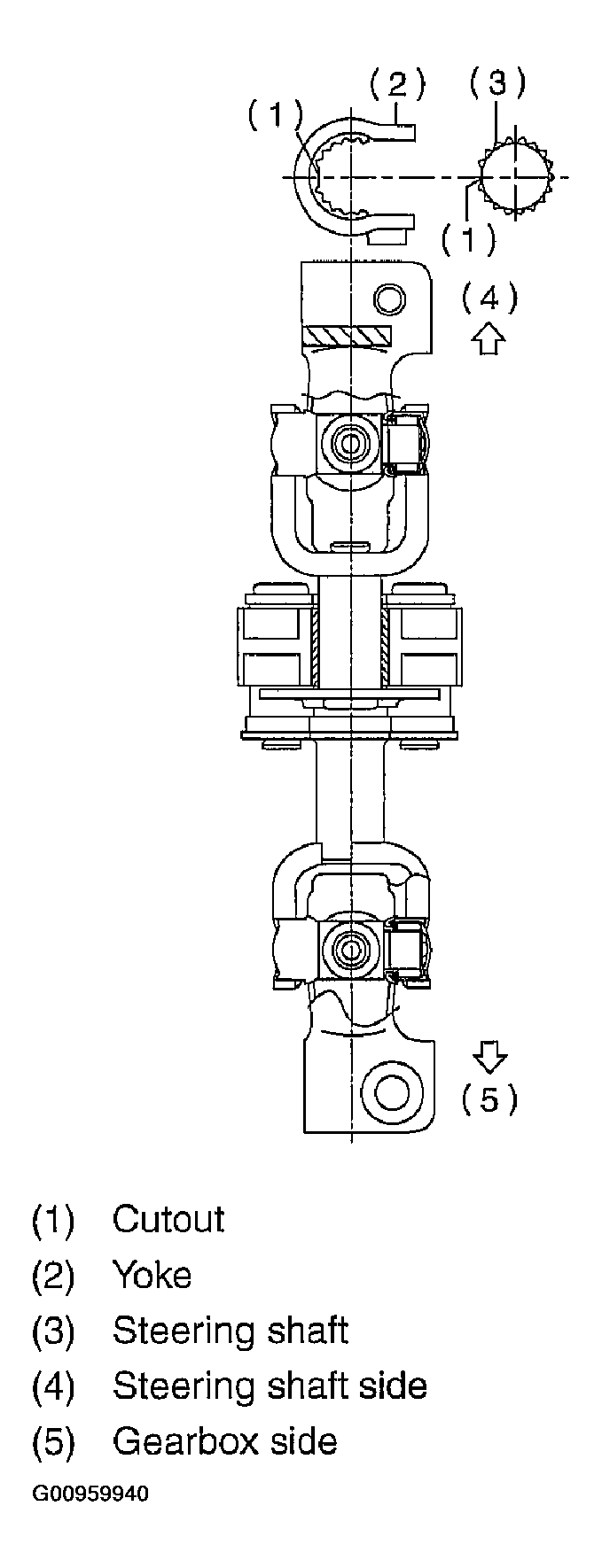

Fig 1: Aligning Cutout At Serrated Section Of Steering Shaft And Yoke For Installation Of Universal Joint
Courtesy of SUBARU OF AMERICA, INC.
Align the matching marks, and then insert the universal joint to serrated section of gearbox assembly.
Tighten the bolt.
Tightening torque:

24 N.m (2.4 kgf-m, 17.4 ft-lb)

CAUTION: Excessively large tightening torque of the universal joint bolts may lead to heavy steering wheel operation.

Standard clearance between gearbox to DOJ:

Over 14 mm (0.55 in)
Align the center of roll connector.
Install the steering wheel and airbag module. Refer to INSTALLATION .
WARNING: Always refer to "Airbag System" before performing airbag module service. Refer to GENERAL DESCRIPTION , General Description .
