Basic Inspection

  1. Clean all disassembled parts, and check for wear, damage, or any other faults, then repair or replace as necessary.
  2. When disassembling, check the inside of gearbox assembly for water. If any water is found, carefully check the boot for damage, input shaft dust seal, adjusting screw and boot clips for poor sealing. If faulty, replace with new parts.

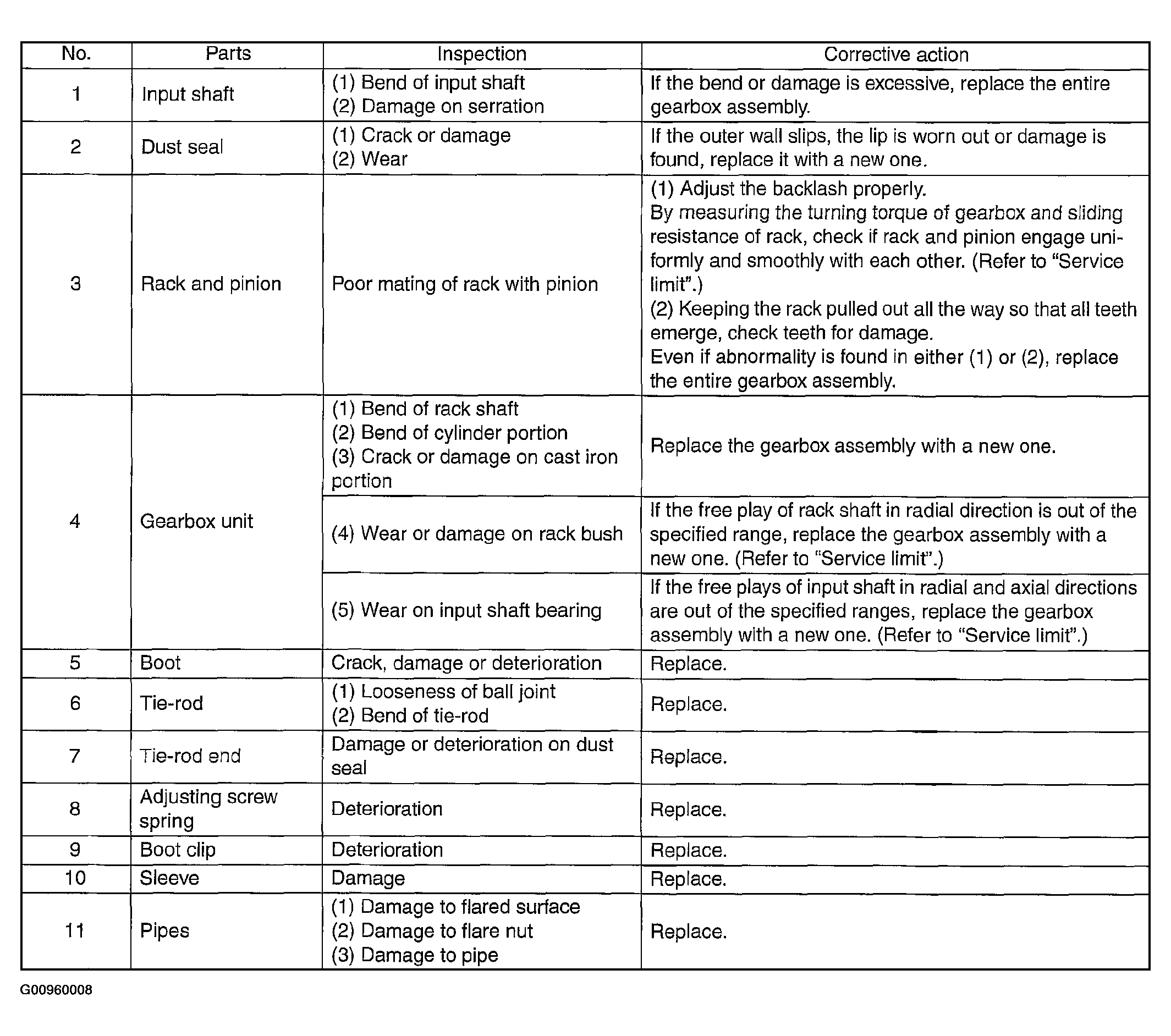

    Fig 1: Power Assisted System Components Inspection And Corrective Action Chart
    G00960008Courtesy of SUBARU OF AMERICA, INC.
