Control Valve

  1. Disconnect the four pipes from gearbox assembly.
    NOTE: Remove the pipes E and F as a single unit being fixed at clamp plate.
  2. Secure the gearbox assembly removed from the vehicle in vise using ST.

    ST 926200000 STAND

    CAUTION: Secure the gearbox assembly in a vise using ST as shown. Do not attempt to secure it without this ST.
    Fig 1: Securing Gearbox Assembly In Vise Using ST
    G00959972Courtesy of SUBARU OF AMERICA, INC.
  3. Using the ST, loosen the lock nut.

    ST 926230000 SPANNER

    Fig 2: Loosening Lock Nut
    G00959973Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten the adjusting screw until it no longer tightens.
    Fig 3: Tightening Adjusting Screw
    G00959974Courtesy of SUBARU OF AMERICA, INC.
  5. Loosen the adjusting screw, and then remove the spring and sleeve.
  6. Remove the two bolts securing valve housing.
    Fig 4: Identifying Bolts Securing Valve Housing
    G00959975Courtesy of SUBARU OF AMERICA, INC.
  7. Carefully draw out the input shaft, and then remove the valve assembly.
    CAUTION: Do not allow foreign matter to enter gearbox interior.
    Fig 5: Identifying Input Shaft And Valve Assembly
    G00959976Courtesy of SUBARU OF AMERICA, INC.
  8. Slide the dust cover out.
    Fig 6: Identifying Dust Cover
    G00959977Courtesy of SUBARU OF AMERICA, INC.
  9. Using a press remove the pinion and valve assembly from valve housing.
    Fig 7: Identifying Pinion And Valve Assembly
    G00959978Courtesy of SUBARU OF AMERICA, INC.
  10. Using the ST and press, remove the seal ring, oil seal and special bearing from valve housing.

    ST 34099FA120 INSTALLER & REMOVER SEAL

    CAUTION:
    • Do not apply force to the end surface of valve housing.
    • Do not reuse the oil seal after removal.
      Fig 8: Identifying Oil Seal And Special Bearing
      G00959979Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the snap ring using snap ring pliers.
    CAUTION: Be careful not to scratch the pinion and valve assembly.
    Fig 9: Identifying Snap Ring
    G00959980Courtesy of SUBARU OF AMERICA, INC.

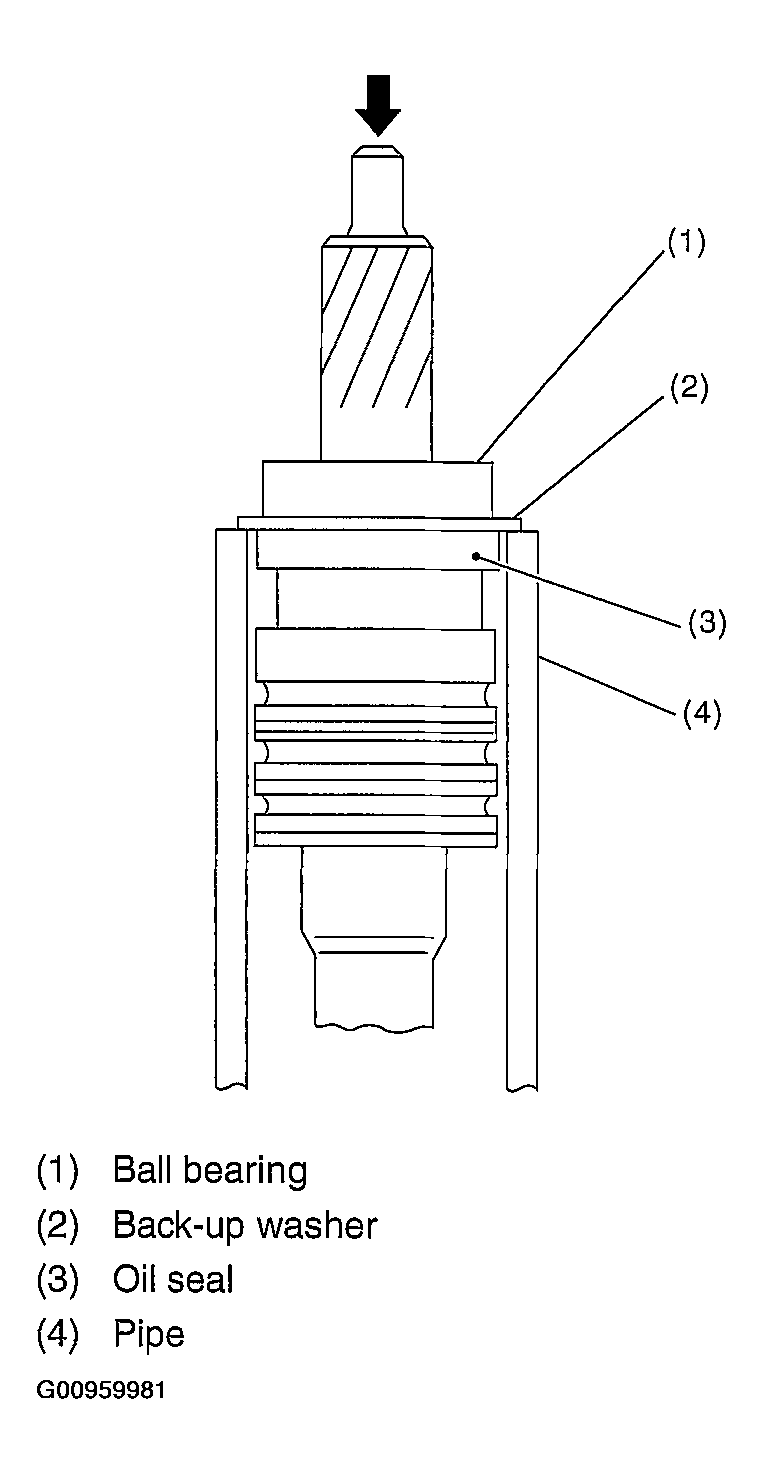

  12. Press out the ball bearing together with the back up washer using pipe of I.D. 38.5 to 39.5 mm (1.516 to 1.555 in) and press.
    Fig 10: Identifying Ball Bearing
    G00959981Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the oil seal.
