Pipe Assembly: Removal

Disconnect the ground cable from battery.
Lift-up the vehicle, and then remove the jack-up plate.

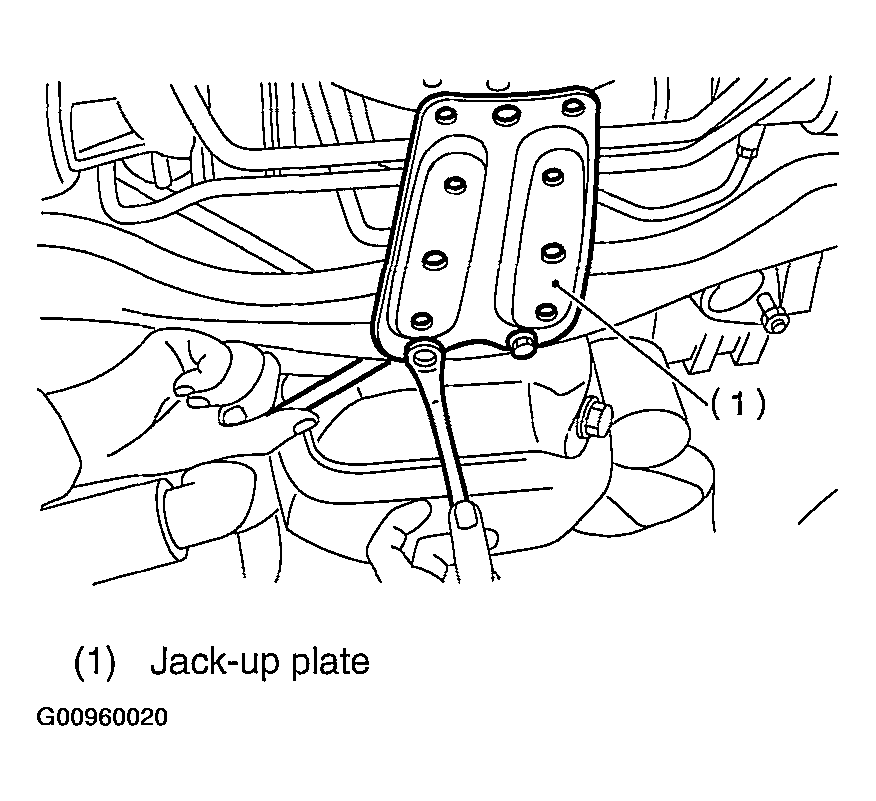

Fig 1: Identifying Jack-Up Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the one pipe joint at the center of gearbox assembly, and then connect the vinyl hose to pipe and joint. Discharge fluid by turning steering wheel fully clockwise and counterclockwise. Discharge fluid similarly from the other pipe.

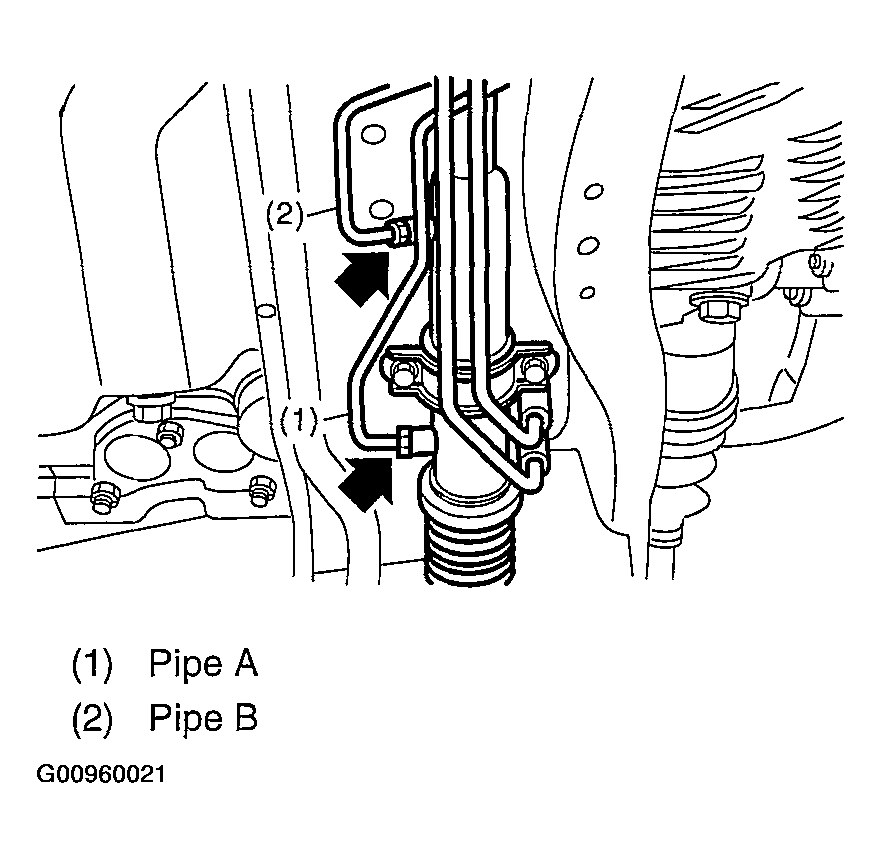

Fig 2: Identifying Pipe Joints
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp E from pipes C and D.

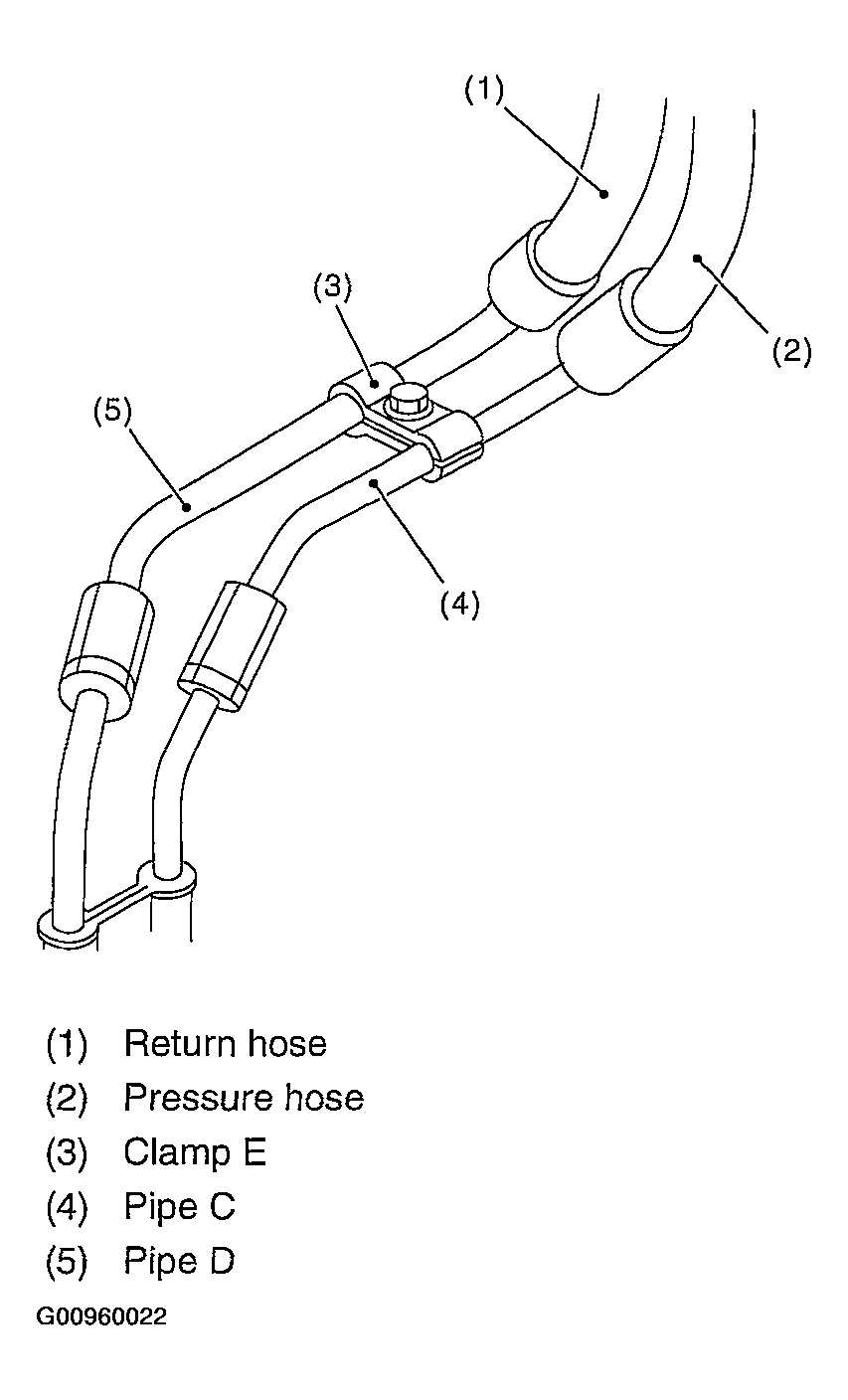

Fig 3: Identifying Clamp E
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the pipe C and D from gearbox.

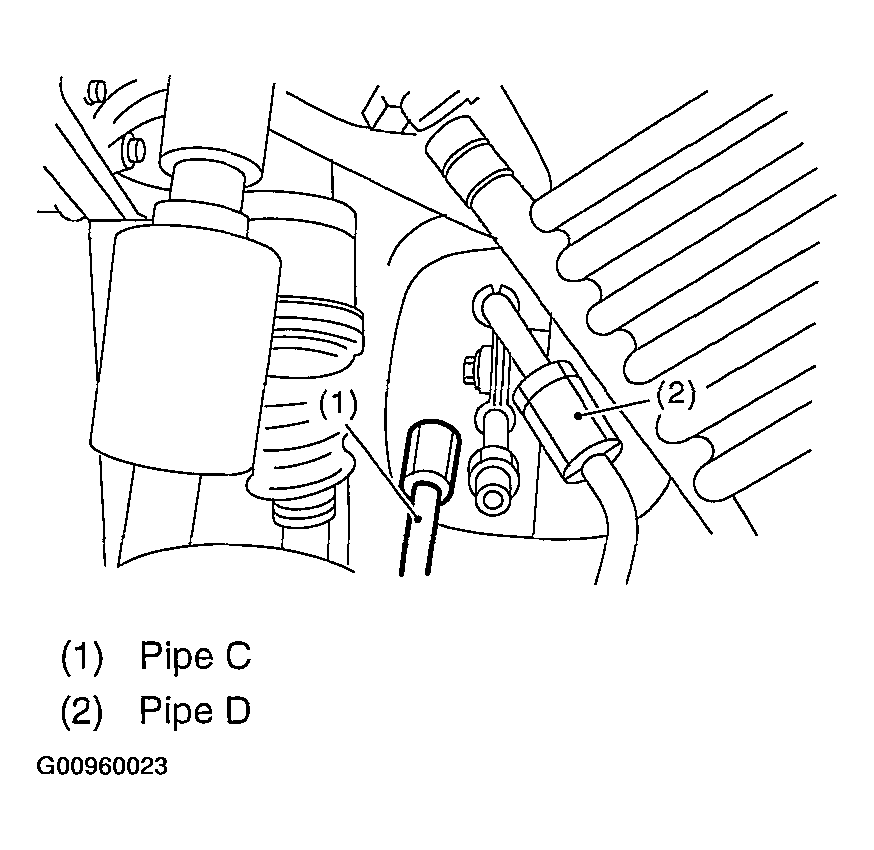

Fig 4: Disconnecting Pipe C And D From Gearbox
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct. Refer to REMOVAL , Air Intake Duct .
Remove the bolt A.
Disconnect the pipe C from oil pump. Disconnect the pipe D from return hose.
CAUTION:
- Do not allow fluid from the hose end to come into contact with pulley belt.
- To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

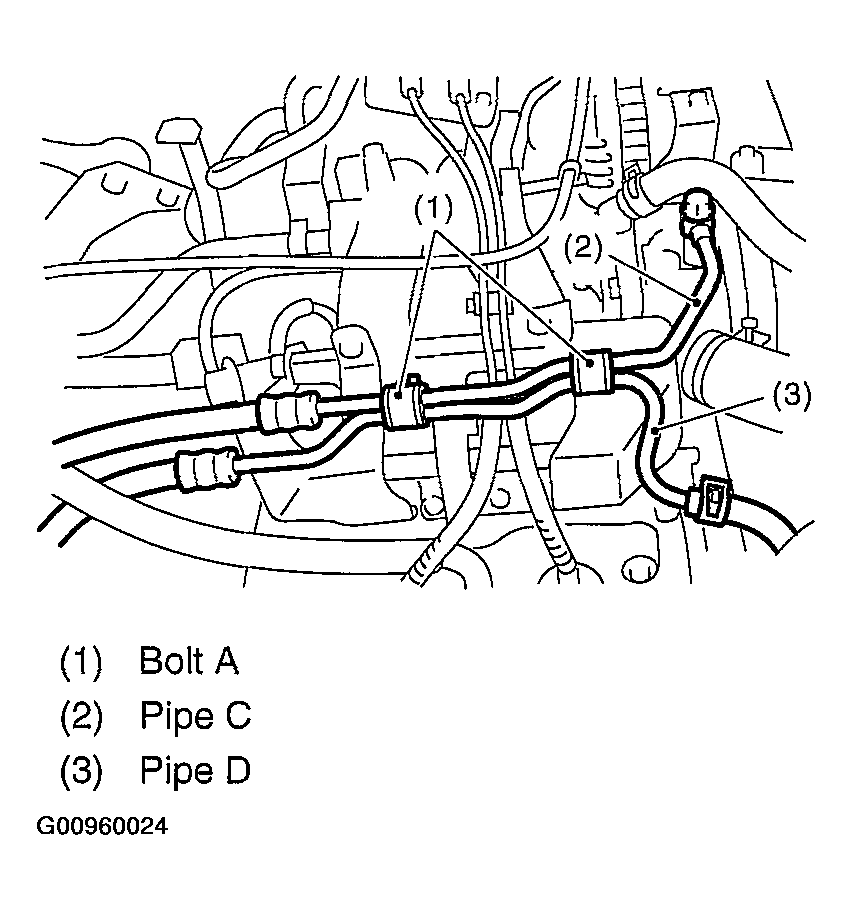

  Fig 5: Disconnecting Pipe C From Oil Pump And Pipe D From Return Hose
