Home >> Subaru >> 2004 >> Forester XT, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Assisted System (Power Steering) >> Oil Pump >> Inspection >> Basic Inspection

Basic Inspection

Perform the following inspection procedures and repair or replace defective parts.

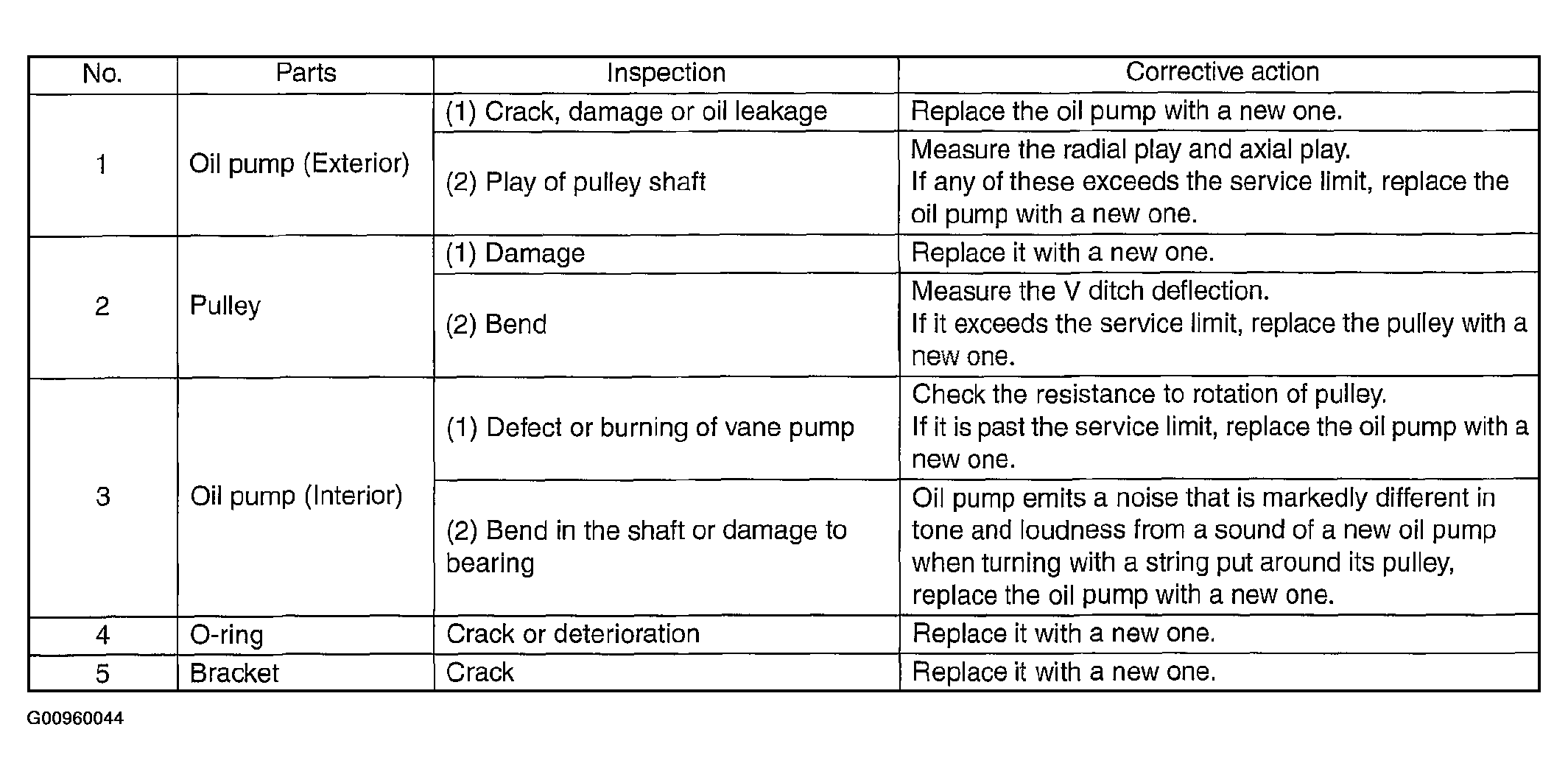

Fig 1: Inspection Procedures Chart

G00960044

Courtesy of SUBARU OF AMERICA, INC.
