Models Without A/C

The ON-OFF control of the radiator fan is performed by the ECM which receives signals from the engine coolant temperature sensor and the vehicle speed sensor.

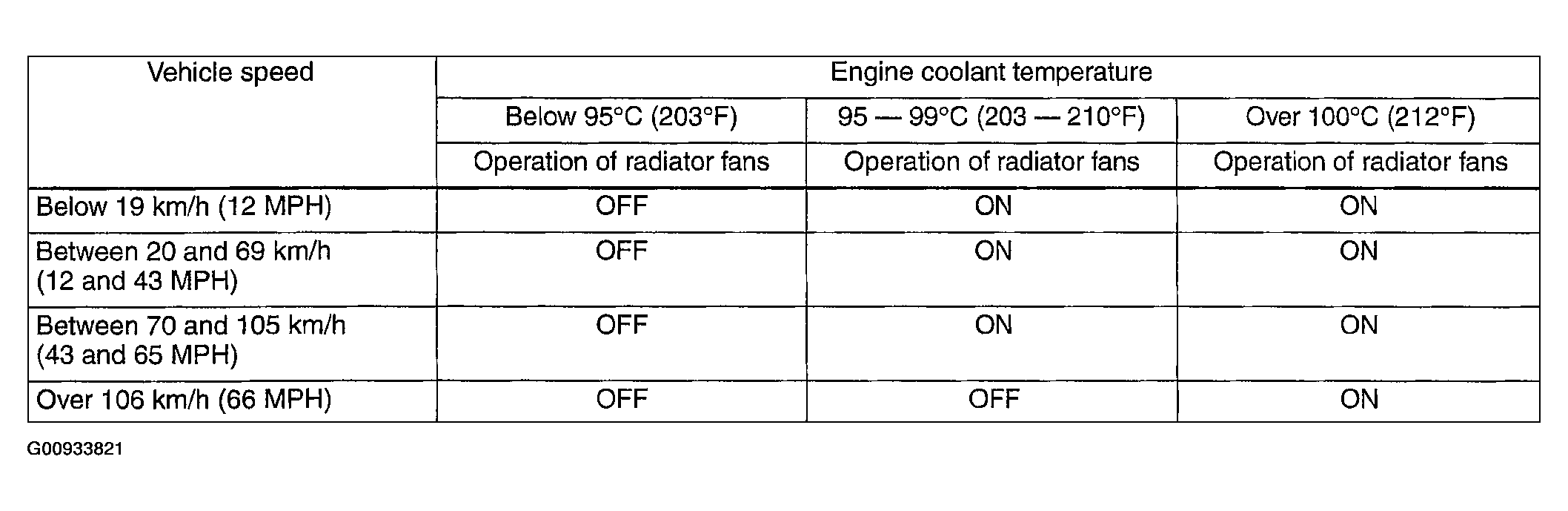

Fig 1: Radiator Fan Operation Condition Chart - Without A/C

Courtesy of SUBARU OF AMERICA, INC.
