Front Seat

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Standard seat

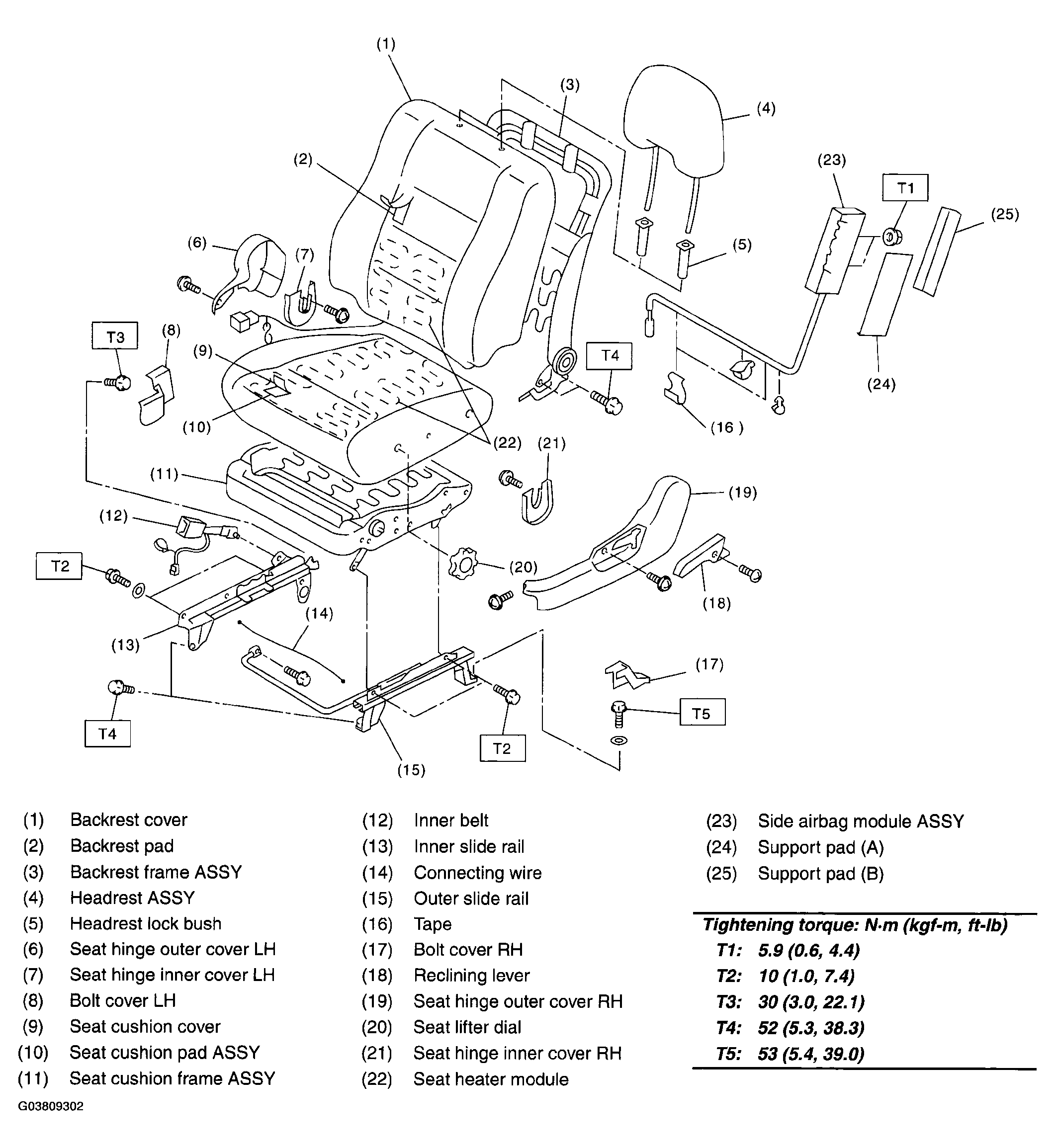

Fig 1: Exploded View Of Front Seat
Courtesy of SUBARU OF AMERICA, INC.
Power seat

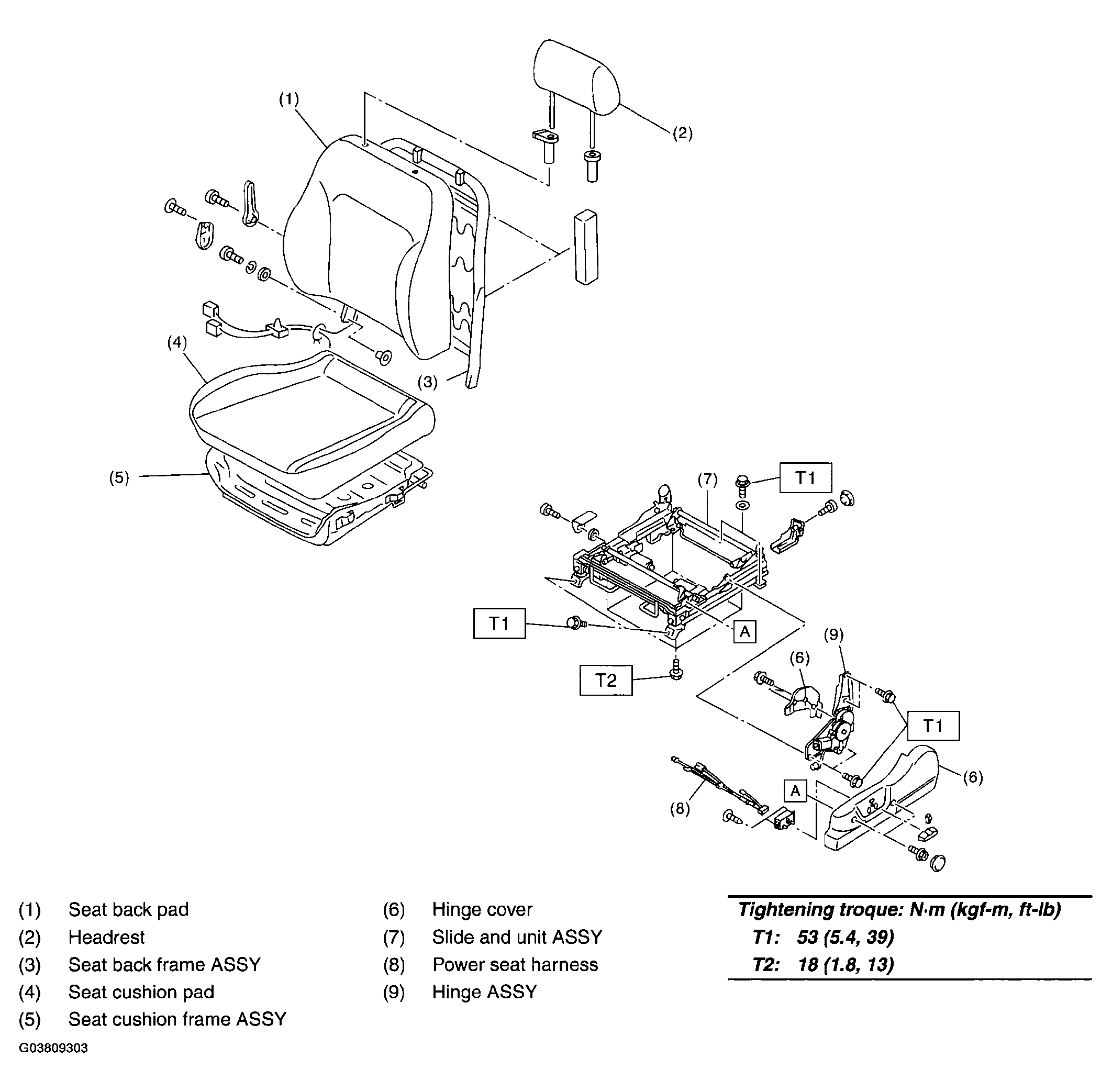

Fig 2: Exploded View Of Power Seat
Courtesy of SUBARU OF AMERICA, INC.
