Front Drive Shaft Assembly
WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

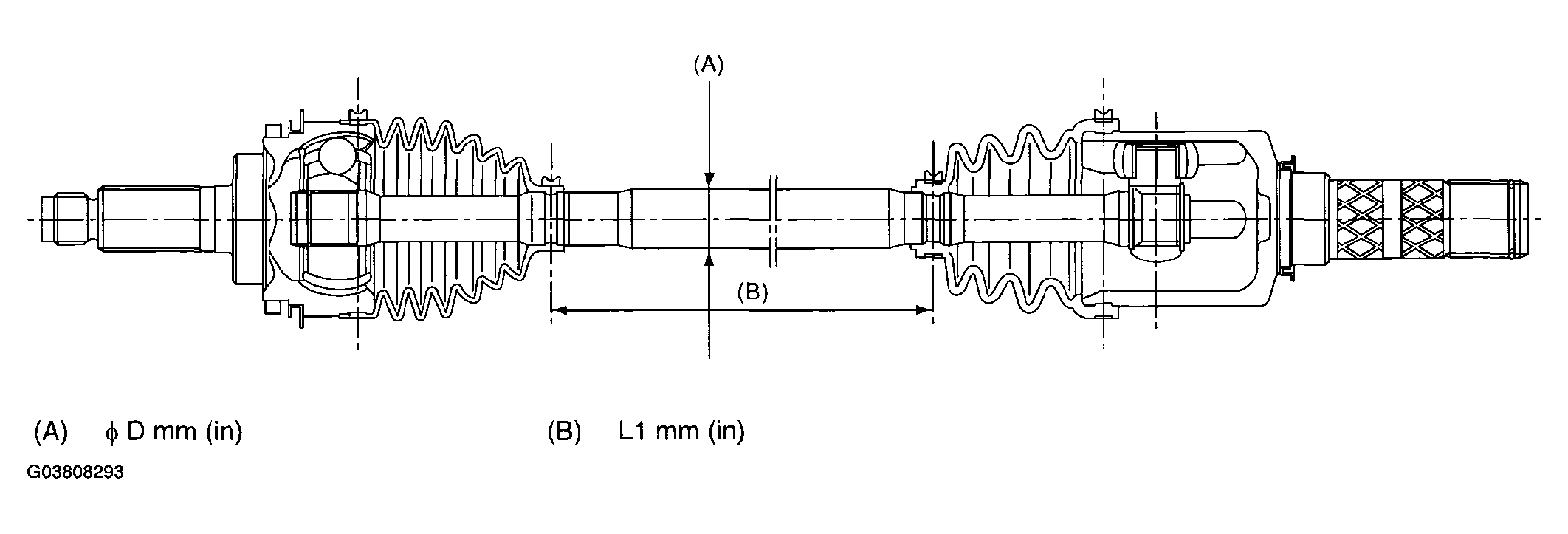

FRONT DRIVE SHAFT SPECIFICATIONS
| Specification |
Model |
Identification color of shaft |
L1 mm (in) |
"DIAMETER" D mm (in) |
| AC+AARI |
Non-turbo, Turbo AT |
- |
513 (20.2) |
24.9 (0.98) |
| Turbo MT |
Pink |
511.4 (20.13) |
24.9 (0.98) |
Courtesy of SUBARU OF AMERICA, INC.
