Rear Differential Mounting System

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

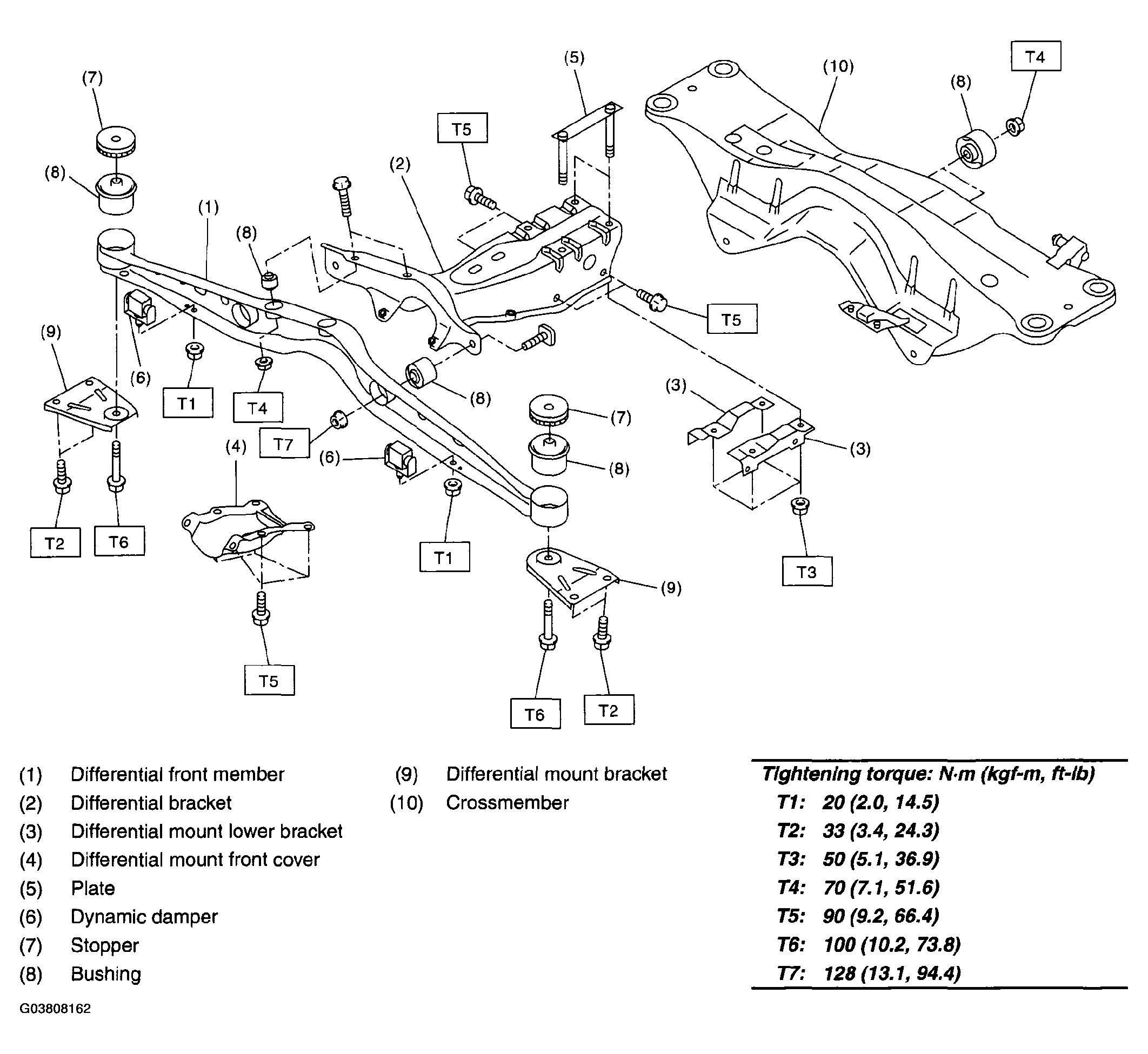

Fig 1: Exploded View Of Rear Differential Mounting System
G03808162Courtesy of SUBARU OF AMERICA, INC.
