Wastegate Control Solenoid Valve: Removal

  1. Disconnect the ground cable from battery.

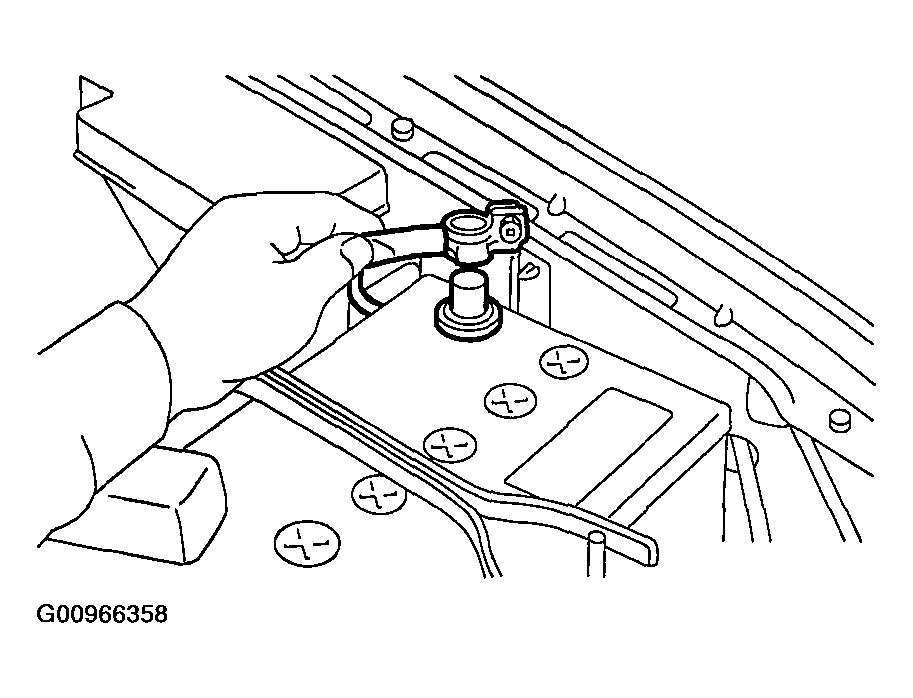

    Fig 1: Disconnecting Ground Cable From Battery
    G00966358Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the engine harness connector (A) from bracket.
  3. Disconnect the connector (B) from wastegate control solenoid valve.
  4. Remove the bracket from body.

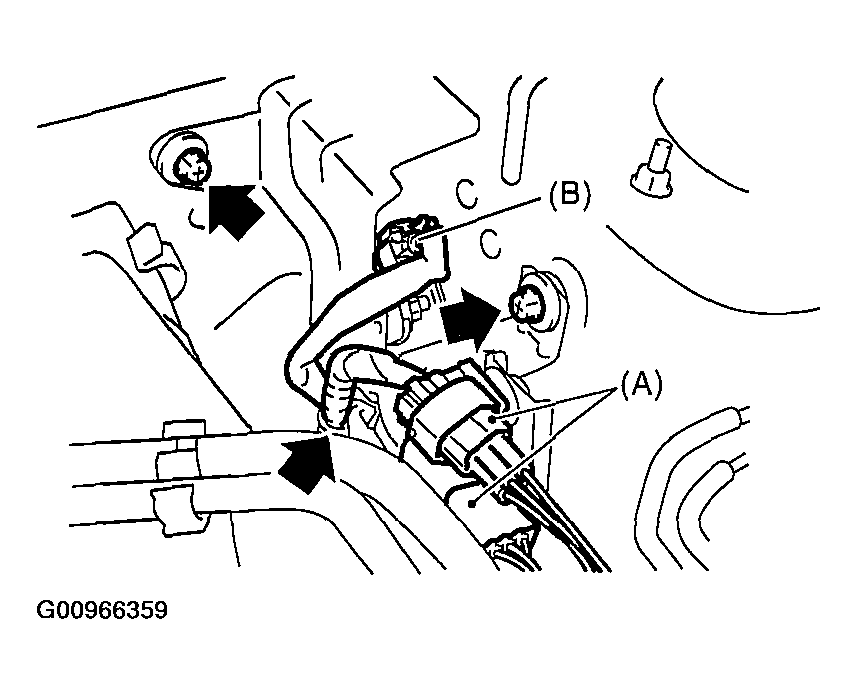

    Fig 2: Identifying Wastegate Control Solenoid Valve
    G00966359Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the pressure hoses (C) from wastegate control solenoid valve.

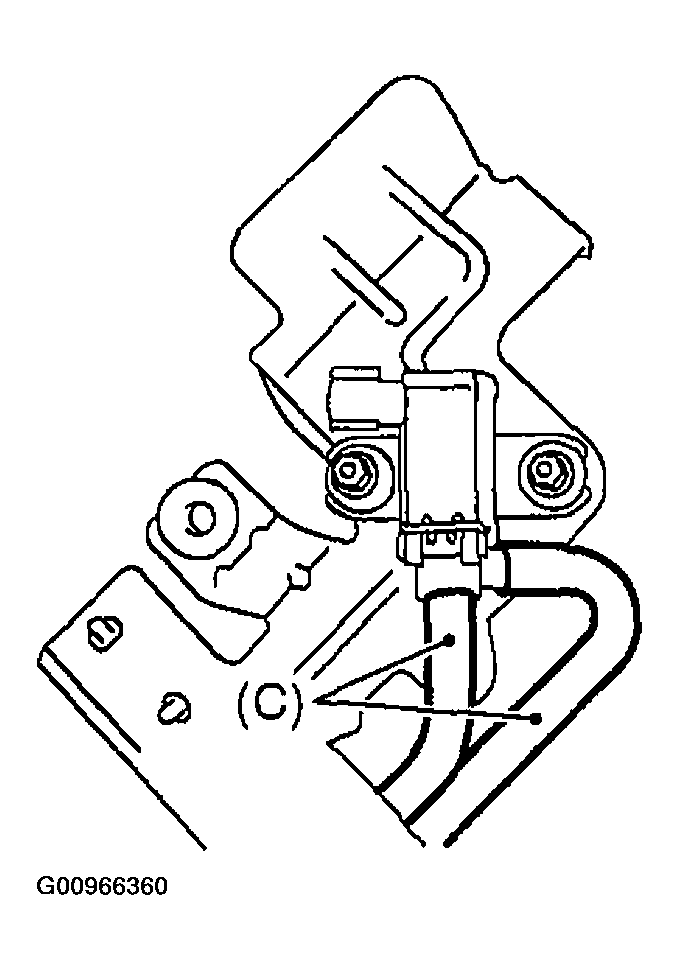

    Fig 3: Identifying Pressure Hoses
    G00966360Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the wastegate control solenoid valve from bracket.

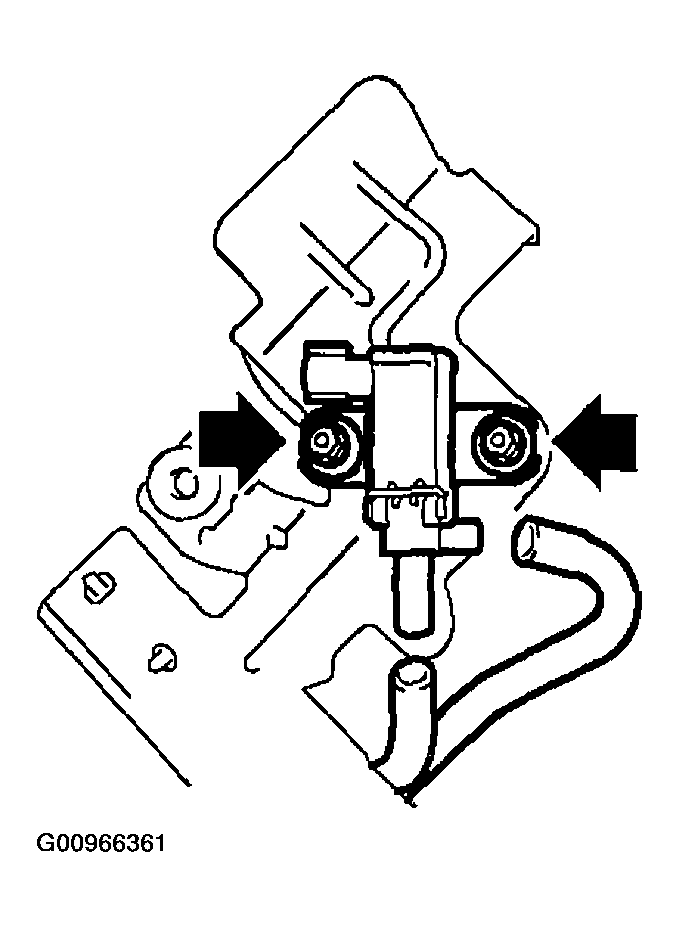

    Fig 4: Identifying Wastegate Control Solenoid Valve
    G00966361Courtesy of SUBARU OF AMERICA, INC.
