Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.

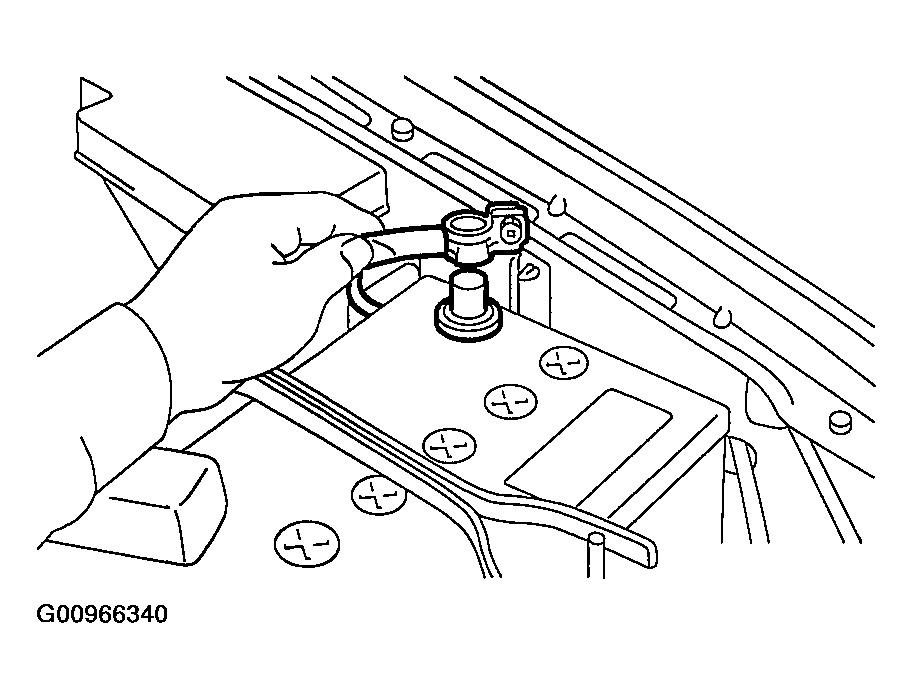

    Fig 1: Disconnecting Ground Cable From Battery
    G00966340Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from mass air flow and intake air temperature sensor.
  3. Remove the mass air flow and intake air temperature sensor.

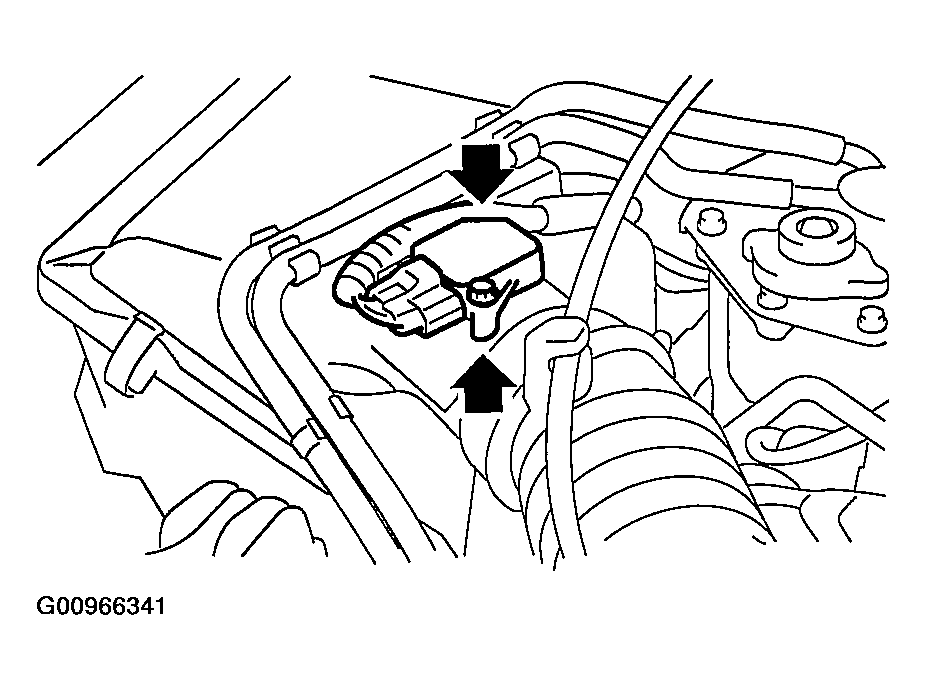

    Fig 2: Identifying Mass Air Flow And Intake Air Temperature Sensor
    G00966341Courtesy of SUBARU OF AMERICA, INC.
