Fuel filler Pipe: Removal

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Fuel . >
Open the fuel filler flap lid and remove the filler cap.
Disconnect the ground cable from battery.

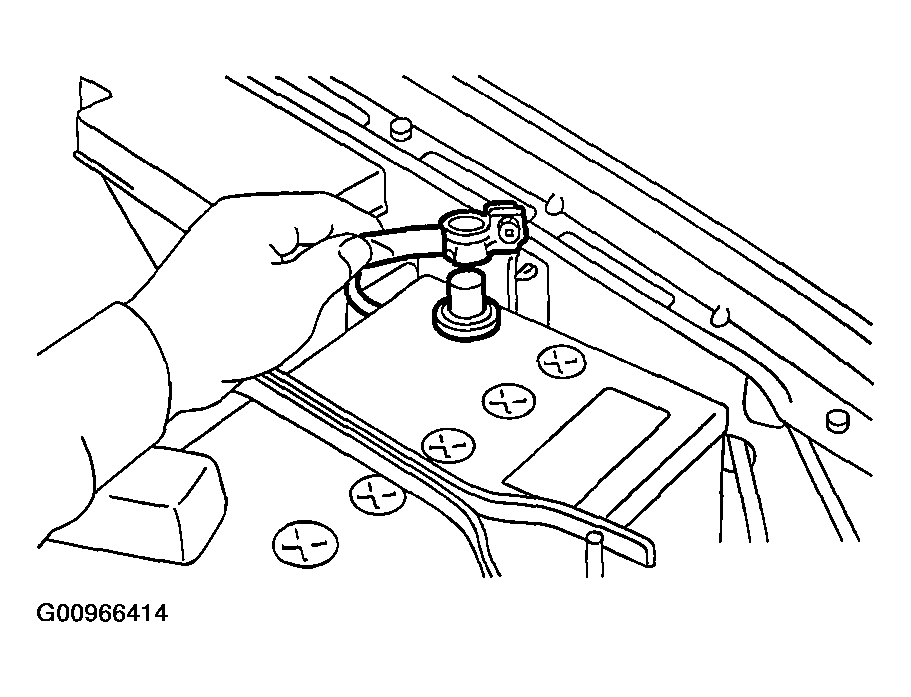

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws holding packing in place.

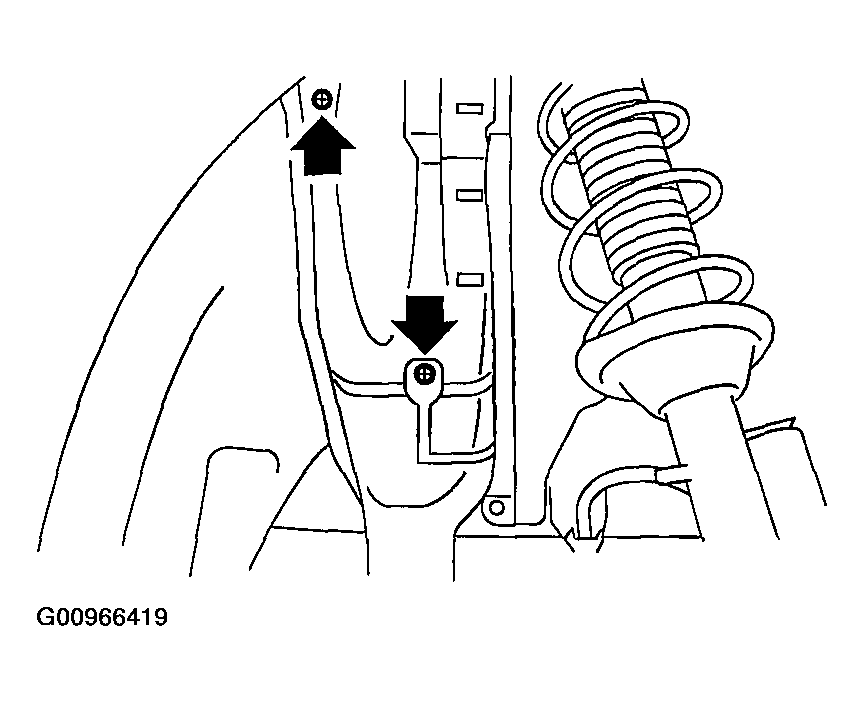

Fig 2: Identifying Screws Holding Packing In Place
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear right side wheel nuts.
Remove the rear right side wheel.

Fig 3: Identifying Rear Right Side Wheel
Courtesy of SUBARU OF AMERICA, INC.
Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plug from the fuel tank.

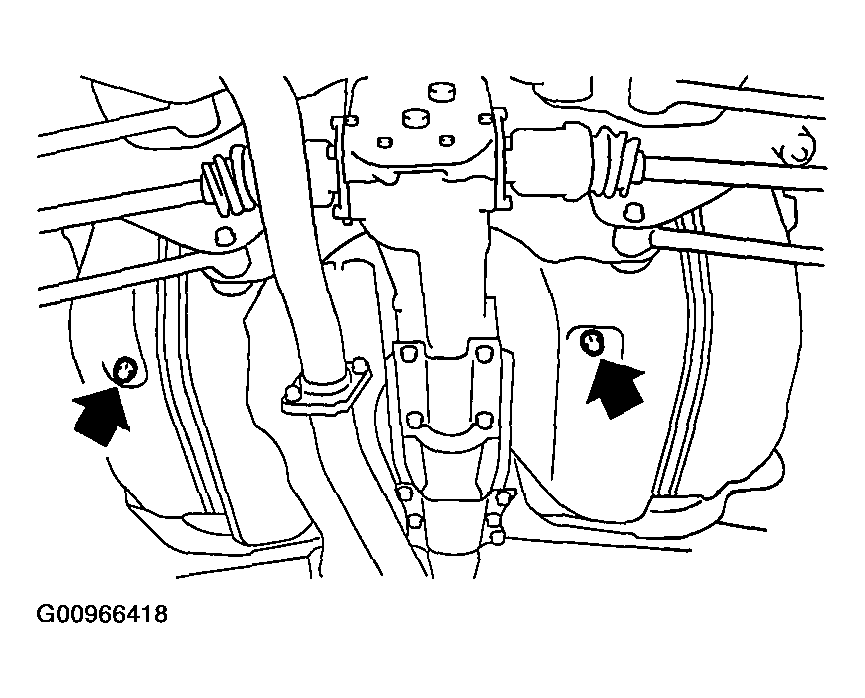

Fig 4: Identifying Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plug.
1. Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)

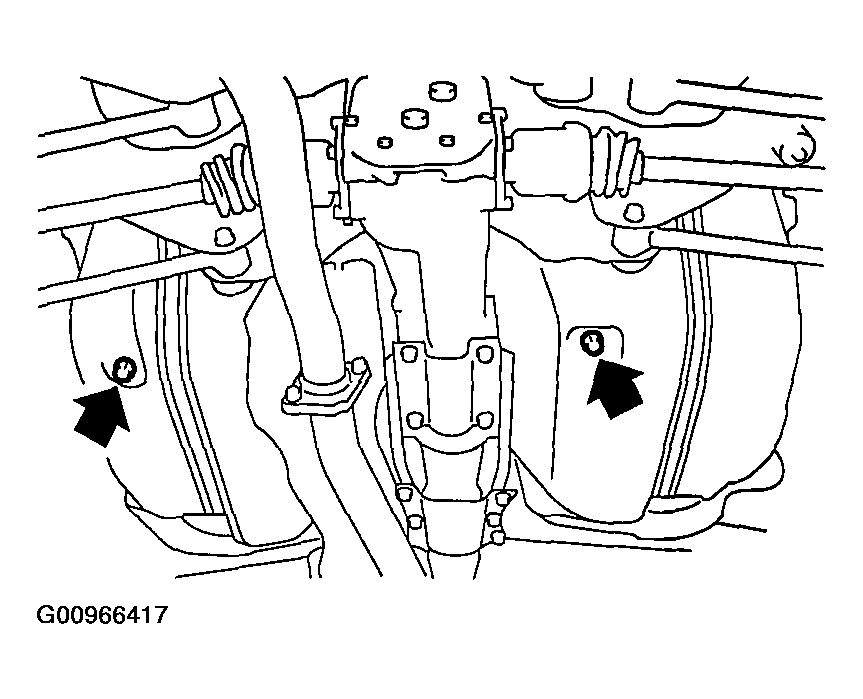

Fig 5: Tightening Fuel Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel filler pipe protector.

Fig 6: Identifying Fuel Filler Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Separate the evaporation hoses from the clip of fuel filler pipe.

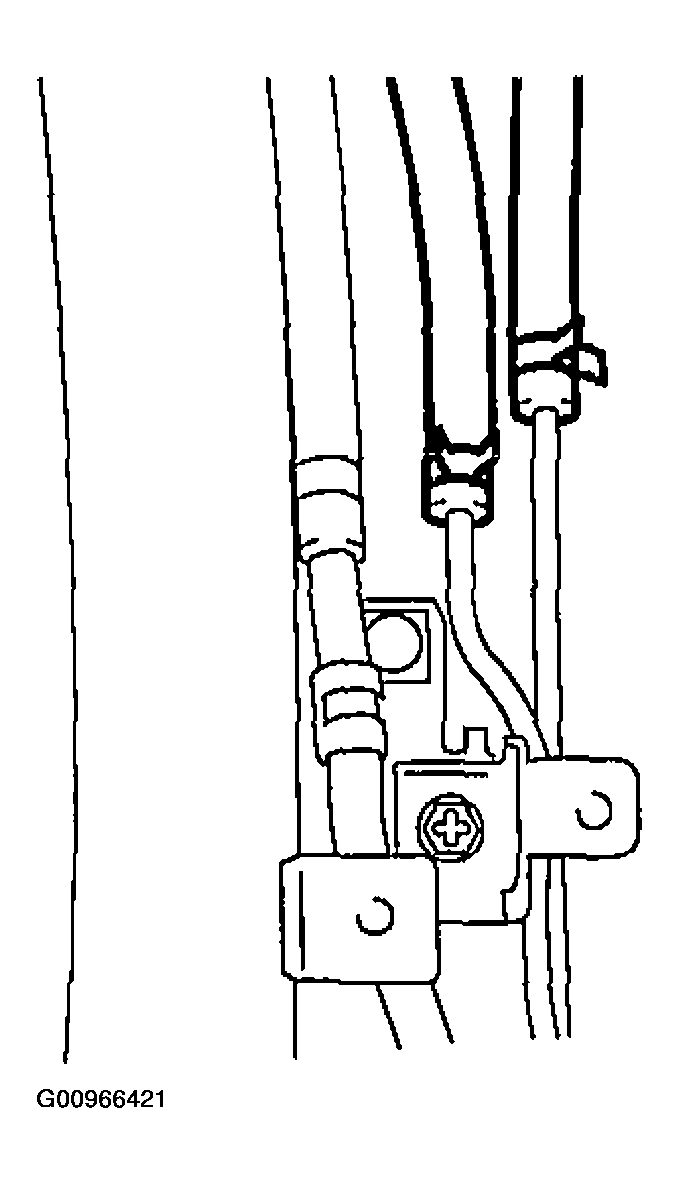

Fig 7: Identifying Evaporation Hoses
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the evaporation hoses from the pipes.

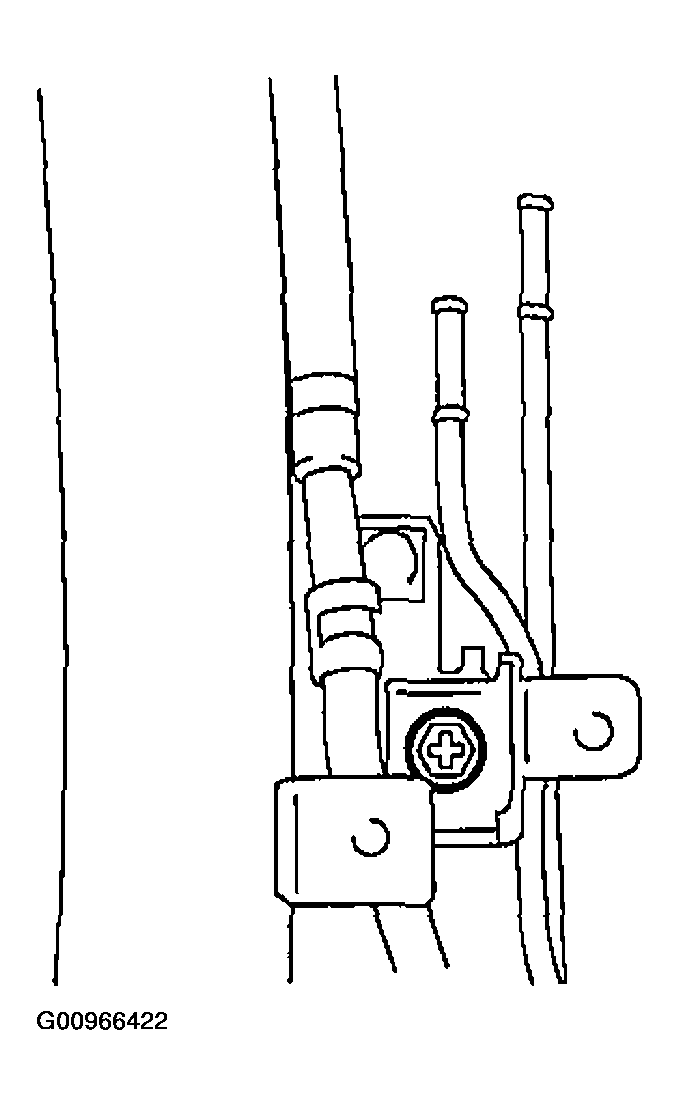

Fig 8: Identifying Evaporation Hoses From Pipes
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold the fuel filler pipe bracket on the body.

Fig 9: Identifying Fuel Filler Pipe Bracket
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp and separate the fuel filler hose (A) from the fuel filler pipe.
Loosen the clip and separate the evaporation hose (B).

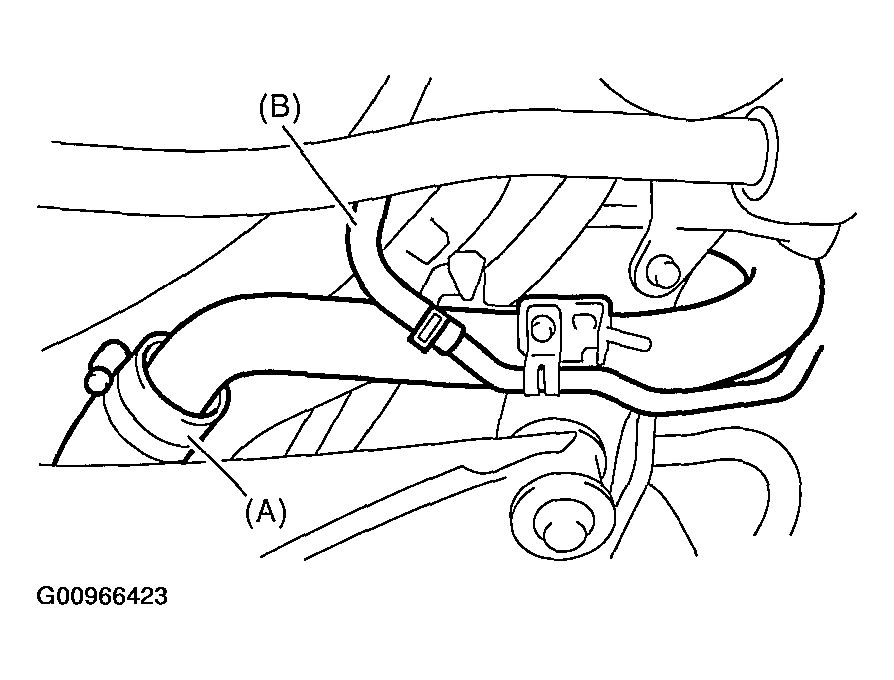

Fig 10: Identifying Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel filler pipe to under side of the vehicle.
Remove the evaporation pipe together with clip from the body.

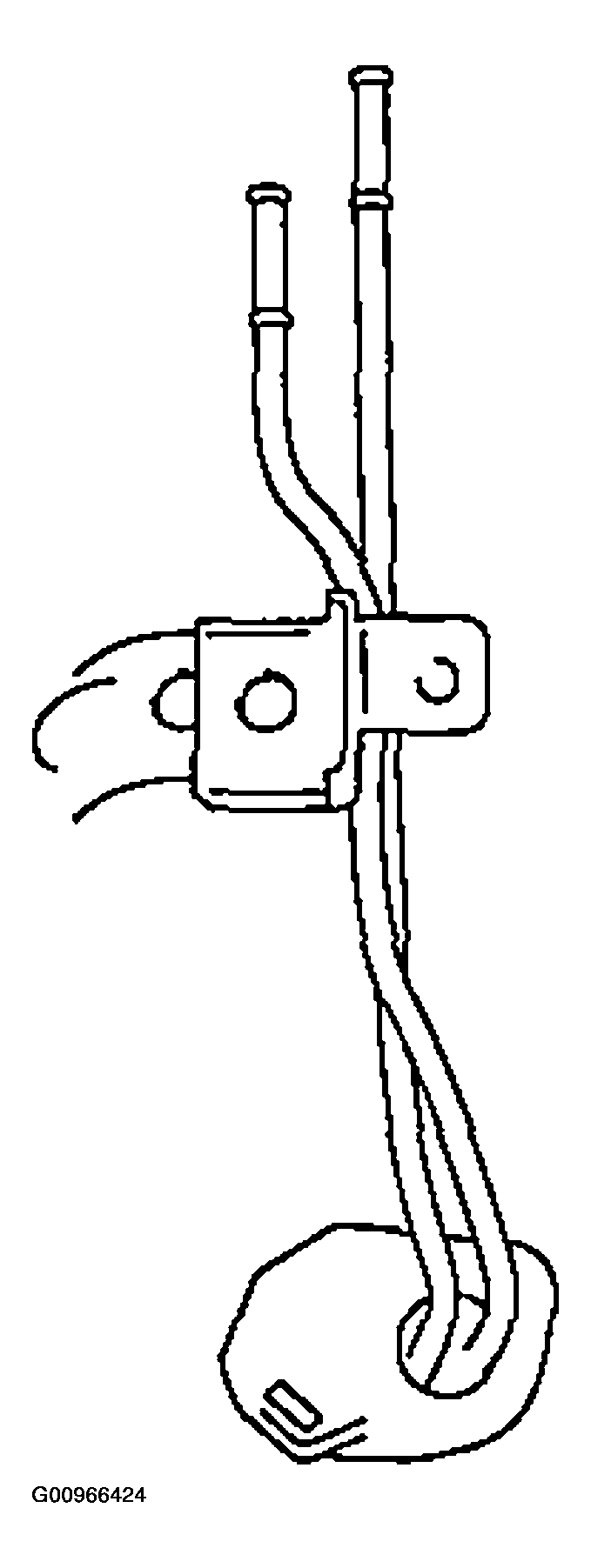

Fig 11: Identifying Evaporation Pipe
Courtesy of SUBARU OF AMERICA, INC.
