Home >> Subaru >> 2004 >> Forester XT, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems) (H4DOTC) >> Fuel Damper Valve >> Removal

Fuel Damper Valve: Removal

  1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE  . >
  2. Remove the fuel damper valve from the fuel delivery line.

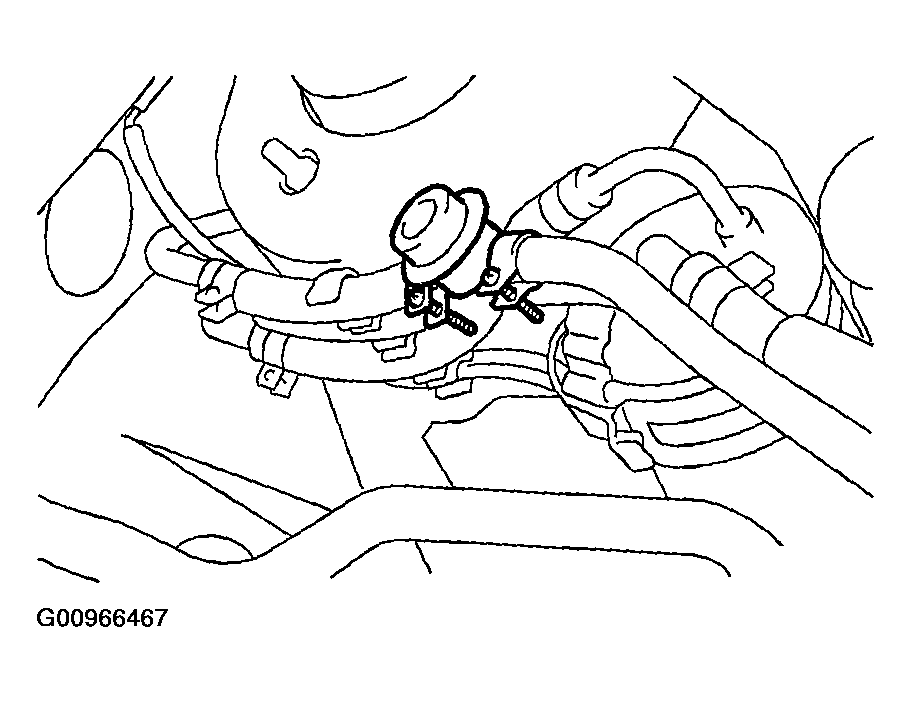

    Fig 1: Identifying Fuel Damper Valve
    G00966467Courtesy of SUBARU OF AMERICA, INC.
