Fuel Cut Valve: Removal

  1. Remove the fuel tank. < Ref. to REMOVAL  . >
  2. Remove the protect cover.

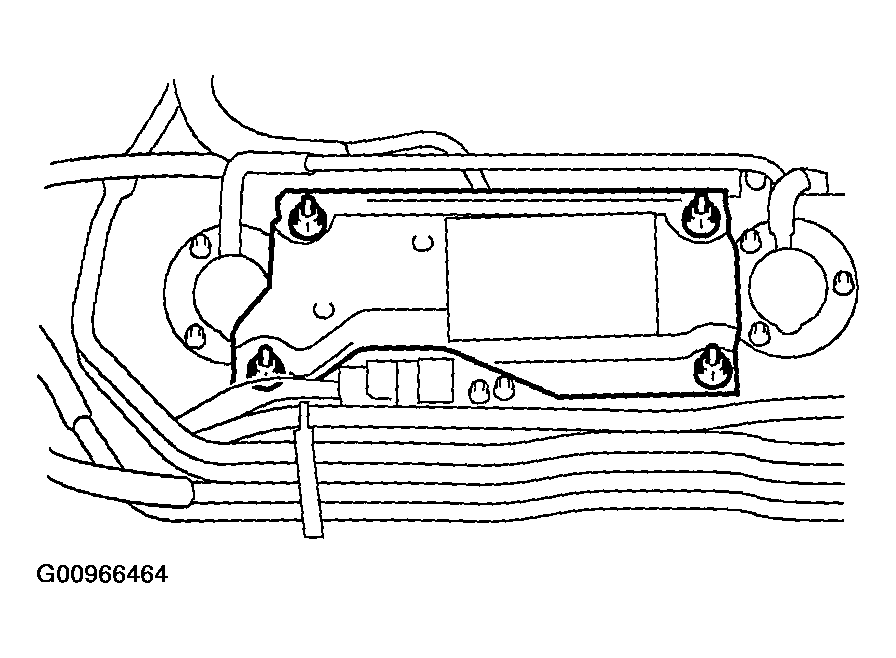

    Fig 1: Identifying Protect Cover
    G00966464Courtesy of SUBARU OF AMERICA, INC.
  3. Move the clip and disconnect the evaporation hose from fuel cut valve.

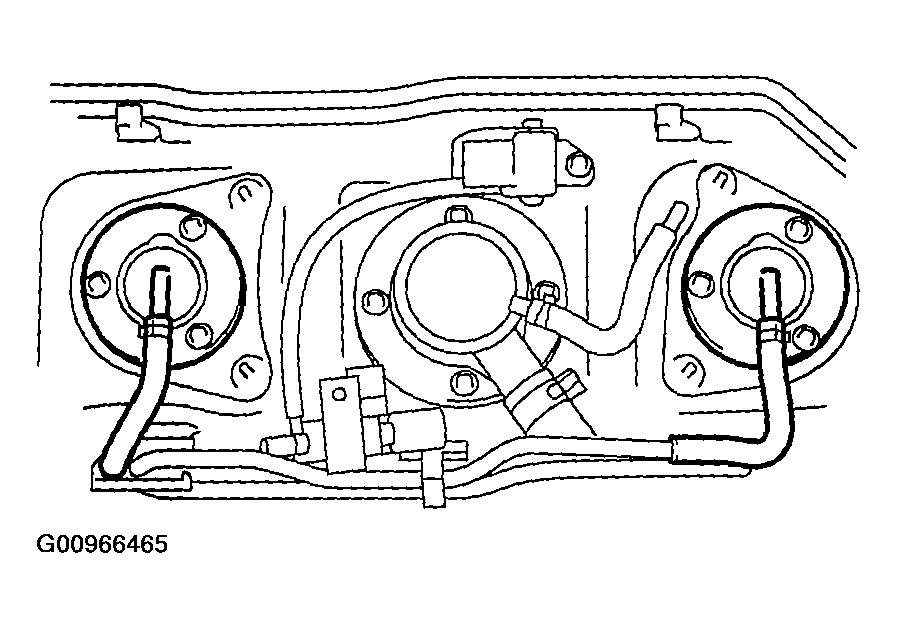

    Fig 2: Identifying Fuel Cut Valve
    G00966465Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which install the fuel cut valve.
