Warning And Indicator Lights

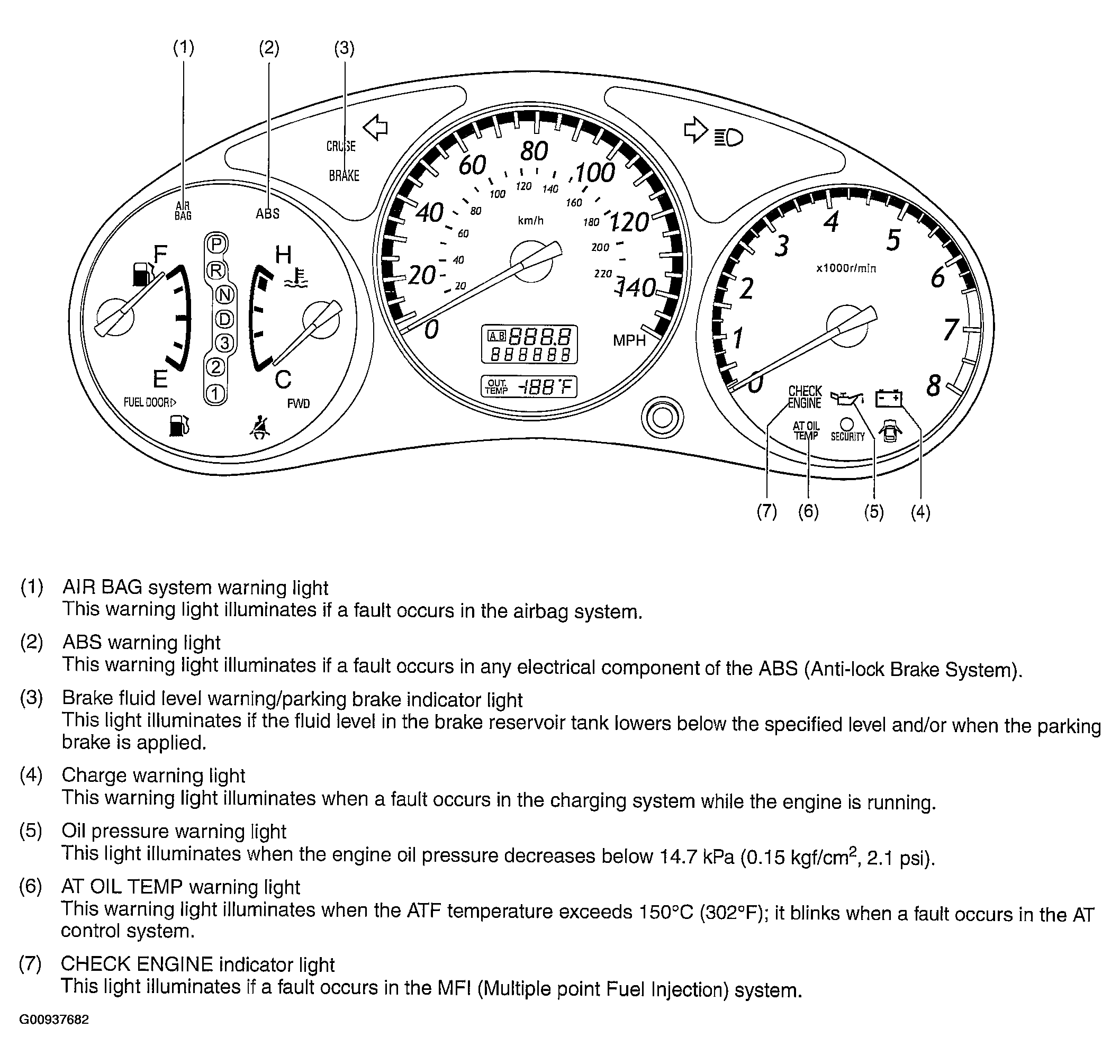

Fig 1: Identifying Combination Meter Warning Light

Courtesy of SUBARU OF AMERICA, INC.

When everything is normal, the warning and indicator lights should be ON or OFF as shown below according to ignition switch positions.

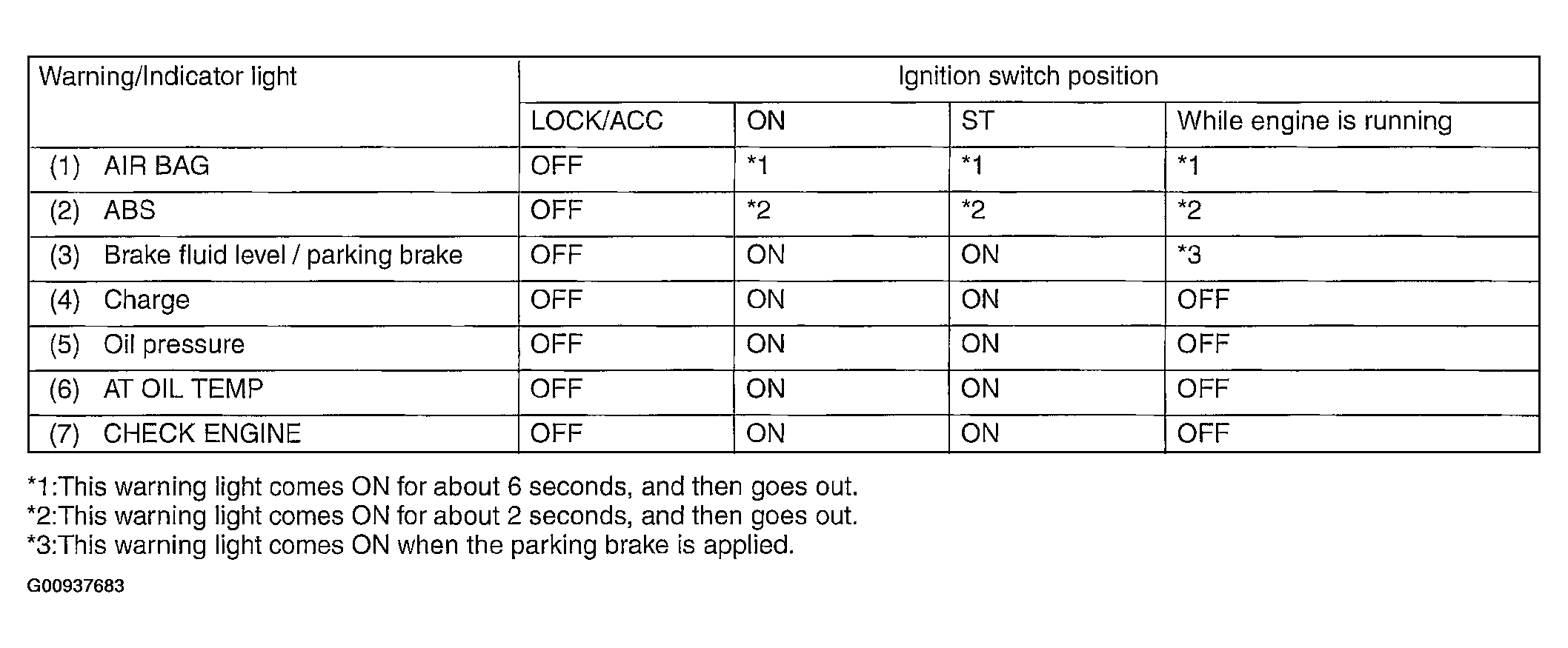

Fig 2: Identifying Combination Meter Warning Light Specification

Courtesy of SUBARU OF AMERICA, INC.
