Telltale (Graphic Monitor)

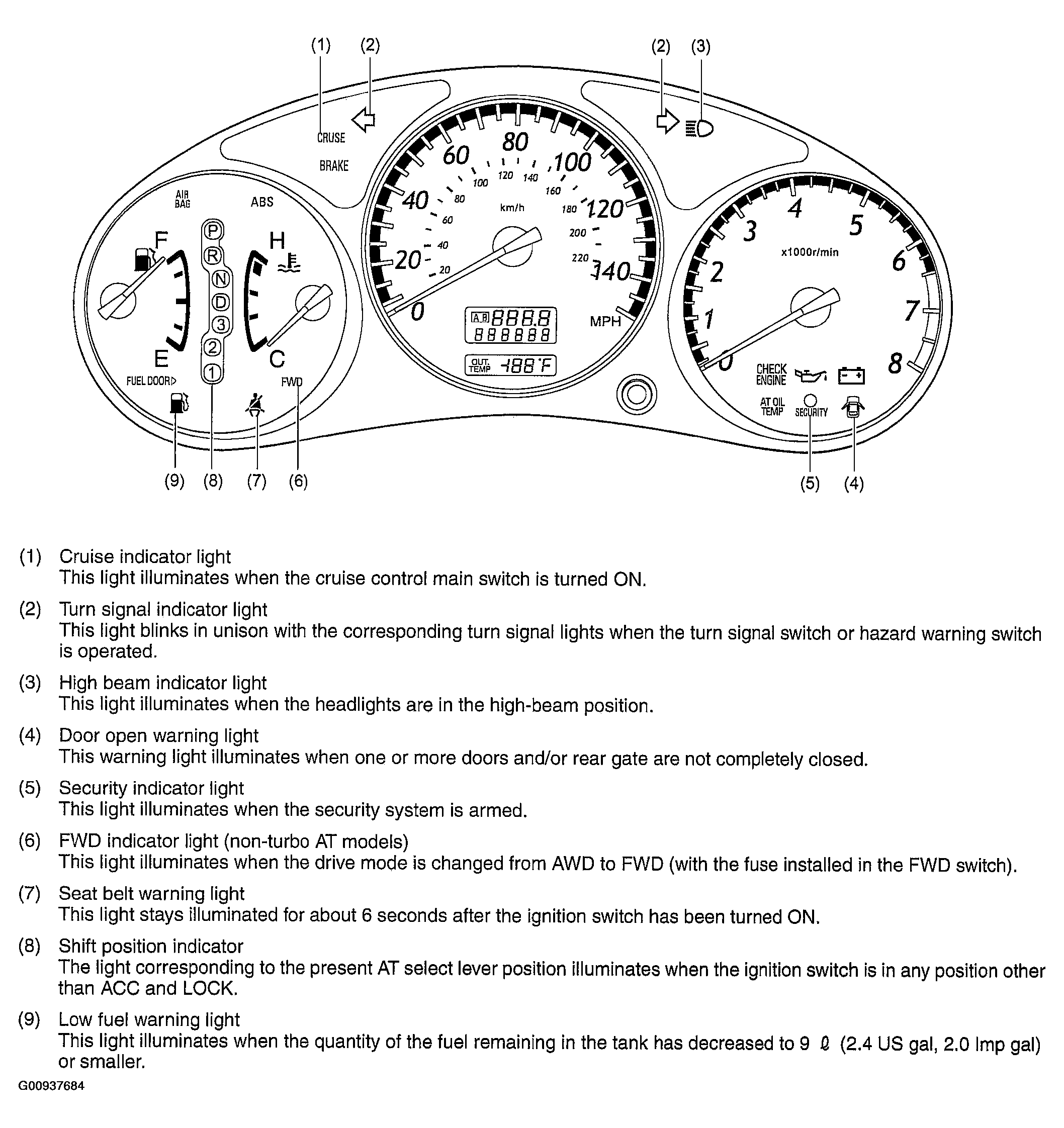

Fig 1: Identifying Telltale (Graphic Monitor)

Courtesy of SUBARU OF AMERICA, INC.

When everything is normal, the telltales should be ON, OFF or in other states as shown below according to ignition switch position.

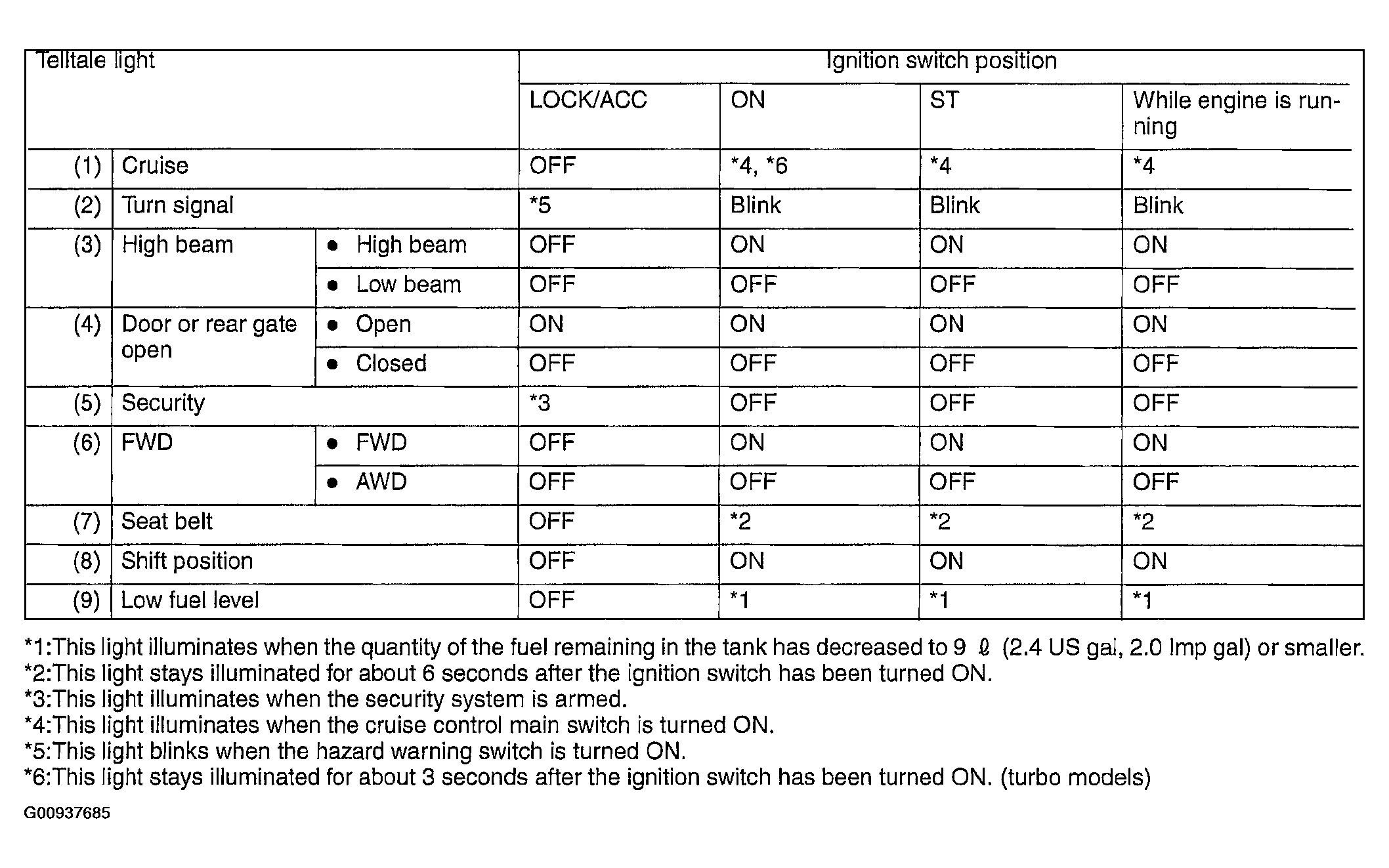

Fig 2: Identifying Telltales Light Specification

Courtesy of SUBARU OF AMERICA, INC.
