LEMON Manuals
: Even more car manuals for everyone
Home
>>
Subaru
>>
2004
>>
Forester XT, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Windows - Mechanism & Function
>>
Power Window
>>
Schematic Drawings
Schematic Drawings

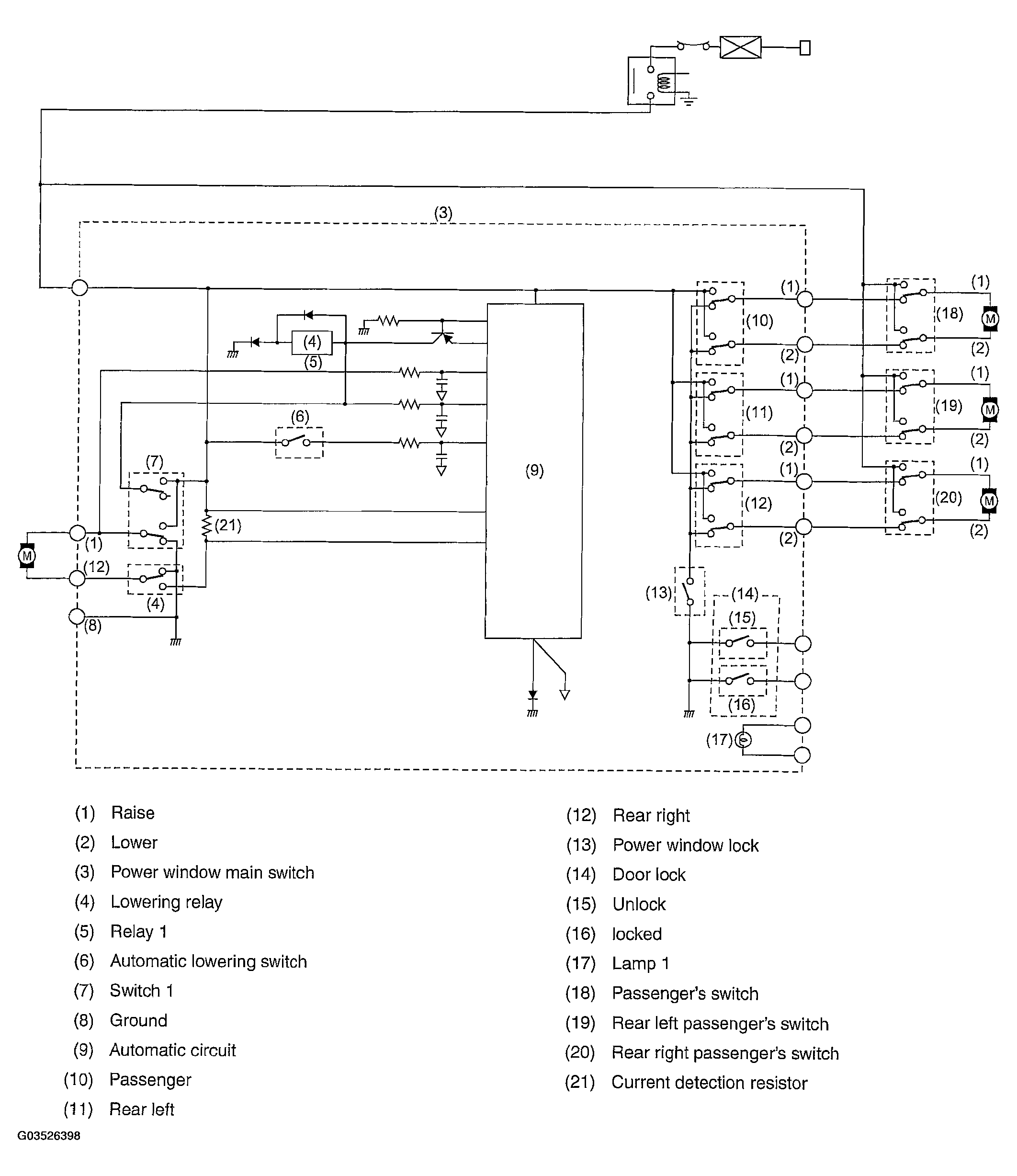

Fig 1: Schematic Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
