Schematic Drawings

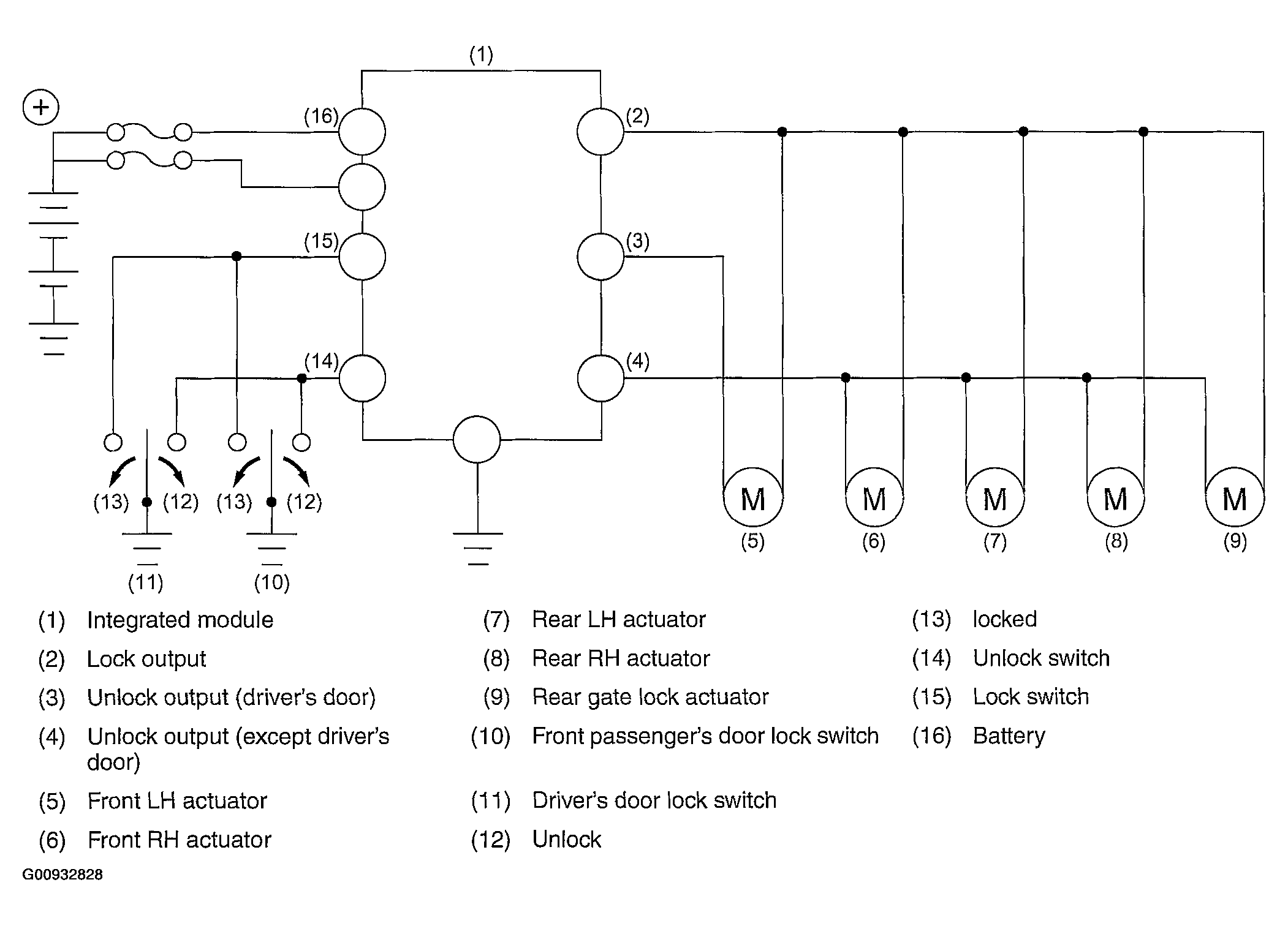

Fig 1: Identifying Power Door Lock Schematic Drawings

G00932828

Courtesy of SUBARU OF AMERICA, INC.
