Scalp Cap: Replacement

  1. Turn the rearview mirror downward.
  2. Insert a thin screw driver, push the clip part of scalp cap, and remove the scalp cap.

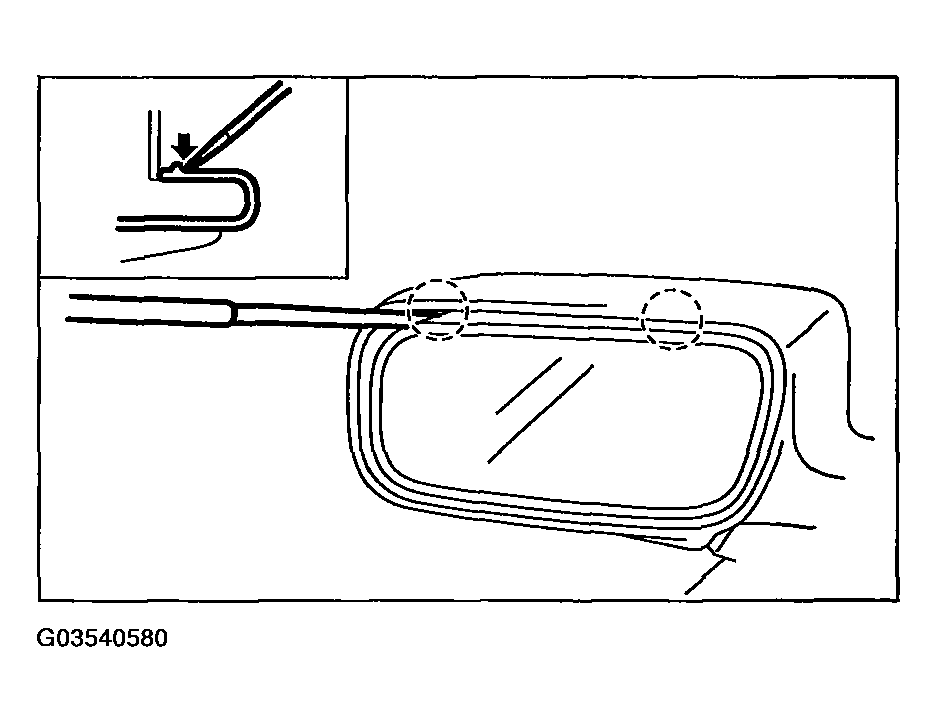

    Fig 1: Pushing Clip Part Of Scalp Cap
    G03540580Courtesy of SUBARU OF AMERICA, INC.
  3. Insert the claw at the bottom of scalp cap into door mirror.

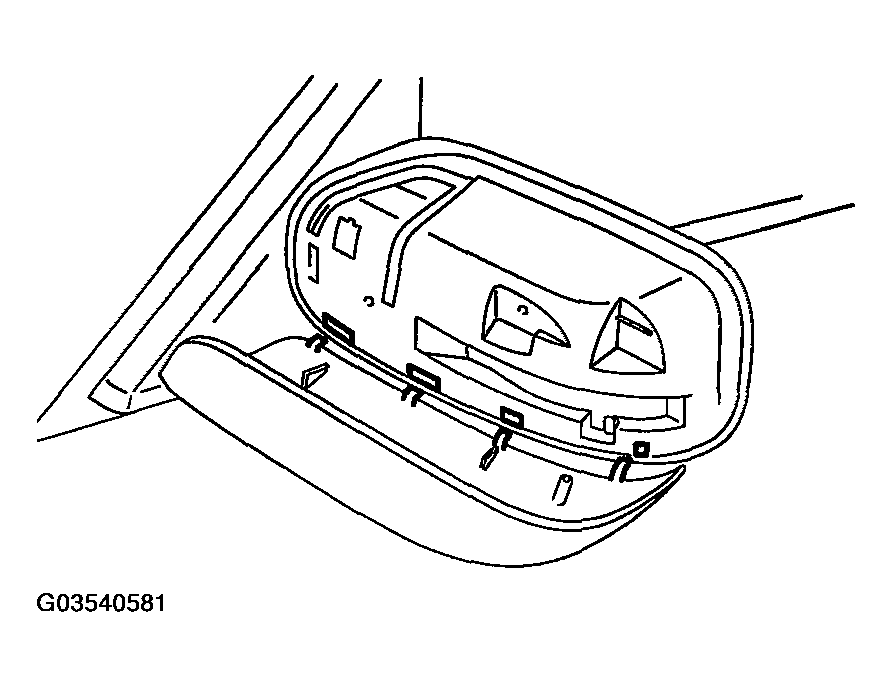

    Fig 2: Inserting Claw At Bottom Of Scalp Cap Into Door Mirror
    G03540581Courtesy of SUBARU OF AMERICA, INC.
  4. Install the scalp cap securely.
