Outer Mirror Assembly: Removal

  1. Remove the scalp cap. < Ref. to REPLACEMENT  . >
  2. Remove the door trim < Ref. to REMOVAL , Front Door Trim .>
  3. Remove the mirror gusset cover.

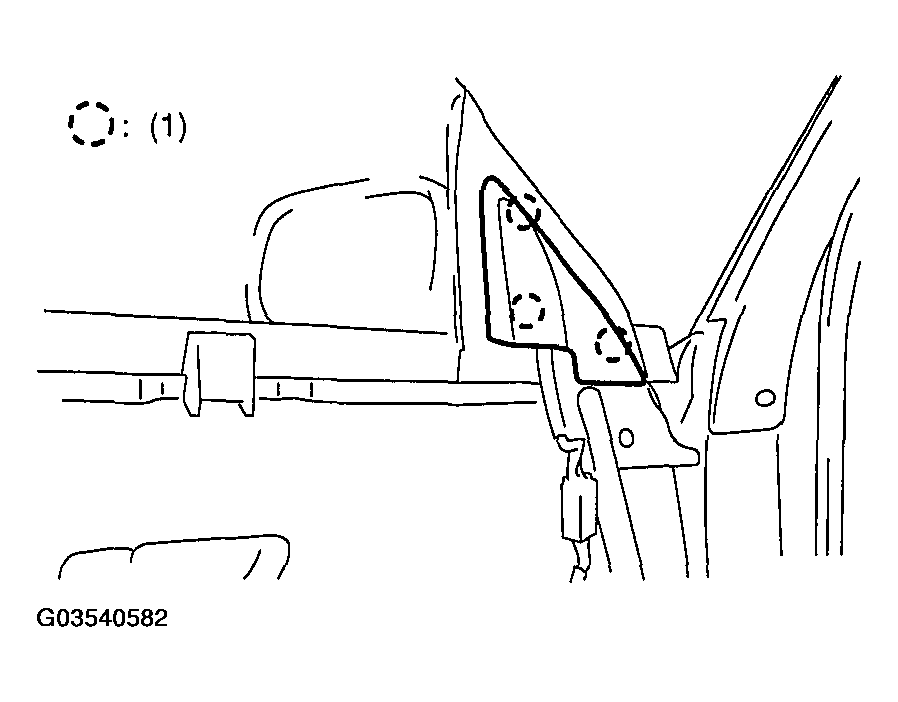

    Fig 1: Identifying Mirror Gusset Cover
    G03540582Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the mirror connector.
  5. Remove the grommet, and then loosen the screws to remove mirror assembly.

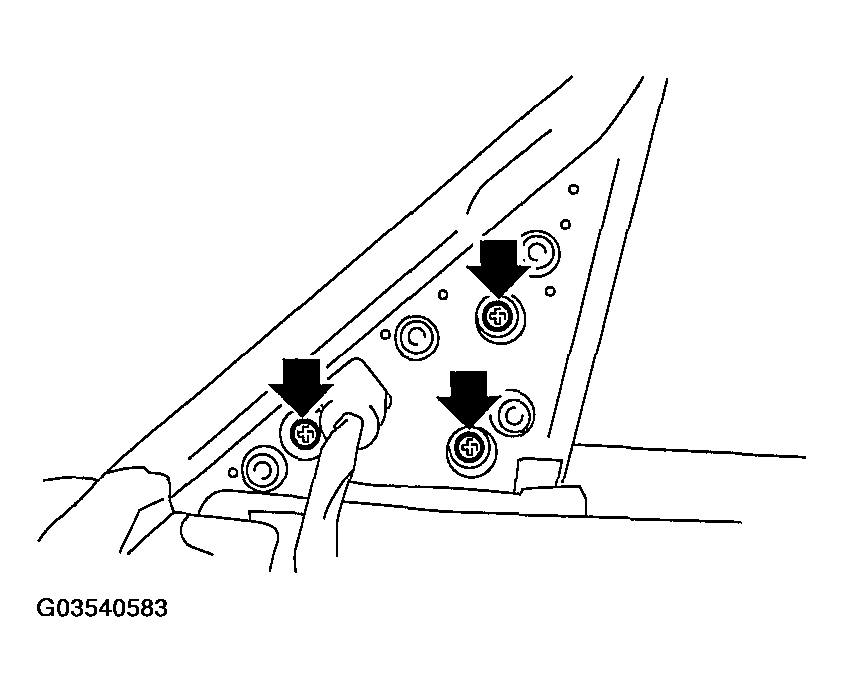

    Fig 2: Disconnecting Mirror Connector
    G03540583Courtesy of SUBARU OF AMERICA, INC.
