Front Regulator and Motor Assembly: Removal

Remove the door glass. < Ref. to REMOVAL . >
Loosen the nuts to remove rear sash.

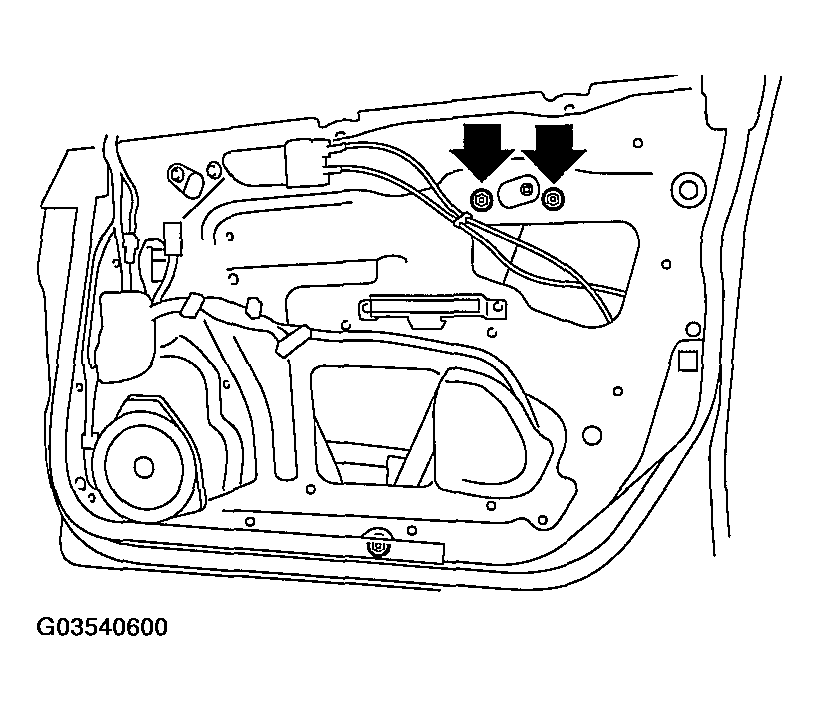

Fig 1: Identifying Rear Sash Nuts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the motor connector.
Loosen the four bolts and two nuts to remove regulator assembly.

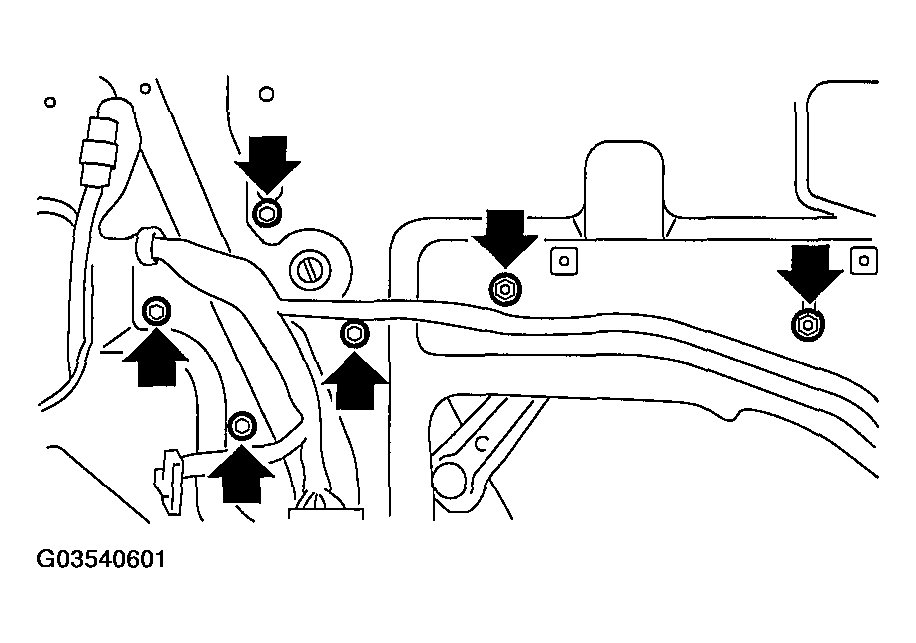

Fig 2: Loosening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screw to remove motor assembly.

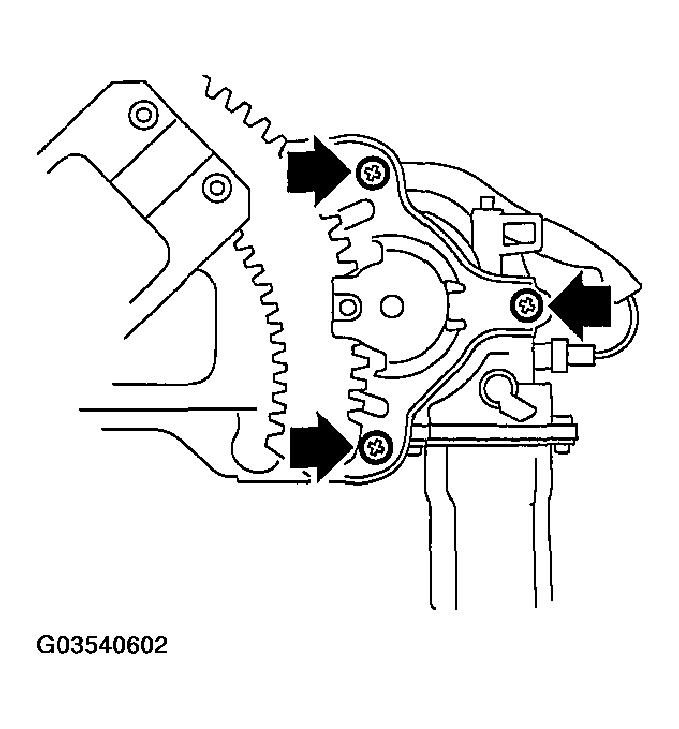

Fig 3: Identifying Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
