Cruise Control System: Actuator: Inspection

Measure the cruise control actuator resistance.

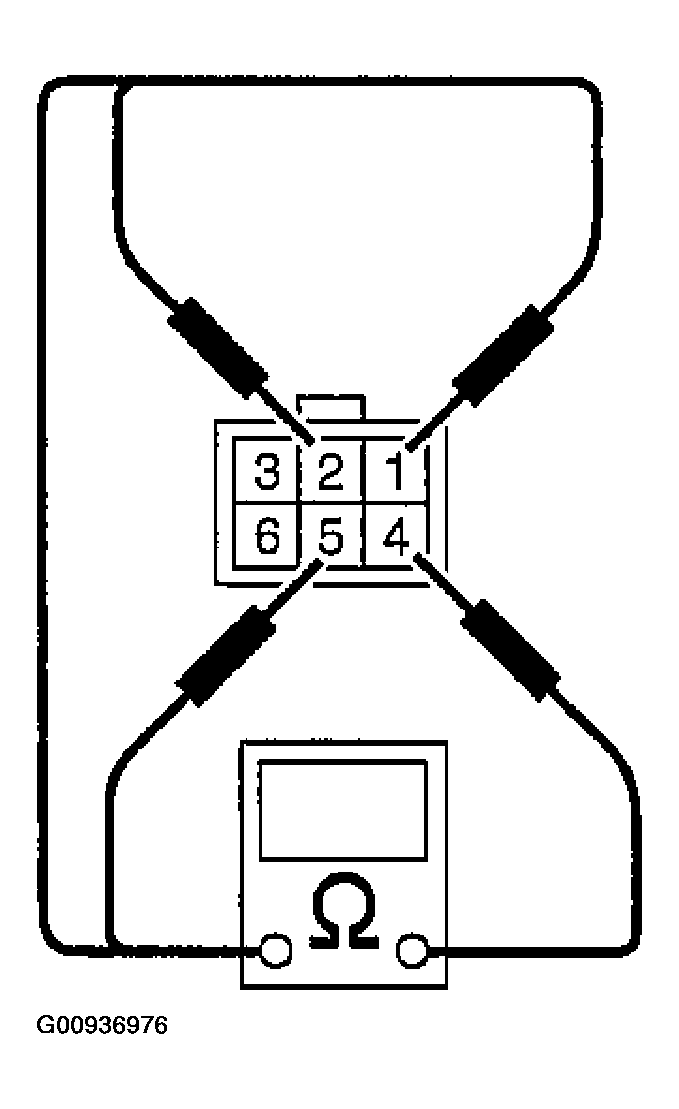

Fig 1: Measuring Cruise Control Actuator Resistance

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Terminal Specification

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the cruise control actuator.
