Check Engine Control Module (ECM)

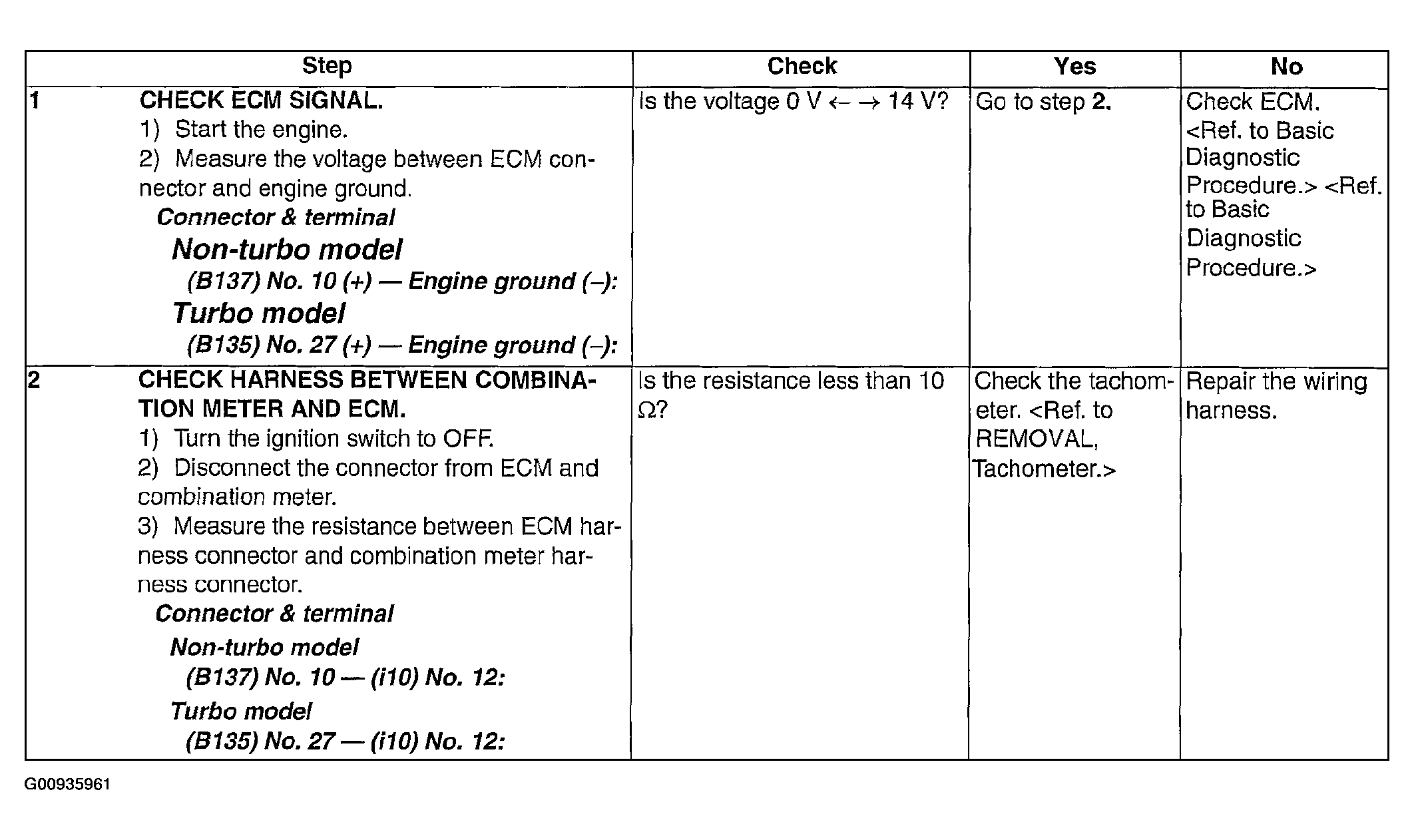

Fig 1: Check Engine Control Module (ECM) Chart
G00935961Courtesy of SUBARU OF AMERICA, INC.
