Check Output Signal To Body Integrated Module

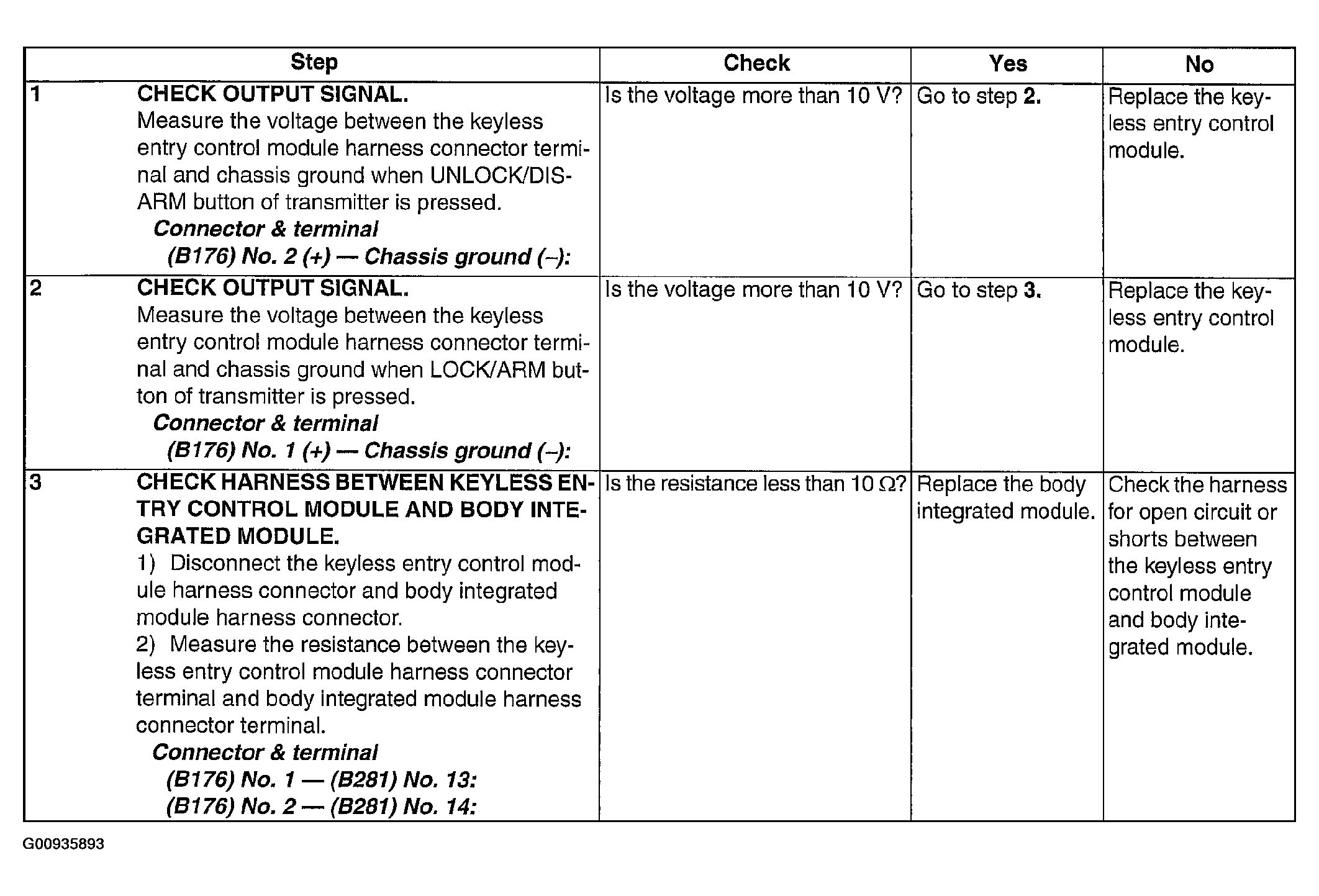

Fig 1: Check Output Signal To Body Integrated Module Chart

G00935893

Courtesy of SUBARU OF AMERICA, INC.
