Check Key Warning Switch
Check Key Warning Switch

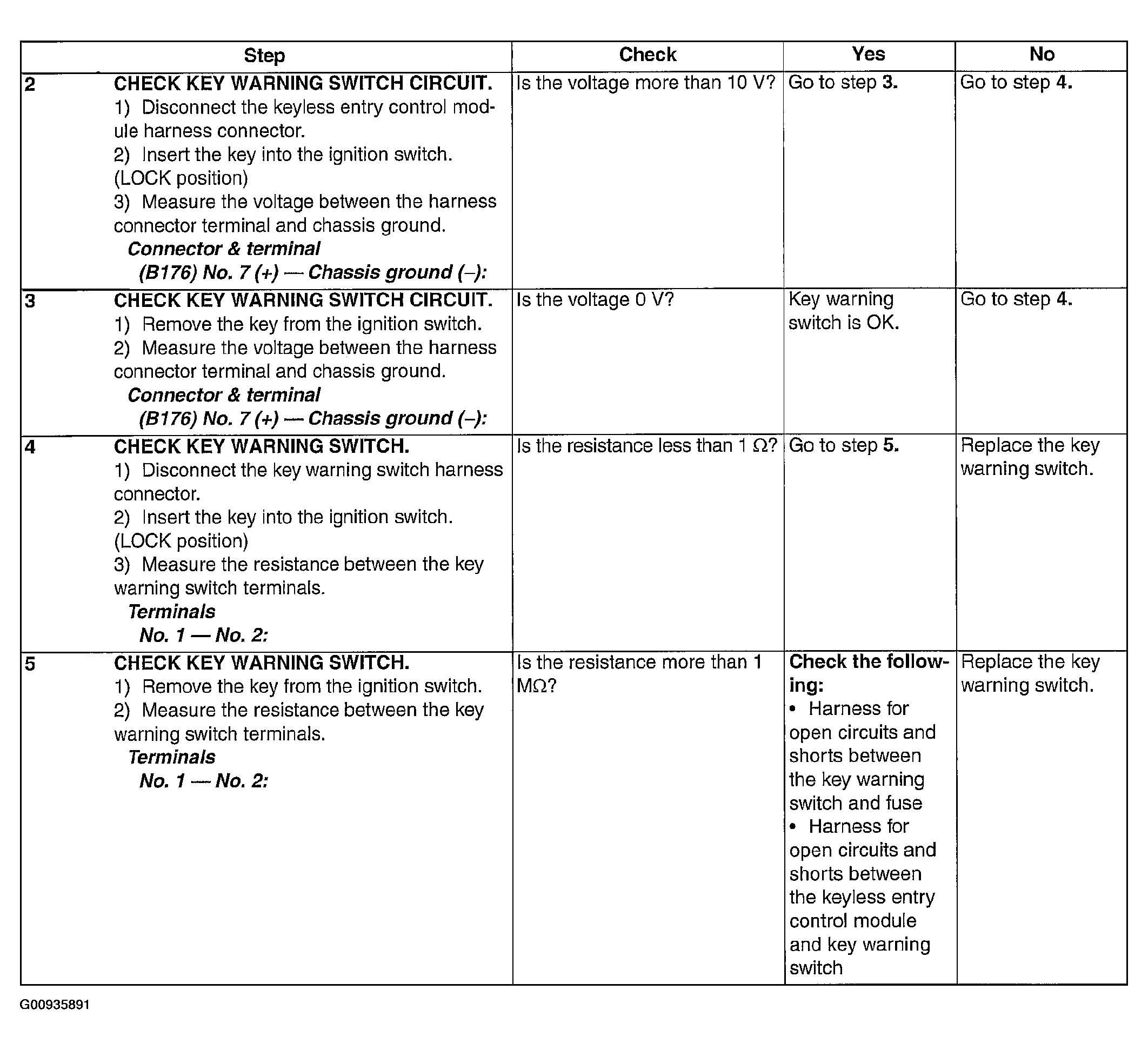

Fig 1: Check Key Warning Switch Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Check Key Warning Switch Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
