M/T Gear Shift Lever
M/T Gear Shift Lever

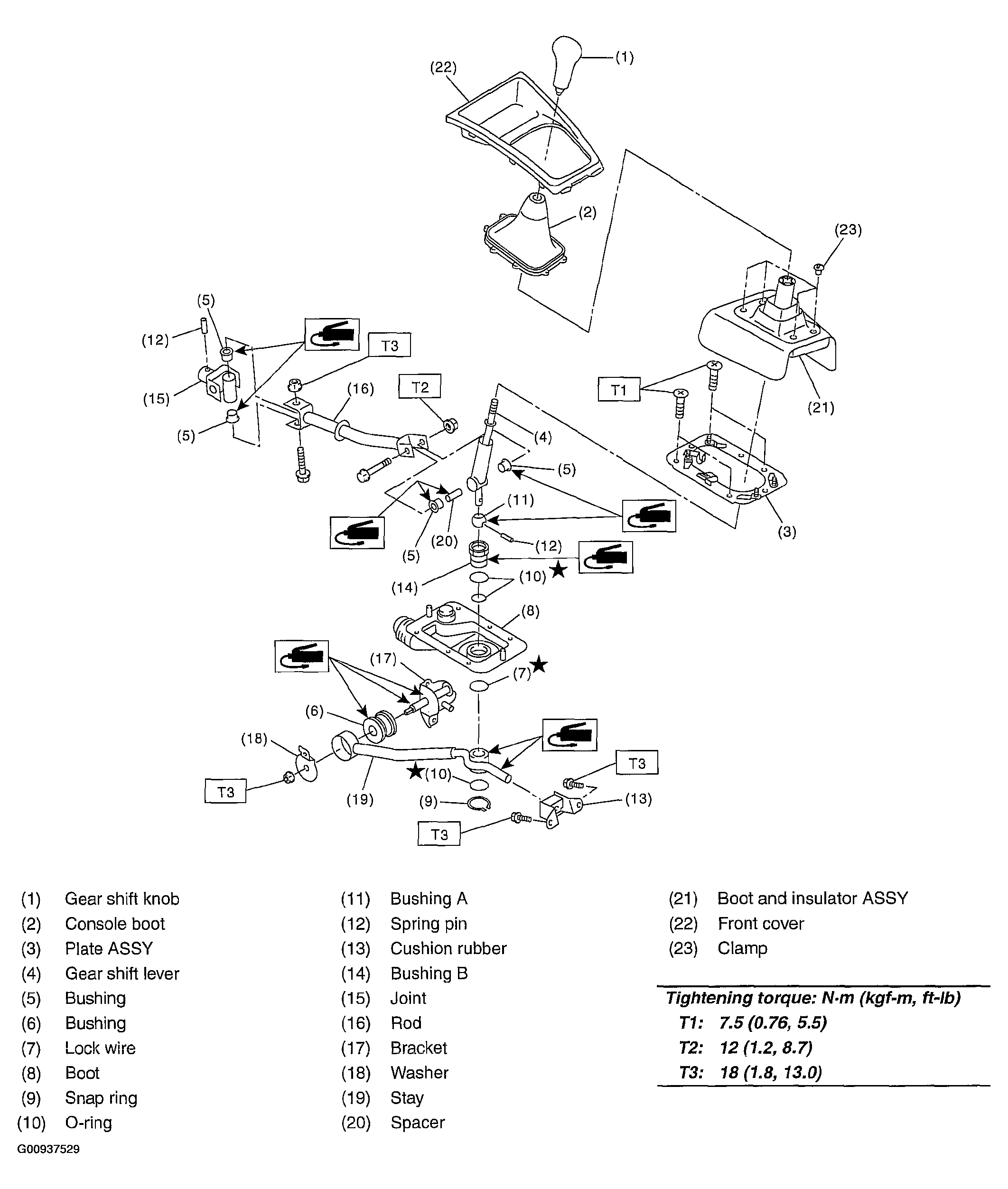

Fig 1: Exploded View Of M/T Gear Shift Lever With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
