A/T Shift Lock System: Wiring Diagram

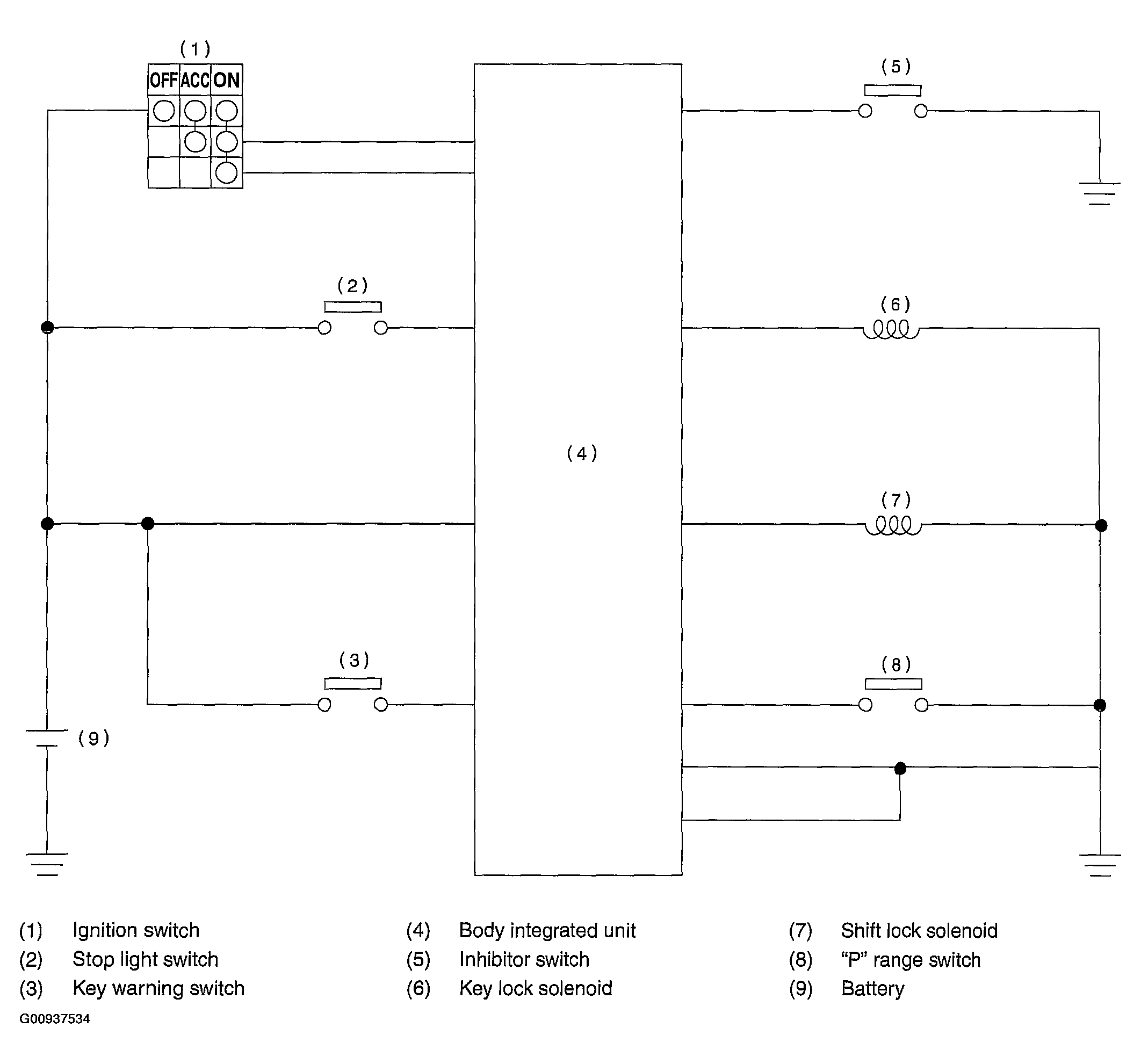

Fig 1: Wiring Diagram

G00937534

Courtesy of SUBARU OF AMERICA, INC.
