A/T Shift Lock Solenoid and "P" Range Switch: Inspection

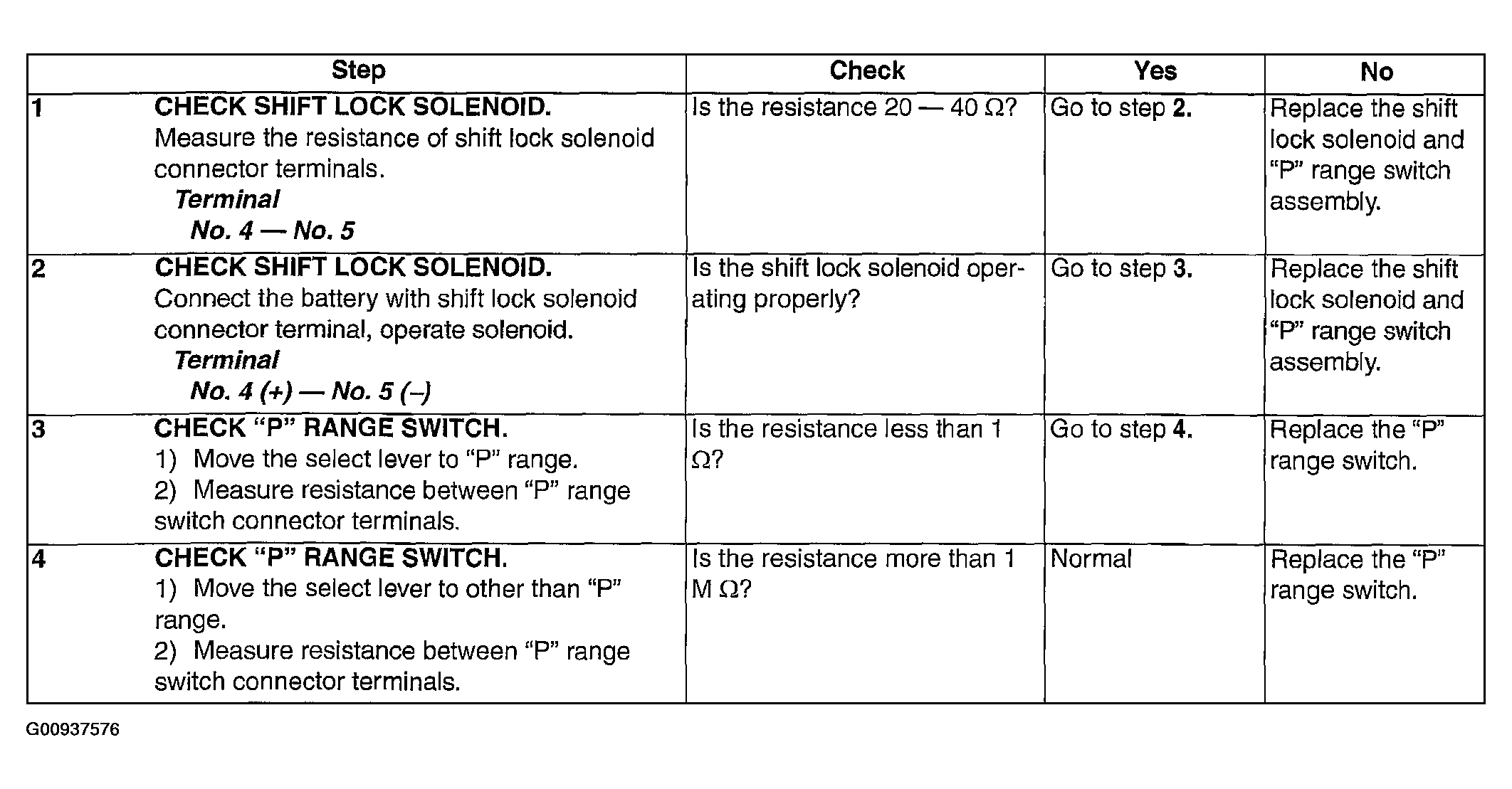

Fig 1: Inspection Chart

G00937576

Courtesy of SUBARU OF AMERICA, INC.
