Torque Converter Clutch Assembly: Removal

  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL . >
  2. Extract the torque converter clutch assembly and oil pump shaft horizontally.
    CAUTION: Be careful not to scratch the bushing inside the oil pump shaft.

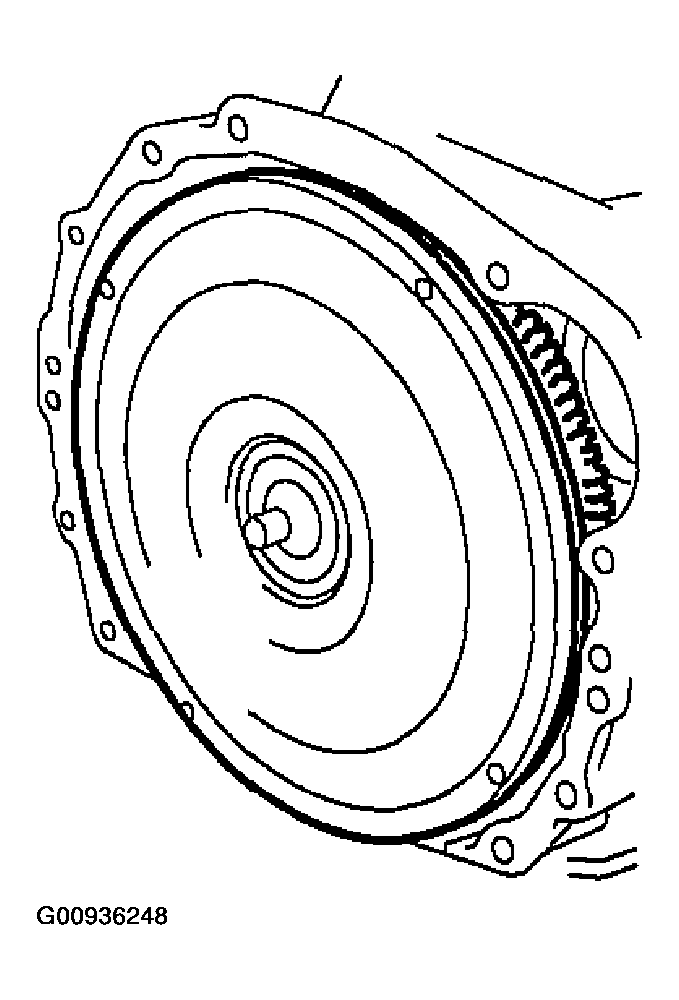

    Fig 1: Identifying Torque Converter Clutch Assembly
    G00936248Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the input shaft.
    NOTE: When the torque converter clutch assembly is removed, the input shaft will come out.

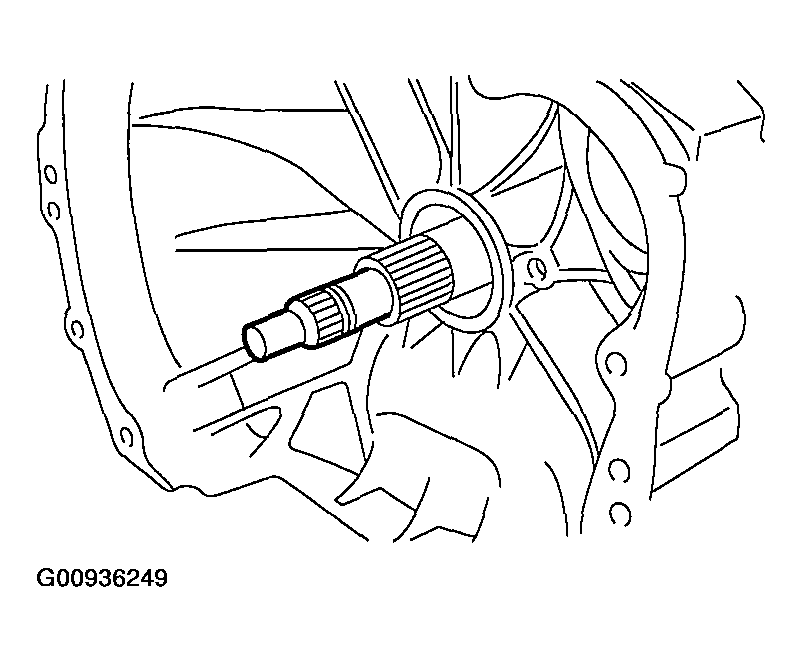

    Fig 2: Identifying Clip & Torque Converter Clutch Assembly
    G00936249Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the clip from torque converter clutch assembly.
