Reduction Drive Gear: Removal

  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL . >
  2. Remove rear vehicle speed sensor, and separate the transmission case and extension case. < Ref. to REMOVAL . >
  3. Remove the reduction driven gear. < Ref. to REMOVAL . >
  4. Using ST, extract the reduction drive gear assembly.

    ST1 499737100 PULLER SET

    ST2 899524100 PULLER SET

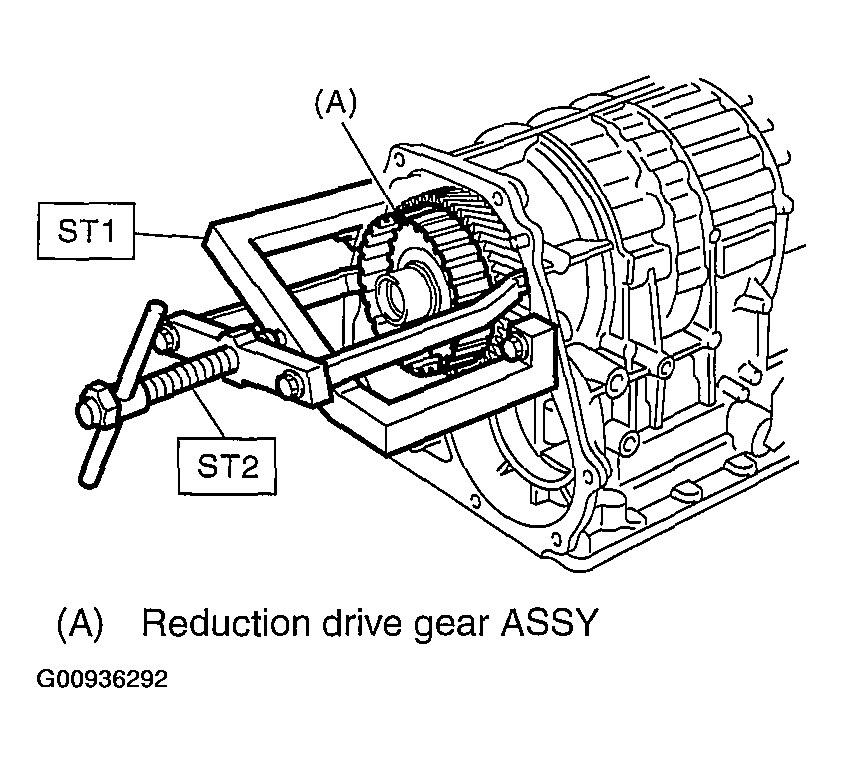

    Fig 1: Using ST, Extracting Reduction Drive Gear Assembly
    G00936292Courtesy of SUBARU OF AMERICA, INC.
