Hydraulic Control And Lubrication

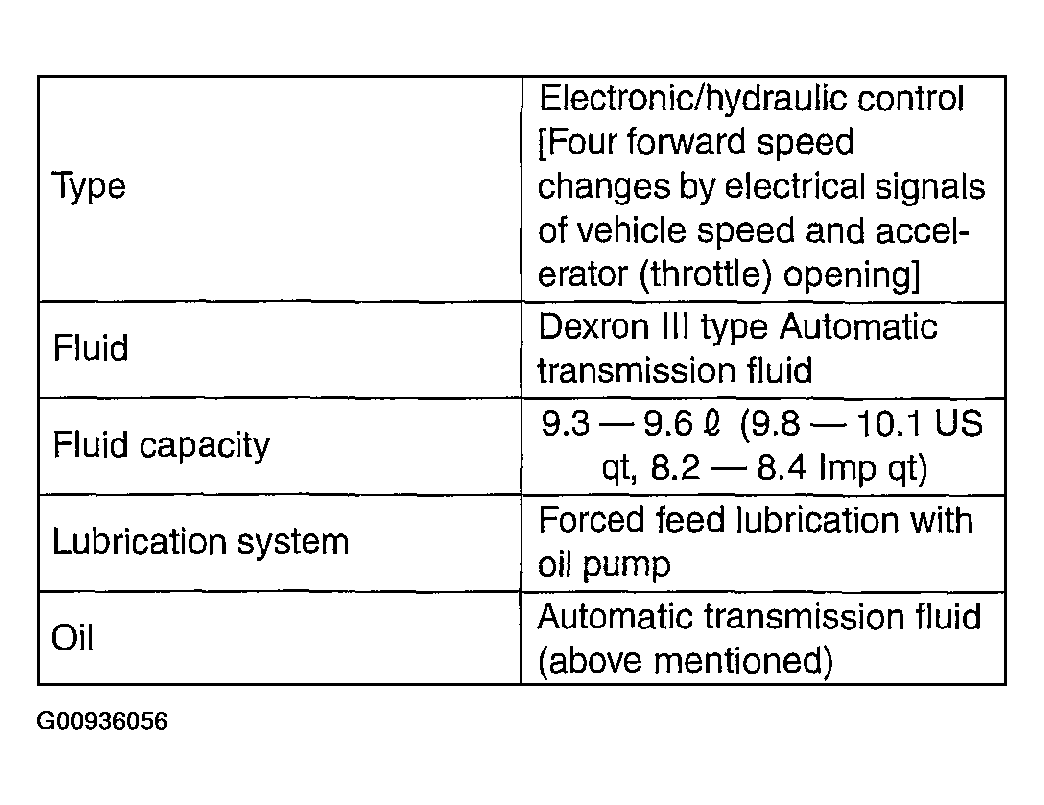

Fig 1: Hydraulic Control And Lubrication Specifications Chart

G00936056

Courtesy of SUBARU OF AMERICA, INC.
