Drive Pinion Shaft: Assembly
- Measure dimension "A" of the drive pinion shaft.
- ST 398643600 GAUGE
- Using a press, force-fit a new roller bearing in position.NOTE: If too much pressure is applied, the roller bearing will not turn easily.
- After fitting a new O-ring to the drive pinion shaft, attach the drive pinion collar to the drive pinion shaft.
- Install the lock washer to drive pinion shaft in proper direction.
- Tighten a new lock nut with ST1, ST2 and ST3. Calculate lock washer and lock nut specifications using the following formula.
T2 = L2/(L1 + L2) x T1
- T1: 116 N.m (11.8 kgf-m, 85.3 ft-lb)
- [Required torque setting]
- T2: Tightening torque
- L1: ST2 length 0.072 m (2.83 in)
- L2: Torque wrench length
- Example:
- ST1 498937110 HOLDER
- ST2 499787700 WRENCH
- ST3 499787500 ADAPTER
NOTE: Install ST2 to torque wrench as straight as possible. - Measure the starting torque of the bearing. Make sure the starting torque is within the specified range. If out of the allowable range, replace the roller bearing.
- Starting torque: 7.6 - 38.1 N (0.776 - 3.88 kgf, 1.7 - 8.6 lb)
- Stake the lock nut securely at two places.
- Measure dimension "B" of the drive pinion shaft.
- ST 398643600 GAUGE
- The thickness "t" (mm) of the drive pinion shim.
t = 6.5+/-0.0625 - (B - A)

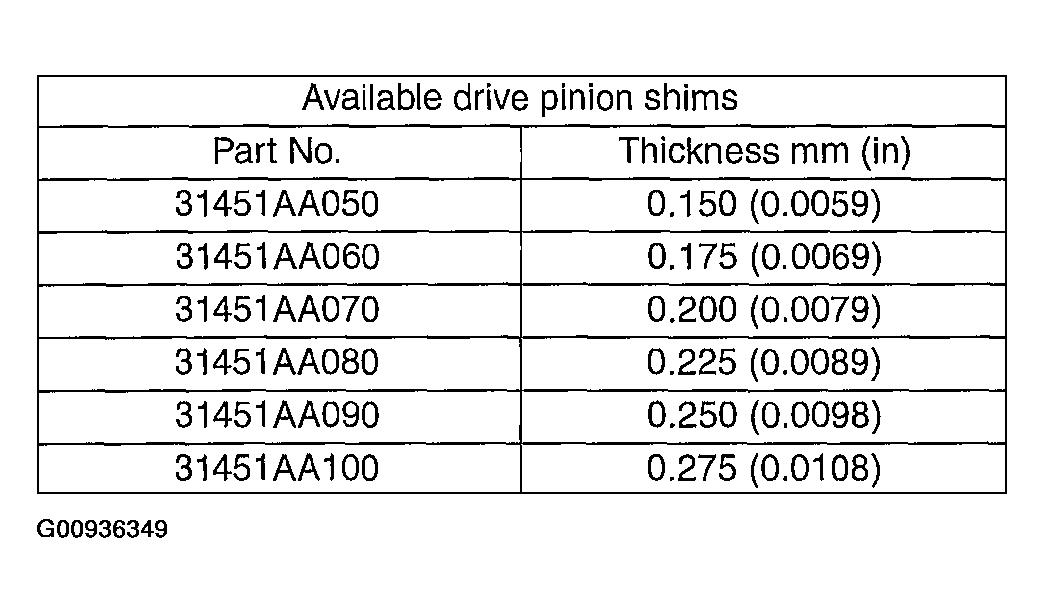

- Select three or less shims from following table.
