Non-Turbo Models

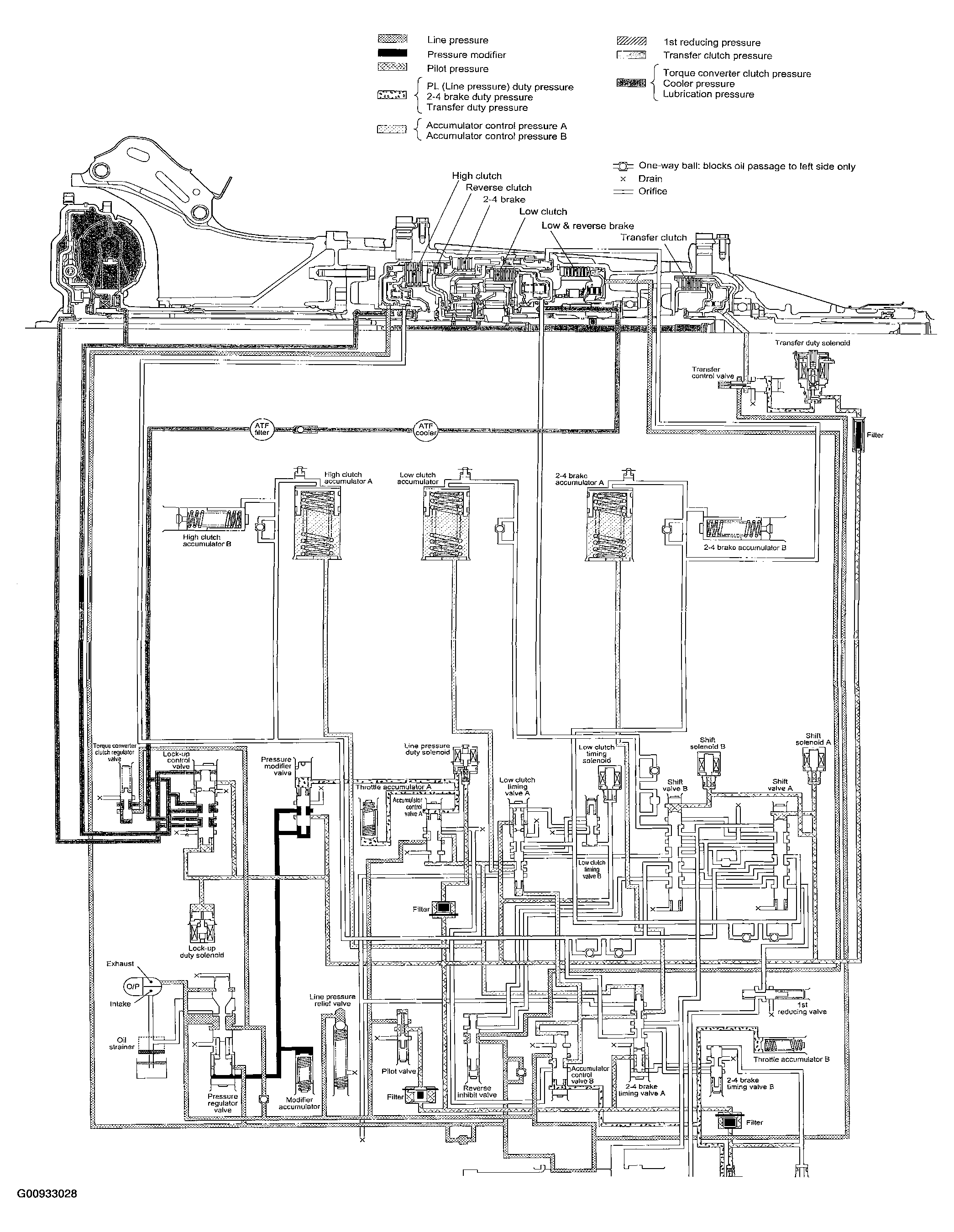

Fig 1: Schematic Diagram R Range - Non-Turbo Models

G00933028

Courtesy of SUBARU OF AMERICA, INC.
