N-R lock operating conditions

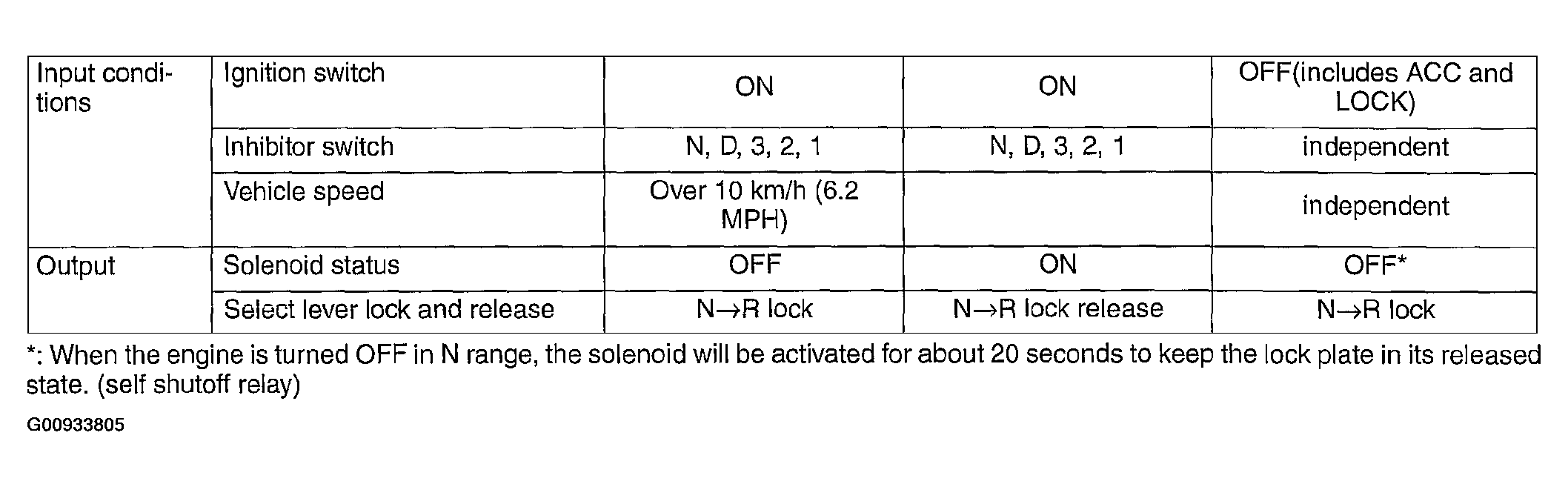

Fig 1: N-R Lock Operating Conditions Chart
G00933805Courtesy of SUBARU OF AMERICA, INC.
