Trouble Shooting: Notes

WARNING: This page is about a different car, the 2003 Subaru Forester and 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

To trouble shoot moon roof control system, see Fig 1 .

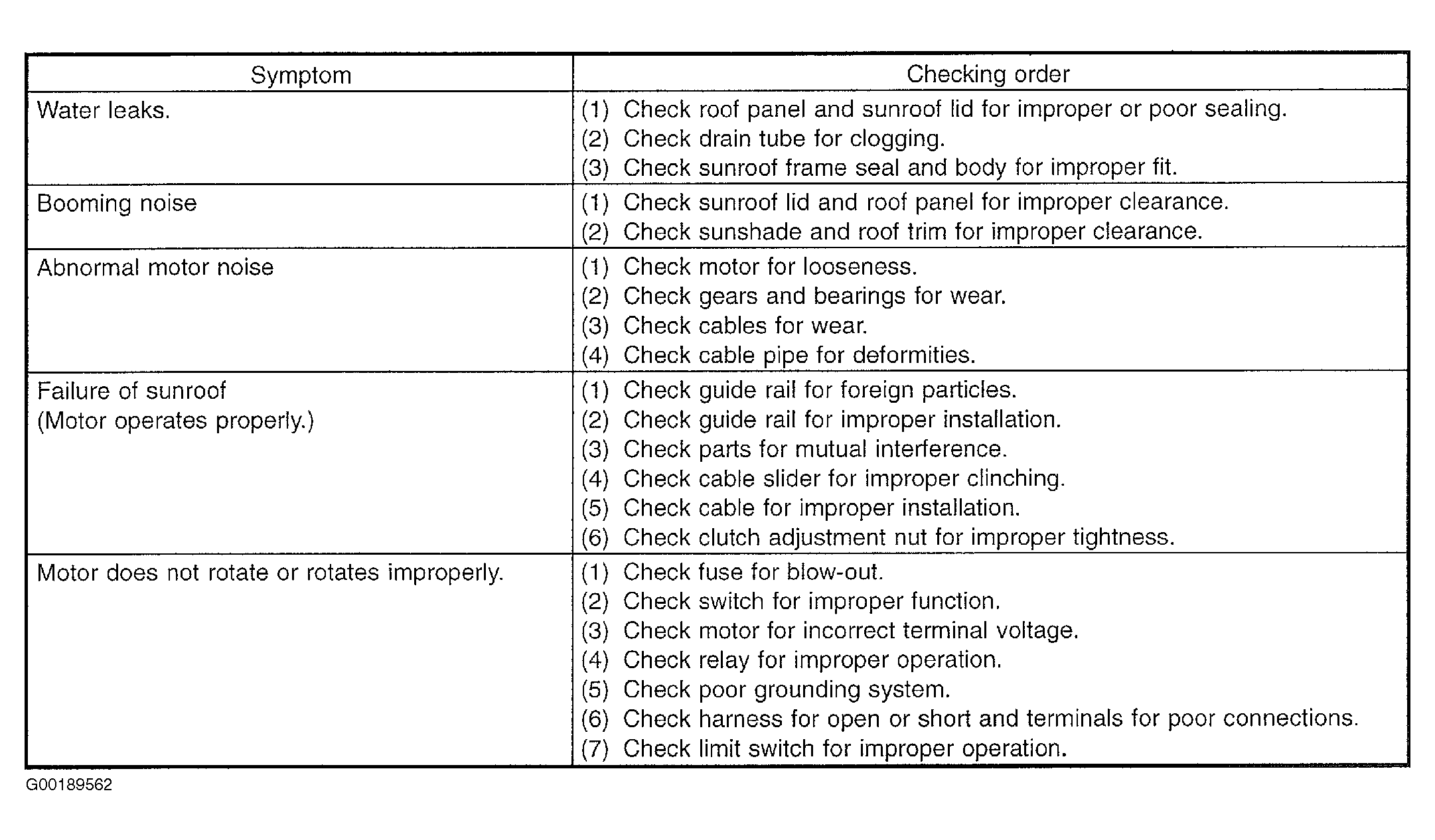

Fig 1: Trouble Shooting Moon Roof Control System
G00189562Courtesy of SUBARU OF AMERICA, INC.
