Component Locations

WARNING: This page is about a different car, the 2003 Subaru Forester and 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

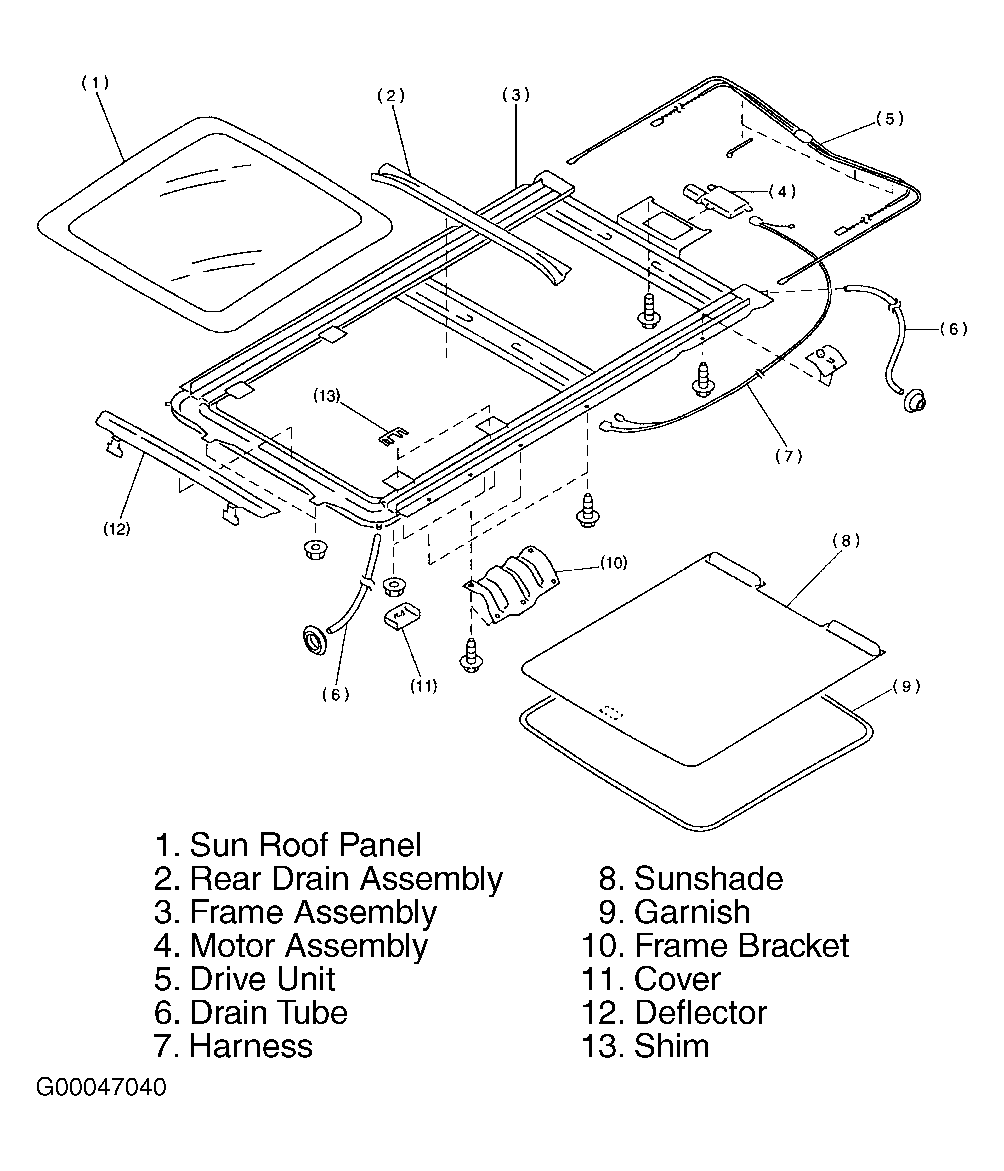

Fig 1: Exploded View of Moon Roof

Courtesy of SUBARU OF AMERICA,INC.
