Instrument Panel Assembly: Installation

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

CAUTION:
  • Be careful not to snag the harness.
  • Make sure to connect the harness connector.
NOTE: When setting the instrument panel into position, push the hook into grommet (A) on the body panel.

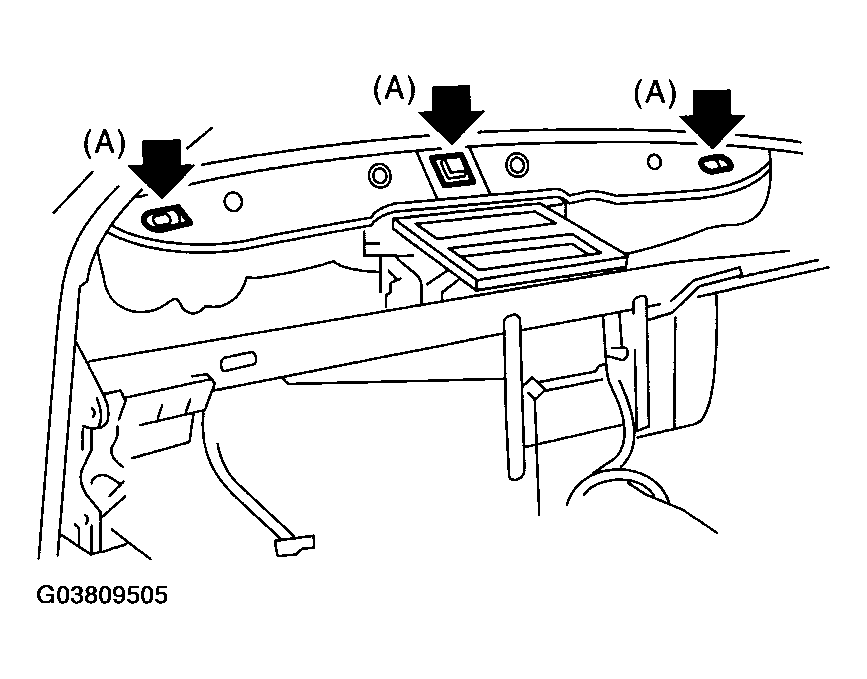

Fig 1: Pushing Hook Into Grommet (A) On Body Panel
G03809505Courtesy of SUBARU OF AMERICA, INC.
