Console Box: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the console front cover.

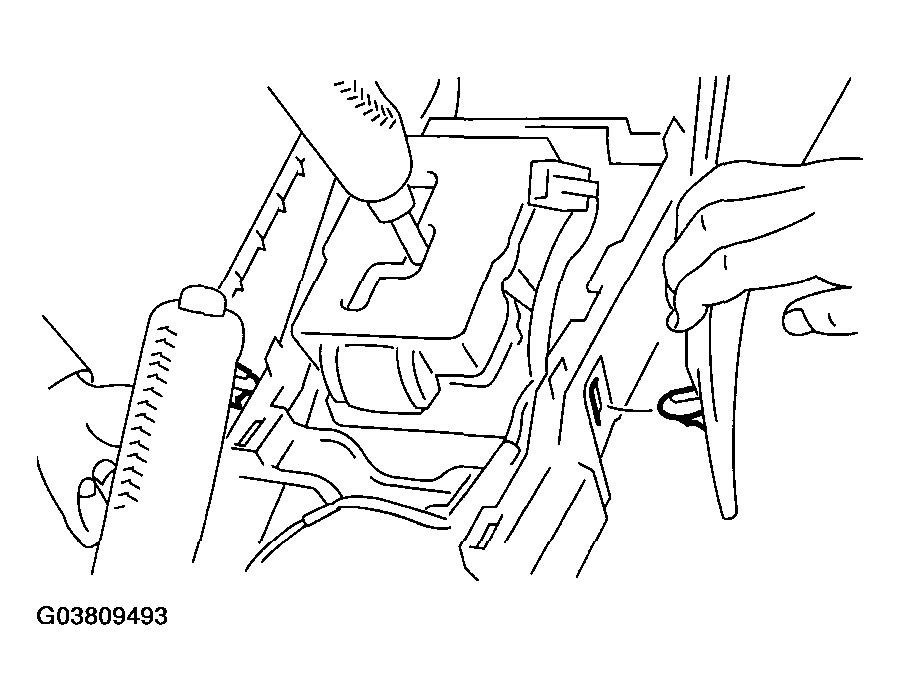

Fig 1: Removing Console Front Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift knob (MT model).
Loosen the screws to remove console cover.

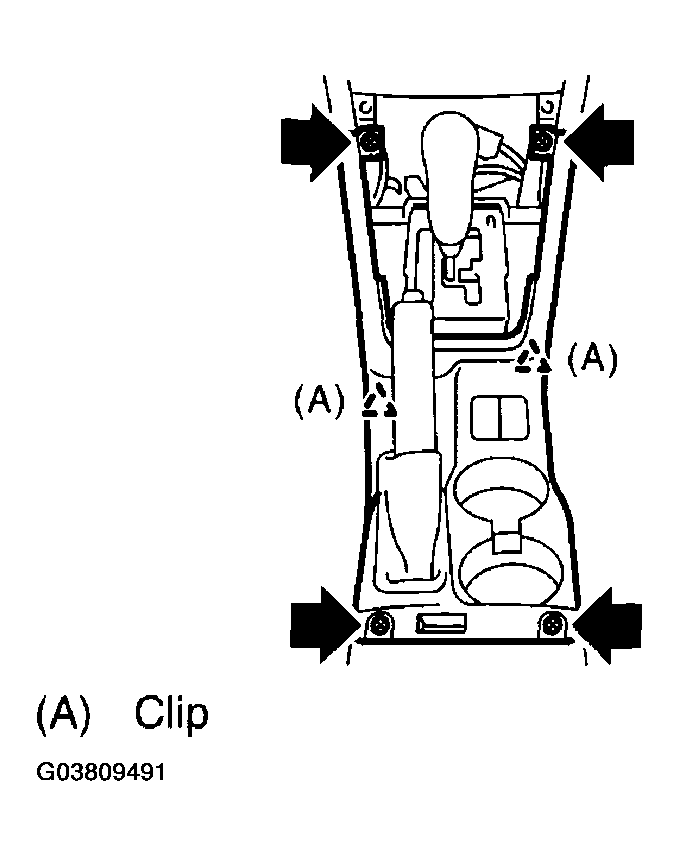

Fig 2: Loosening Screws To Remove Console Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws.

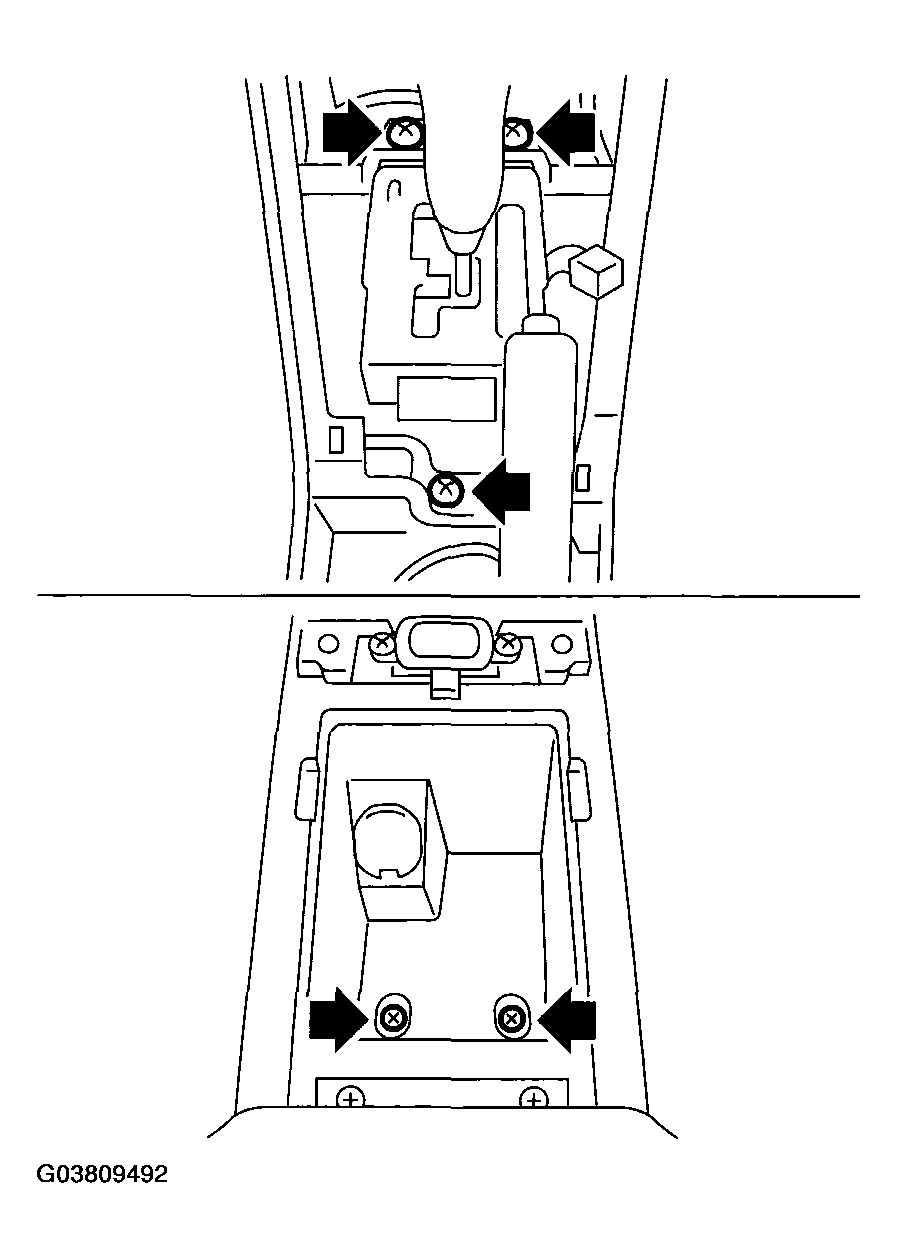

Fig 3: Loosening Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the hook pawl of console side panel to remove console box.

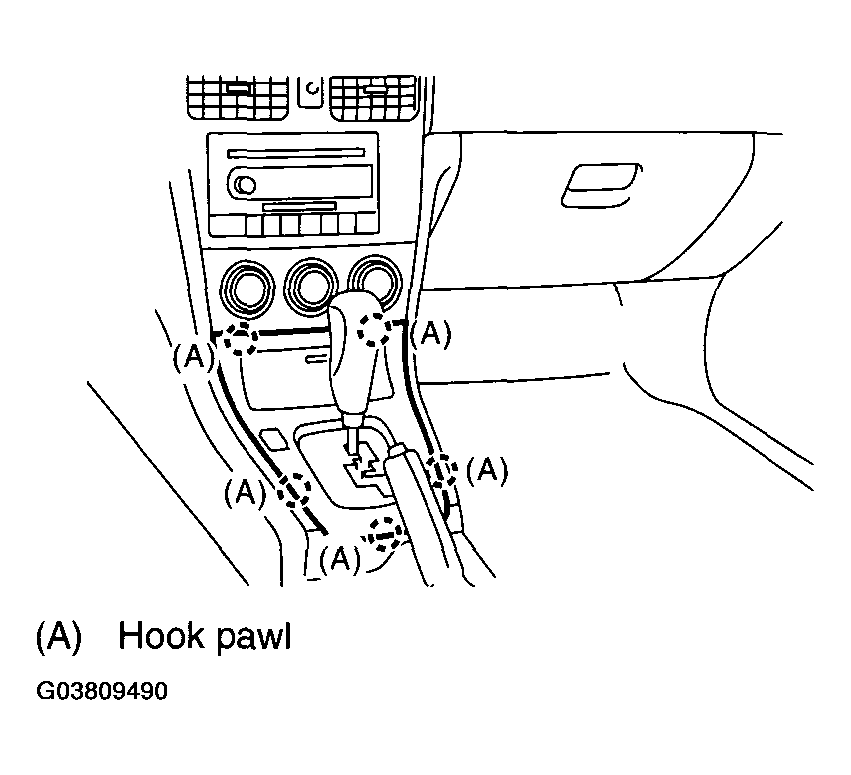

Fig 4: Removing Hook Pawl Of Console Side Panel To Remove Console Box
Courtesy of SUBARU OF AMERICA, INC.
