Passenger's Airbag Module: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to "CAUTION " in General Description before handing the airbag module.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery, and wait for at least 20 seconds before starting work.
  3. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  4. Disconnect the airbag connector.
  5. Remove the three bolts, and then carefully remove the airbag module.

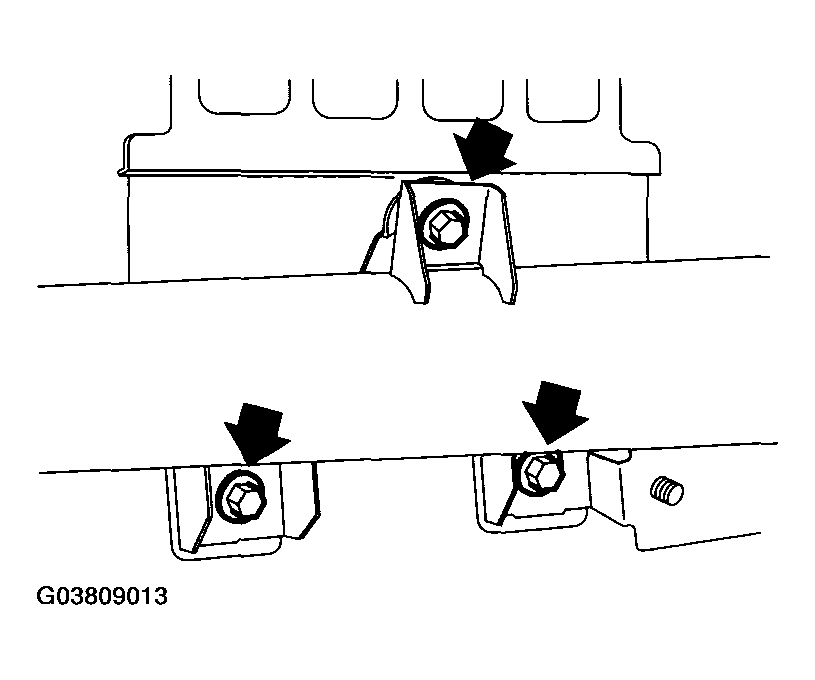

    Fig 1: Removing Three Bolts And Airbag Module
    G03809013Courtesy of SUBARU OF AMERICA, INC.
  6. Refer to "CAUTION " for handling of a removed airbag module.
