Driver's Airbag Module

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for the following, and replace damaged parts with new parts.
    • Airbag module is cracked or deformed.
    • Harness or connector is cracked, deformed or open. Lead wire is exposed.
    • The module surface is fouled with grease, oil, water or cleaning solvent.
  2. When installing a new driver's airbag module, check the following. If necessary, install a new airbag module and steering wheel.
    • The steering wheel is in the way, making it difficult to install the airbag module.
    • The clearance between the driver's airbag module and steering wheel is not constant.
    • The steering wheel deformation in axial and radial directions exceed limits.

      Specifications:

      Height deflection A

      Less than 6 mm (0.24 in)

      O.D. deflection L

      Less than 17 mm (0.67 in)

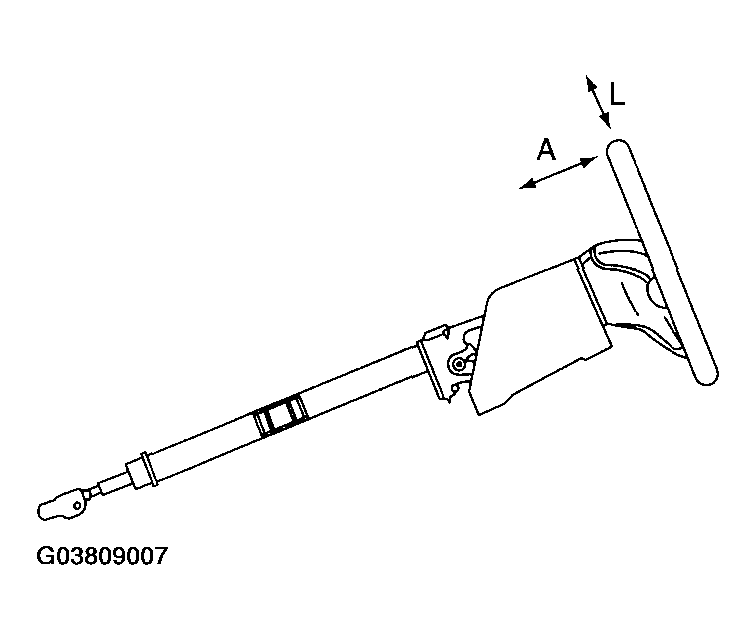

      Fig 1: Identifying Height Deflection A Of Driver'S Airbag Module
      G03809007Courtesy of SUBARU OF AMERICA, INC.
